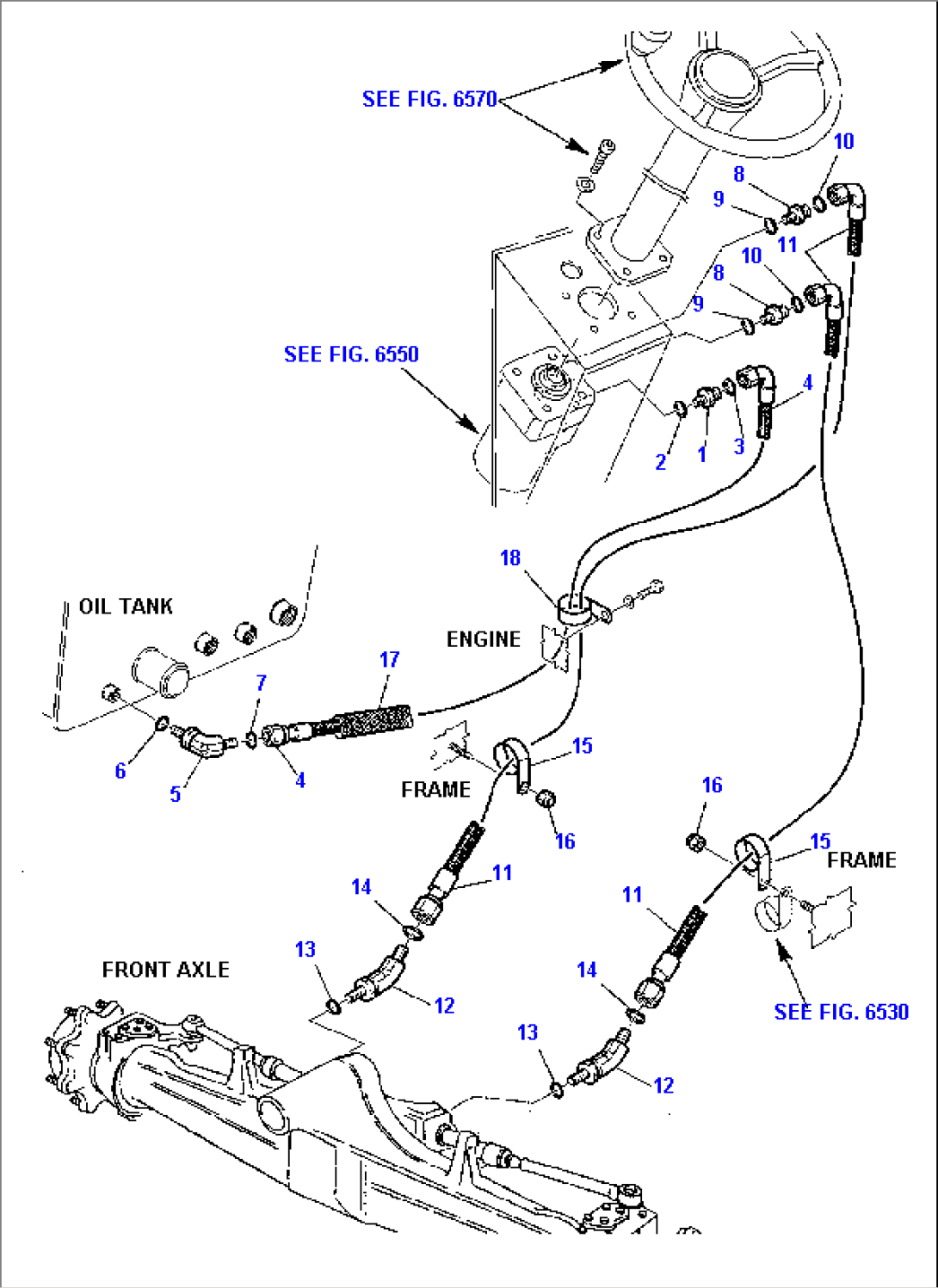

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 500380110 | UNION | 150F50020- | |
| 2 | 855051617 | O-RING | 150F50020- | |
| 3 | 855051016 | O-RING | 150F50020- | |
| 4 | 392405025 | HOSE | 150F50020- | |
| 5 | 500380046 | UNION | 150F50020- | |
| 6 | 855051617 | O-RING | 150F50020- | |
| 7 | 855051016 | O-RING | 150F50020- | |
| 8 | 500380105 | UNION | 150F50020- | |
| 9 | 855051617 | O-RING | 150F50020- | |
| 10 | 855051012 | O-RING | 150F50020- | |
| 11 | 392865001 | HOSE | 150F50020- | |
| 12 | 500380353 | UNION | 150F50020- | |
| 13 | 855670002 | O-RING | 150F50020- | |
| 14 | 855051012 | O-RING | 150F50020- | |
| 15 | 802660500 | COLLAR | 150F50020- | |
| 16 | 801880208 | SELF-LOCKING NUT | 150F50020- | |
| 17 | 885220341 | PROTECTION | 150F50020- | |
| 18 | 802660027 | COLLAR | 150F50020- | |
| SEE FIG. 6530 | ||||
| SEE FIG. 6550 | ||||
| SEE FIG. 6570 |
