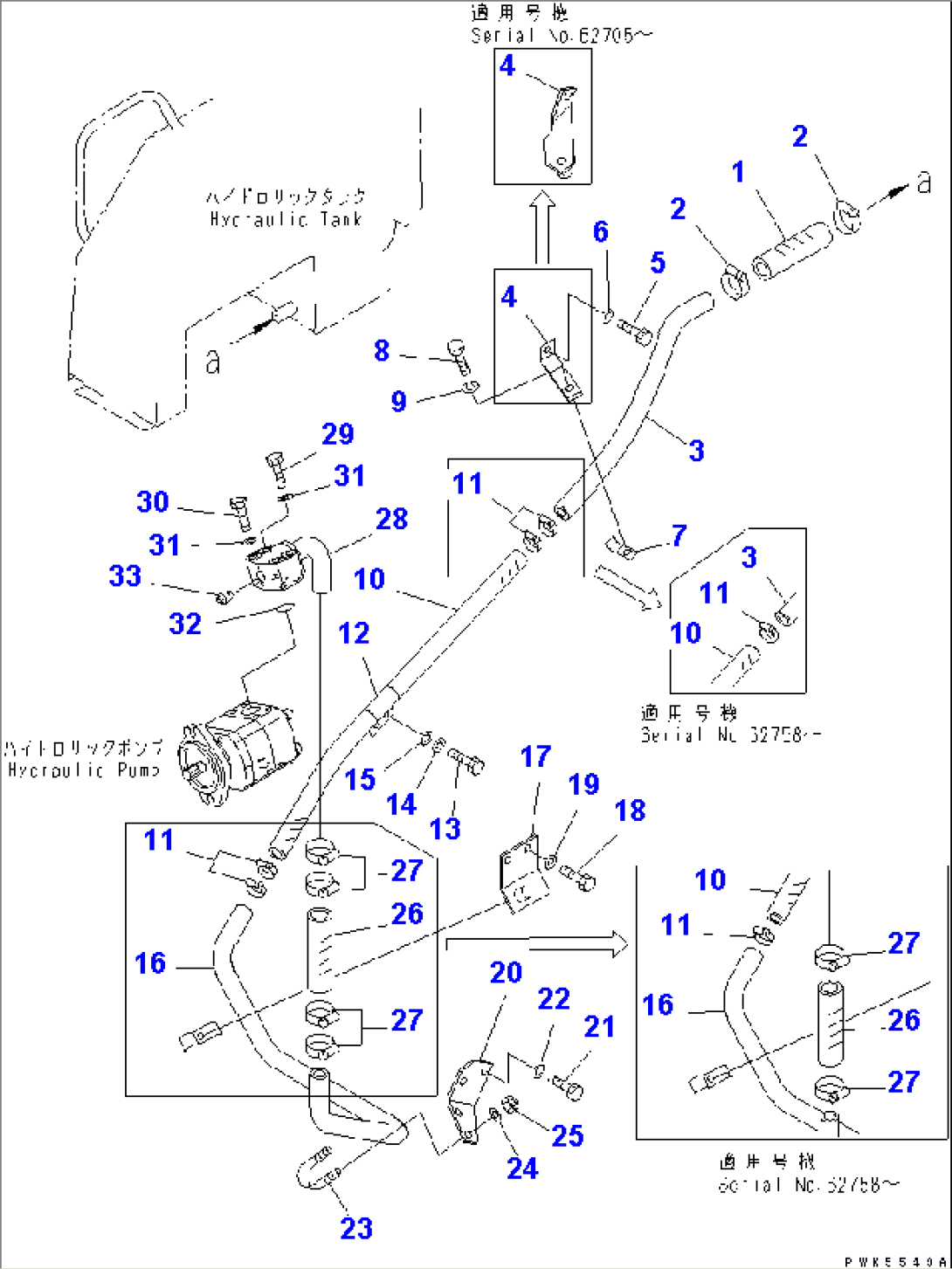

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07260-22609 | HOSE | 62454- | |
| 2 | 07289-00035 | CLAMP | 62783- | |
| 07289-00045 | CLAMP | 62758-62782 | ||
| 07281-00419 | CLAMP | 62454-62757 | ||
| 3 | 103-62-31180 | TUBE | 62454- | |
| 4 | 103-62-31193 | BRACKET | 62705- | |
| \0\103-62-31192 | CLAMP | 62454-62704 | ||
| 5 | 01010-81016 | BOLT | 62454- | |
| 6 | 01602-21030 | WASHER | 62454- | |
| 7 | 103-62-31210 | CLIP | 62454- | |
| 8 | 01010-81045 | BOLT | 62454- | |
| 9 | 01602-21030 | WASHER | 62454- | |
| 10 | 07260-22663 | HOSE | 62454- | |
| 11 | 07289-00035 | CLAMP | 62783- | |
| 07289-00045 | CLAMP | 62758-62782 | ||
| 07281-00419 | CLAMP | 62454-62757 | ||
| 12 | 103-62-21160 | CLIP | 62454- | |
| 13 | 01010-81025 | BOLT | 62454- | |
| 14 | 01602-21030 | WASHER | 62454- | |
| 15 | 01643-31032 | WASHER | 62454- | |
| 16 | 104-62-41142 | TUBE | 62539- | |
| \0\104-62-41141 | TUBE | 62454-62538 | ||
| 17 | 104-62-41161 | BRACKET | 62454- | |
| 18 | 01010-81020 | BOLT | 62454- | |
| 19 | 01643-31032 | WASHER | 62454- | |
| 20 | 104-62-41151 | BRACKET | 62454- | |
| 21 | 01010-81020 | BOLT | 62454- | |
| 22 | 01643-31032 | WASHER | 62454- | |
| 23 | 07283-32738 | CLIP | 62454- | |
| 24 | 01643-31032 | WASHER | 62454- | |
| 25 | 01599-01011 | NUT | 62454- | |
| 26 | 07260-22613 | HOSE | 62454- | |
| 27 | 07289-00035 | CLAMP | 62783- | |
| 07289-00045 | CLAMP | 62758-62782 | ||
| 07281-00419 | CLAMP | 62454-62757 | ||
| 28 | 104-62-41130 | TUBE | 62454- | |
| 29 | 01010-81060 | BOLT | 62454- | |
| 30 | 01010-81050 | BOLT | 62454- | |
| 31 | 01643-31032 | WASHER | 62454- | |
| 32 | 07000-03035 | O-RING | 62454- | |
| 33 | 07042-30108 | PLUG | 62454- |
