| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07260-03210 | HOSE | 53001- | |
| 2 | 07281-00549 | CLAMP | 53001- | |
| 3 | 417-N24-2232 | TUBE | 53062- | |
| 3 | 417-N24-2231 | TUBE | 53001-53061 | |
| 4 | 07000-13042 | O-RING | 53001- | |
| 5 | 01435-01025 | BOLT | 53001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa180 3 s/n 53001 up (for komatsu hanomag (germany))
- Hydraulic system
- Hydraulic piping (tank to divider valve line) (with emergency steering)
Поиск по каталогу

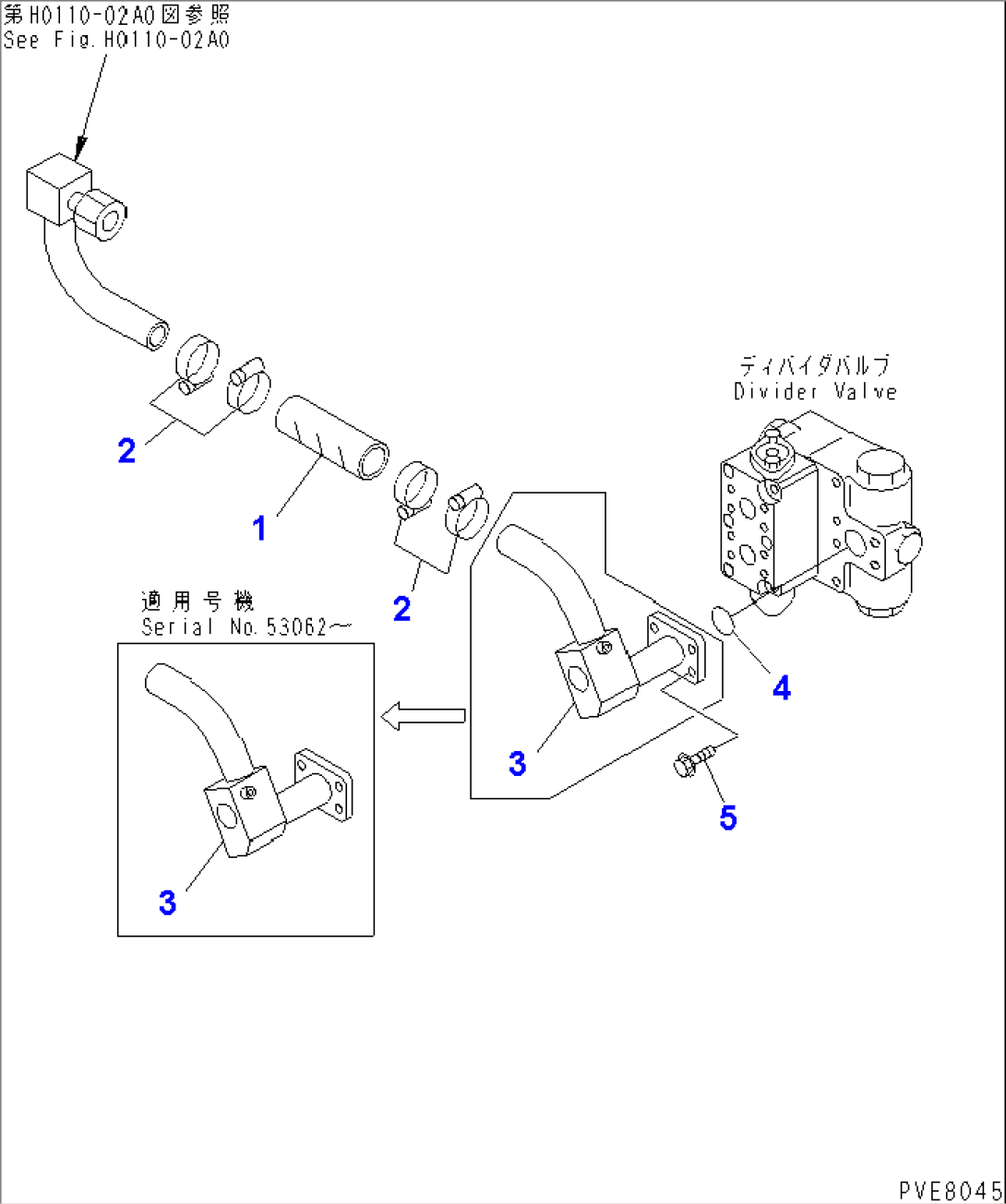

HYDRAULIC PIPING (TANK TO DIVIDER VALVE LINE) (WITH EMERGENCY STEERING)
