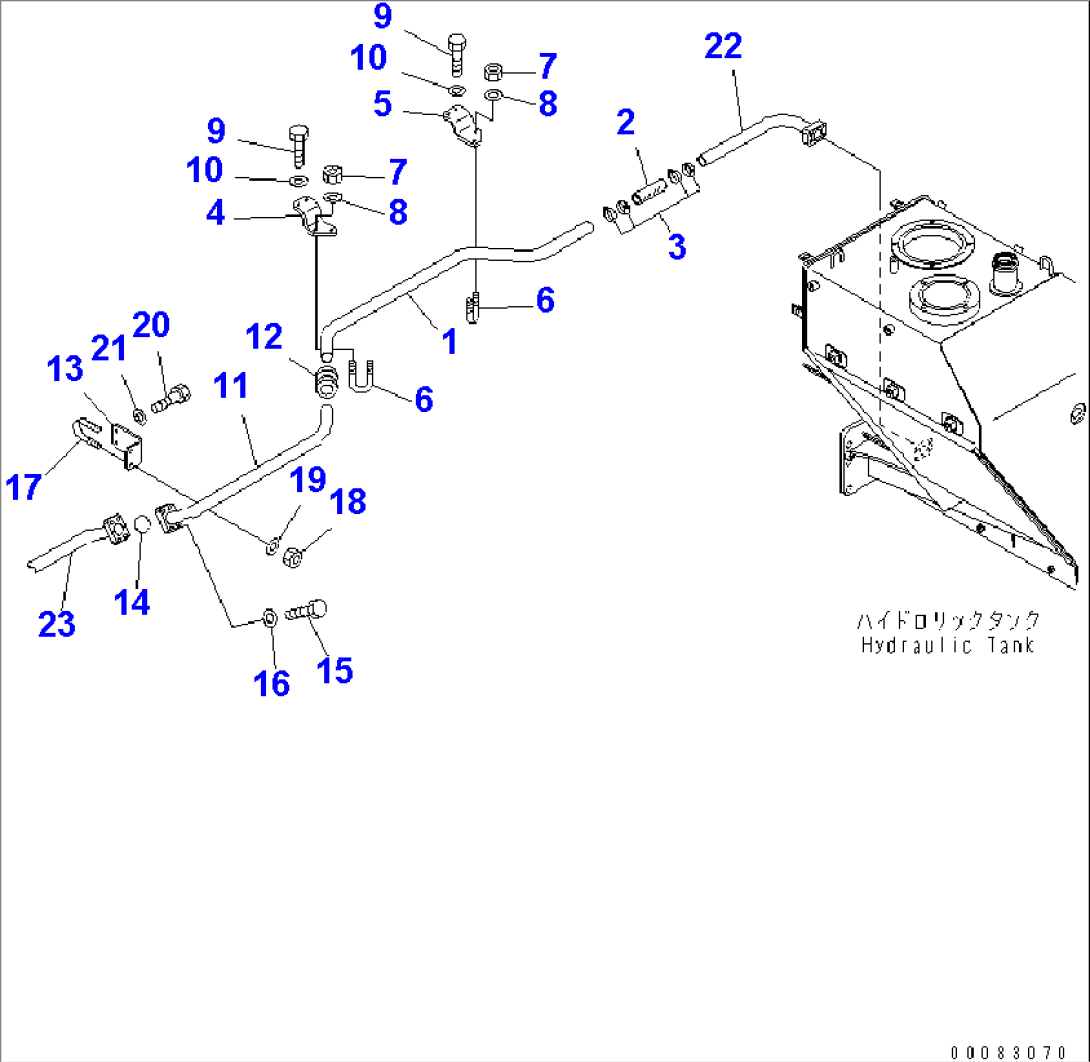

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-61-11611 | TUBE | A10001- | |
| 2 | 07260-23216 | HOSE | A10001- | |
| 3 | 07281-00489 | CLAMP | A10001- | |
| 4 | 56B-61-11632 | BRACKET | A10001- | |
| 5 | 56B-61-13210 | PLATE | A10001- | |
| 6 | 07283-33442 | CLIP | A10001- | |
| 7 | 01597-01009 | NUT | A10001- | |
| 8 | 01643-31032 | WASHER | A10001- | |
| 9 | 01010-81025 | BOLT | A10001- | |
| 10 | 01643-31032 | WASHER | A10001- | |
| 11 | 56B-61-13110 | TUBE | A10001- | |
| 12 | 07332-01000 | COUPLING ASS'Y | A10001- | |
| 07332-51000 | GASKET | A10001- | ||
| 07332-61000 | CLAMP | A10001- | ||
| 13 | 56B-61-13120 | BRACKET | A10001- | |
| 14 | 07000-F3032 | O-RING | A10001- | |
| 15 | 07372-21035 | BOLT | A10001- | |
| 16 | 01643-51032 | WASHER | A10001- | |
| 17 | 07283-33442 | CLIP | A10001- | |
| 18 | 01597-01009 | NUT | A10001- | |
| 19 | 01643-31032 | WASHER | A10001- | |
| 20 | 01010-81020 | BOLT | A10001- | |
| 21 | 01643-31032 | WASHER | A10001- | |
| 22 | TUBE,(SEE FIG. H0110-02A0) | A10001- | ||
| 23 | TUBE,(SEE FIG. H3410-07A0) | A10001- |
