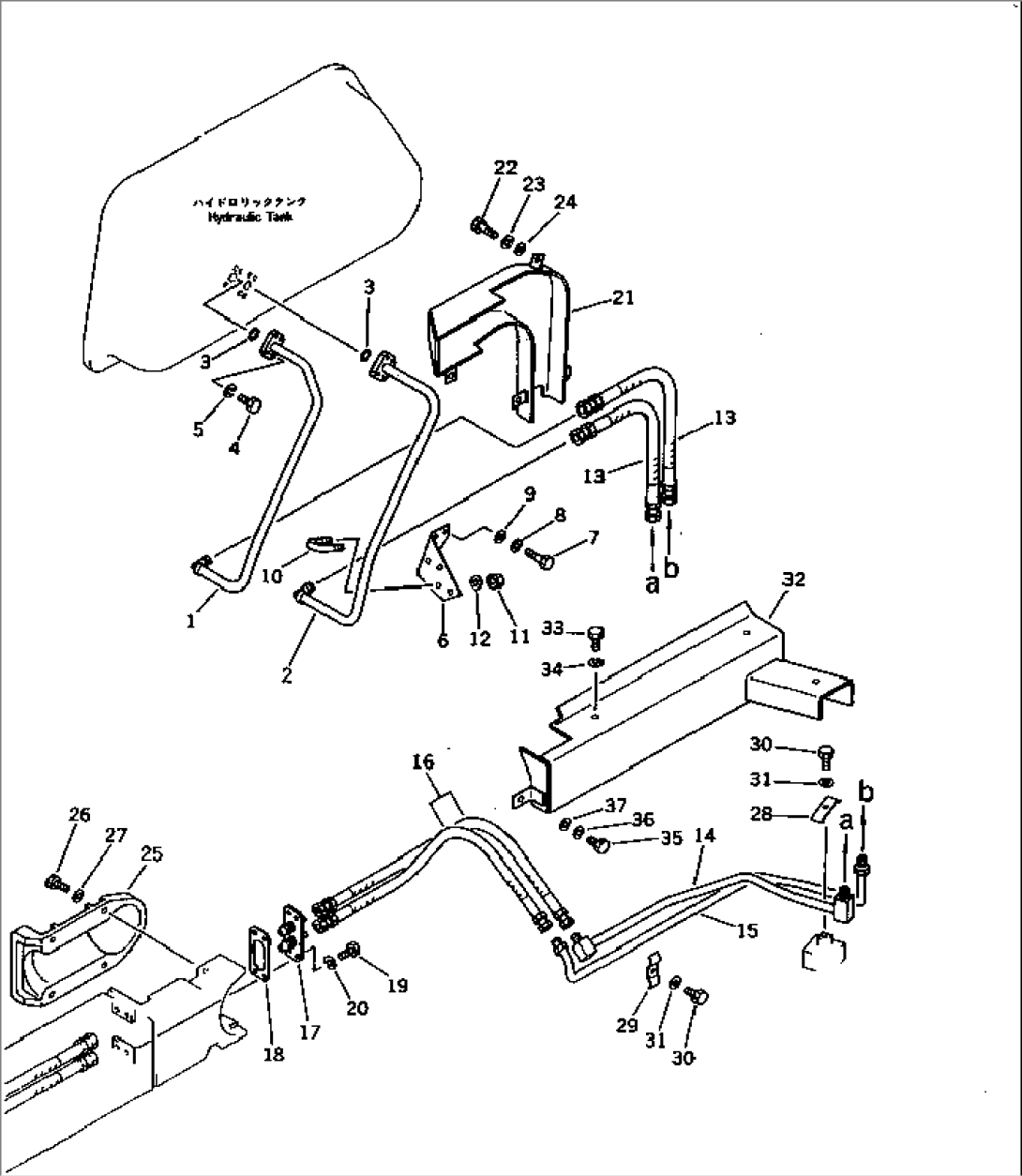

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 130-62-71310 | TUBE | 80888- | |
| 2 | 130-62-71320 | TUBE | 80888- | |
| 3 | 07000-23025 | O-RING | 80888- | |
| 4 | 01010-80835 | BOLT | 80888- | |
| 5 | 01602-20825 | WASHER,SPRING | 80888- | |
| 6 | 130-62-71330 | BRACKET | 80888- | |
| 7 | 01010-81025 | BOLT | 80888- | |
| 8 | 01602-21030 | WASHER,SPRING | 80888- | |
| 9 | 01643-31032 | WASHER | 80888- | |
| 10 | 07283-22236 | CLIP | 80888- | |
| 11 | 01599-01011 | NUT | 80888- | |
| 12 | 01643-31032 | WASHER | 80888- | |
| 13 | 07108-20405 | HOSE | 80888- | |
| 14 | 130-62-71360 | TUBE | 80888- | |
| 15 | 130-62-71370 | TUBE | 80888- | |
| 16 | 130-Z20-9110 | HOSE | 80888- | |
| 17 | 144-Z20-9230 | BRACKET | 80888- | |
| 18 | 144-Z20-9271 | GASKET | 82145- | |
| 18 | \0\144-Z20-9270 | GASKET | 80888-82144 | |
| 19 | 01010-81230 | BOLT | 80888- | |
| 20 | 01602-21236 | WASHER,SPRING | 80888- | |
| 21 | 130-62-71340 | COVER | 80888- | |
| 22 | 01010-81230 | BOLT | 80888- | |
| 23 | 01602-21236 | WASHER,SPRING | 80888- | |
| 24 | 01643-31232 | WASHER | 80888- | |
| 25 | 13F-62-21110 | COVER | 80888- | |
| 26 | 01010-81225 | BOLT | 80888- | |
| 27 | 01602-21236 | WASHER,SPRING | 80888- | |
| 28 | 130-62-71350 | CLAMP | 80888- | |
| 29 | 130-62-71390 | CLAMP | 80888- | |
| 30 | 01010-81020 | BOLT | 80888- | |
| 31 | 01602-21030 | WASHER,SPRING | 80888- | |
| 32 | 130-62-71380 | COVER | 80888- | |
| 33 | 01010-81225 | BOLT | 80888- | |
| 34 | 01602-21236 | WASHER,SPRING | 80888- | |
| 35 | 01010-81230 | BOLT | 80888- | |
| 36 | 01643-31232 | WASHER | 80888- | |
| 37 | 01602-21236 | WASHER,SPRING | 80888- |
