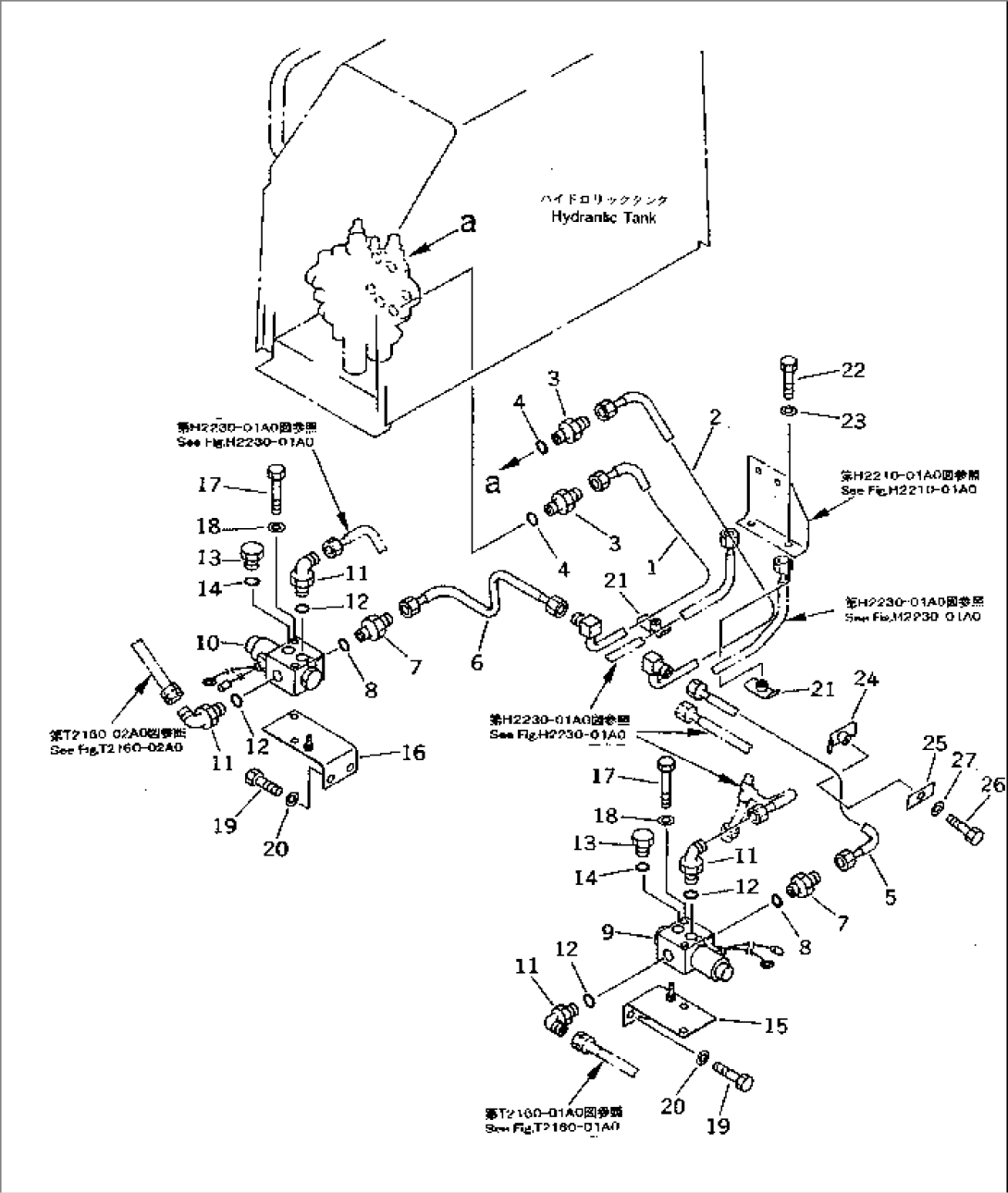

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 114-62-48370 | TUBE | 45001-47616 | |
| 2 | 114-62-48360 | TUBE | 45001-47616 | |
| 3 | 114-62-23110 | NIPPLE | 45001-47616 | |
| 4 | 07002-12434 | O-RING | 45001-47616 | |
| 5 | 114-62-48330 | TUBE | 45001-47616 | |
| 6 | 114-62-48340 | TUBE | 45001-47616 | |
| 7 | 07230-20315 | UNION | 45001-47616 | |
| 8 | 07002-12034 | O-RING | 45001-47616 | |
| 9 | 114-62-47140 | VALVE,SOLENOID | 45001-47616 | |
| 10 | 114-62-47140 | VALVE,SOLENOID | 45001-47616 | |
| 11 | 07235-10315 | ELBOW | 45001-47616 | |
| 12 | 07002-12034 | O-RING | 45001-47616 | |
| 13 | 07040-12012 | PLUG | 45001-47616 | |
| 14 | 07002-12034 | O-RING | 45001-47616 | |
| 15 | 114-62-47120 | BRACKET | 45001-47616 | |
| 16 | 114-62-47130 | BRACKET | 45001-47616 | |
| 17 | 01010-51080 | BOLT | 45001-47616 | |
| 18 | 01643-31032 | WASHER | 45001-47616 | |
| 19 | 01010-51225 | BOLT | 45001-47616 | |
| 20 | 01643-31232 | WASHER | 45001-47616 | |
| 21 | 114-62-33150 | CLIP | 45001-47616 | |
| 22 | 01010-50820 | BOLT | 45001-47616 | |
| 23 | 01643-30823 | WASHER | 45001-47616 | |
| 24 | 114-62-33150 | CLIP | 45001-47616 | |
| 25 | 20T-03-11210 | PLATE | 45001-47616 | |
| 26 | 01010-50820 | BOLT | 45001-47616 | |
| 27 | 01643-30823 | WASHER | 45001-47616 |
