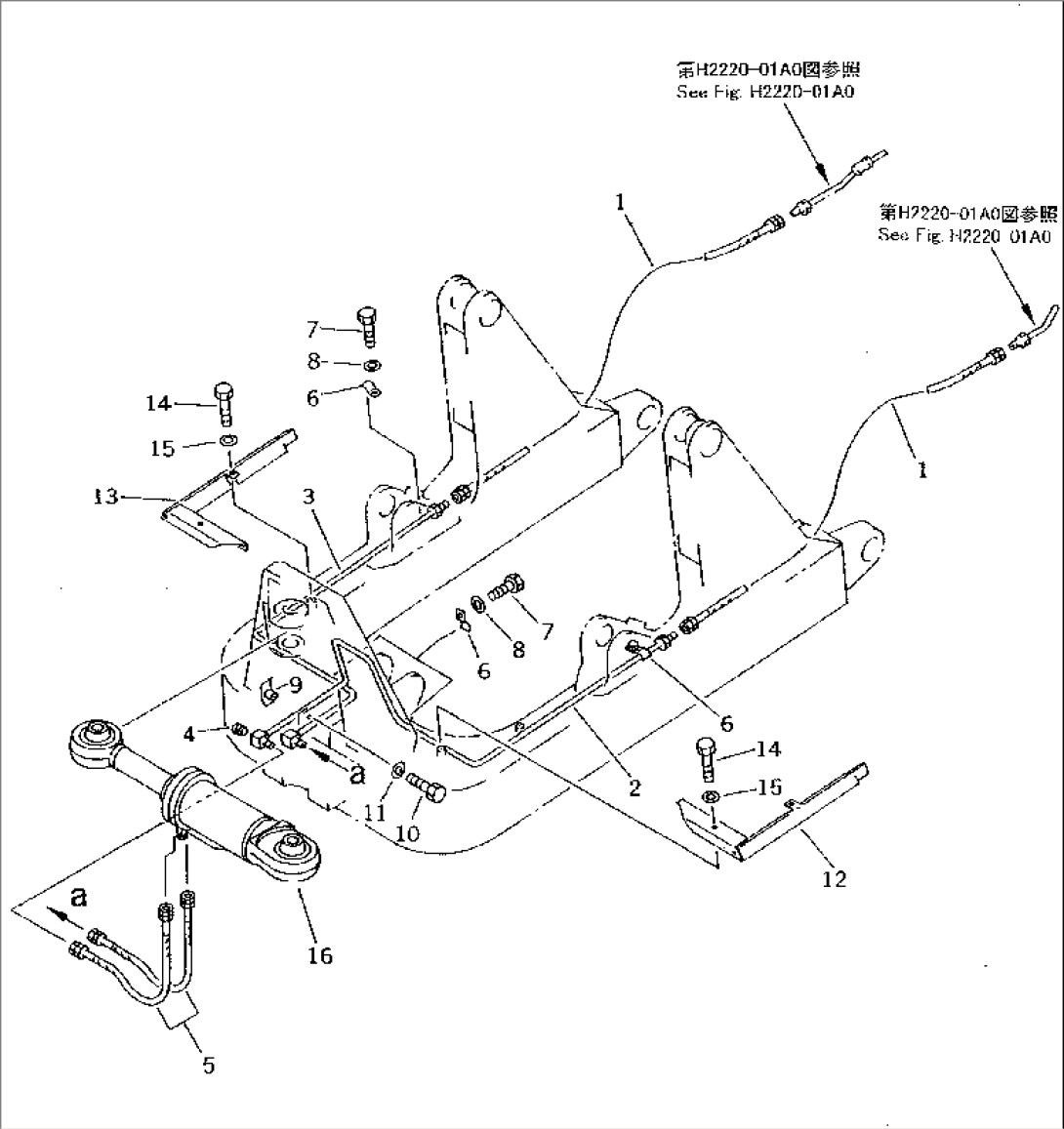

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 13F-62-32570 | HOSE | 83001-83046 | |
| 2 | 13F-62-32550 | TUBE,L.H. | 83001-83046 | |
| 3 | 13F-62-32560 | TUBE,R.H. | 83001-83046 | |
| 4 | 07042-20108 | PLUG | 83001-83046 | |
| 5 | 07086-40307 | HOSE | 83001-83046 | |
| 6 | T02-62-14140 | CLAMP | 83001-83046 | |
| 7 | 01010-51025 | BOLT | 83001-83046 | |
| 8 | 01643-31032 | WASHER | 83001-83046 | |
| 9 | 114-62-33150 | CLIP | 83001-83046 | |
| 10 | 01010-50830 | BOLT | 83001-83046 | |
| 11 | 01643-30823 | WASHER | 83001-83046 | |
| 12 | 13F-62-32210 | COVER | 83001-83046 | |
| 13 | 13F-62-32220 | COVER | 83001-83046 | |
| 14 | 01010-51025 | BOLT | 83001-83046 | |
| 15 | 01643-31032 | WASHER | 83001-83046 | |
| 16 | ((\8\13F-63-X3080)) | CYLINDER GROUP,TILT (SEE FIG.Y1630-31A0) | 83001-83046 |
