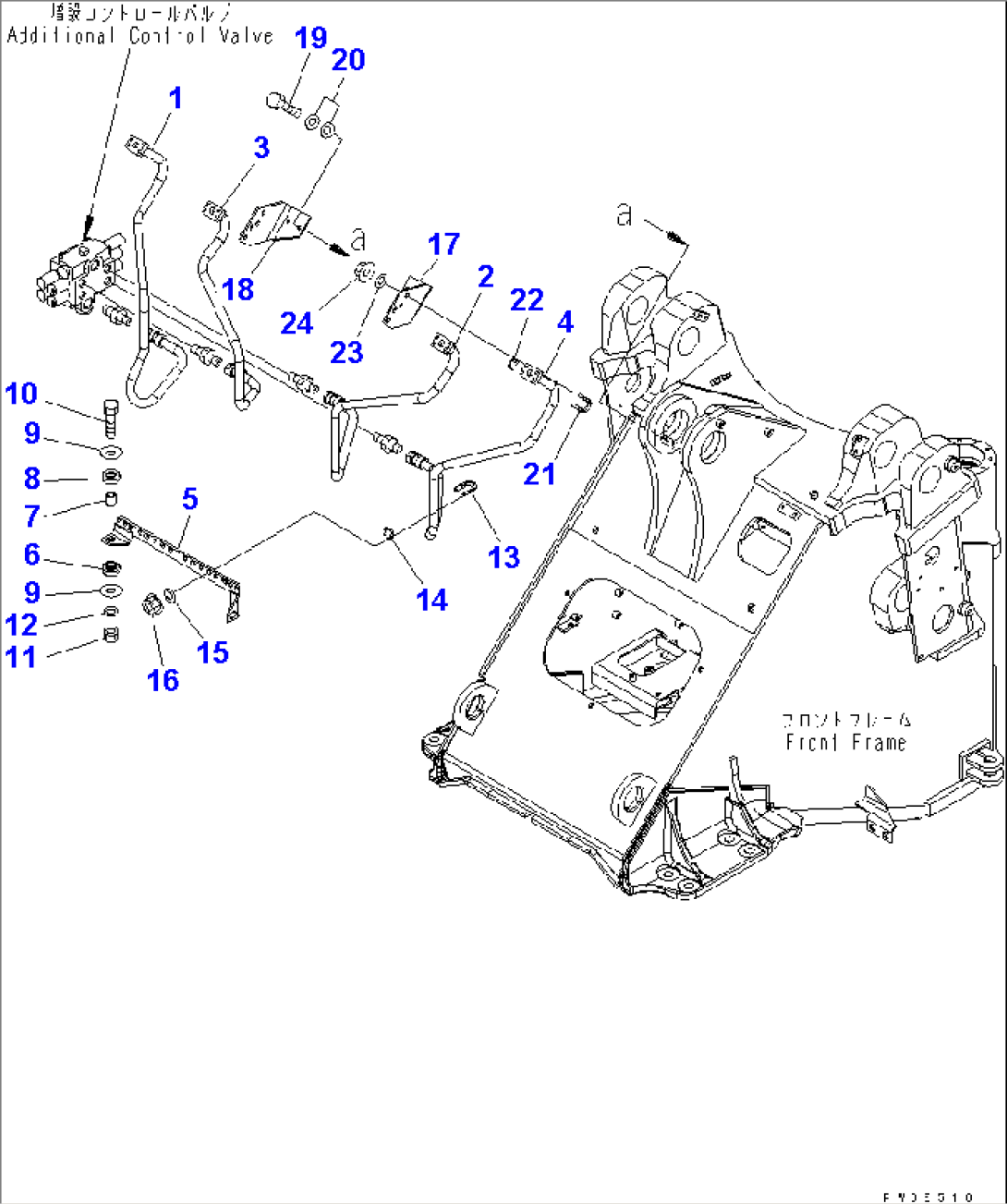

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-V88-3430 | TUBE | 60001- | |
| 2 | 423-V88-3440 | TUBE | 60001- | |
| 3 | 423-V88-3450 | TUBE | 60001- | |
| 4 | 423-V88-3460 | TUBE | 60001- | |
| 5 | 423-877-2210 | BRACKET | 60001- | |
| 6 | 419-43-17930 | CUSHION | 60001- | |
| 7 | 417-54-13470 | SPACER | 60001- | |
| 8 | 415-64-13130 | CUSHION | 60001- | |
| 9 | 415-64-13120 | WASHER | 60001- | |
| 10 | 01010-81050 | BOLT | 60001- | |
| 11 | 01580-11008 | NUT | 60001- | |
| 12 | 01643-31032 | WASHER | 60001- | |
| 13 | 07283-32746 | CLIP | 60001- | |
| 14 | 07283-52737 | SEAT | 60001- | |
| 15 | 01643-31032 | WASHER | 60001- | |
| 16 | 01597-01009 | NUT | 60001- | |
| 17 | 423-V88-3470 | PLATE,L.H. | 60001- | |
| 18 | 423-V88-3480 | PLATE,R.H. | 60001- | |
| 19 | 01010-81025 | BOLT | 60001- | |
| 20 | 01643-31032 | WASHER | 60001- | |
| 21 | 07283-32738 | CLIP | 60001- | |
| 22 | 07283-52737 | SEAT | 60001- | |
| 23 | 01643-31032 | WASHER | 60001- | |
| 24 | 01597-01009 | NUT | 60001- |
