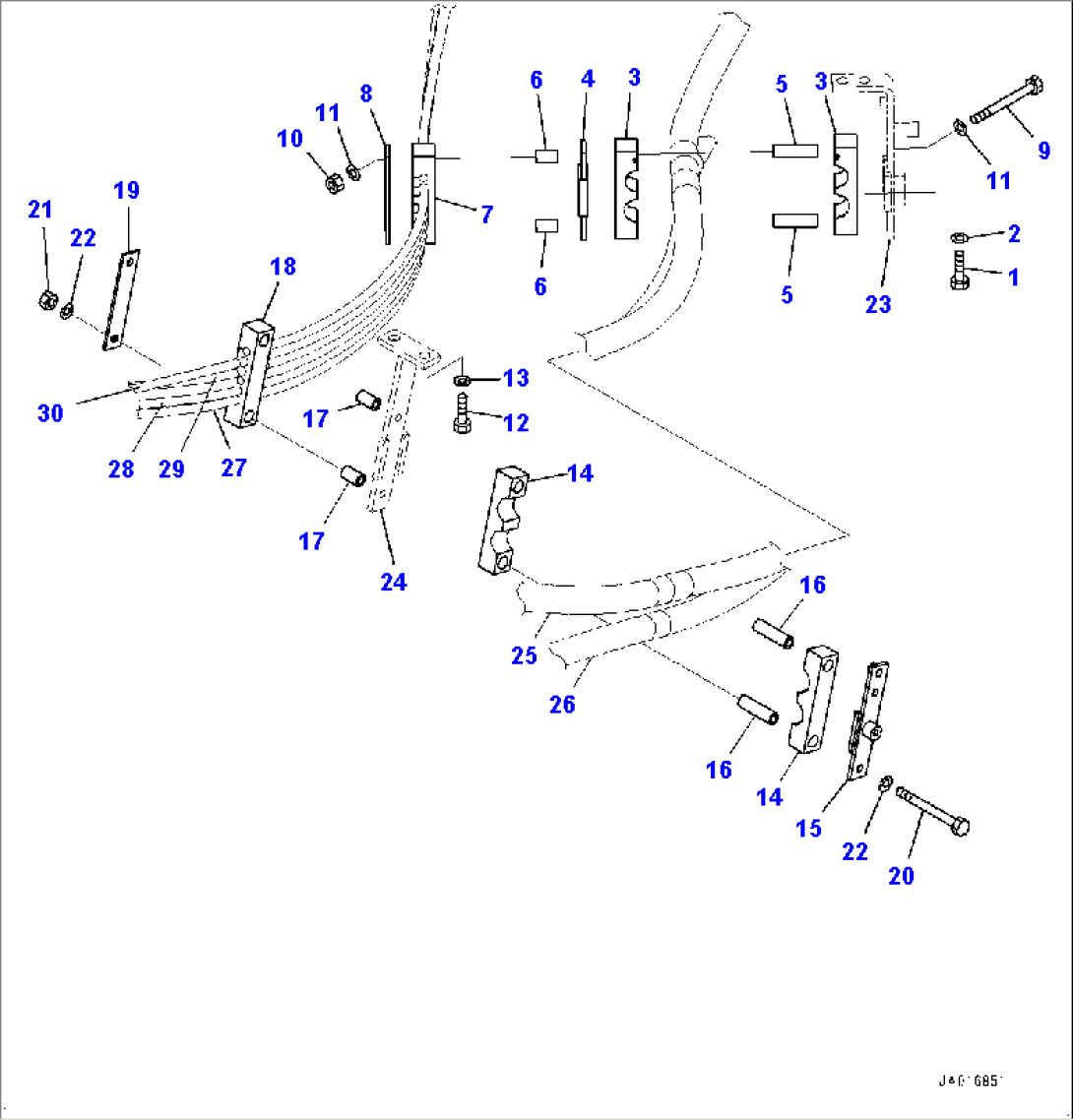

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81235 | Bolt | 80001- | |
| 2 | 01643-31232 | Washer | 80001- | |
| 3 | 418-62-33353 | Clamp | 80001- | |
| 4 | 418-62-23780 | Plate | 80001- | |
| 5 | 417-62-23690 | Spacer | 80001- | |
| 6 | 418-62-23790 | Spacer | 80001- | |
| 7 | 418-62-34480 | Rubber | 80001- | |
| 8 | 418-62-23810 | Plate | 80001- | |
| 9 | 01011-81030 | Bolt | 80001- | |
| 10 | 01580-11008 | Nut | 80001- | |
| 11 | 01643-31032 | Washer | 80001- | |
| 12 | 01010-81240 | Bolt | 80001- | |
| 13 | 01643-31232 | Washer | 80001- | |
| 14 | 418-62-33353 | Clamp | 80001- | |
| 15 | 417-62-53411 | Bracket | 80001- | |
| 16 | 417-62-23690 | Spacer | 80001- | |
| 17 | 418-62-23790 | Spacer | 80001- | |
| 18 | 418-62-34480 | Rubber | 80001- | |
| 19 | 418-62-23810 | Plate | 80001- | |
| 20 | 01011-81030 | Bolt | 80001- | |
| 21 | 01580-11008 | Nut | 80001- | |
| 22 | 01643-31032 | Washer | 80001- | |
| 23 | (417-62-43650) | Bracket | - | |
| 24 | (418-62-31551) | Bracket | - | |
| 25 | (417-U77-5490) | Hose | - | |
| 26 | (417-62-51620) | Hose | - | |
| 27 | (417-62-54150) | Hose | - | |
| 28 | (417-62-54170) | Hose | - | |
| 29 | (417-62-54160) | Hose | - | |
| 30 | (417-62-54180) | Hose | - |
