| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\20Y-60-X1261) | PUMP GROUP | 1001-1100 | |
| ==================== | ||||
| (708-25-04051) | PUMP ASS'Y | 1001-1100 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6101 TO 6151. | ||||

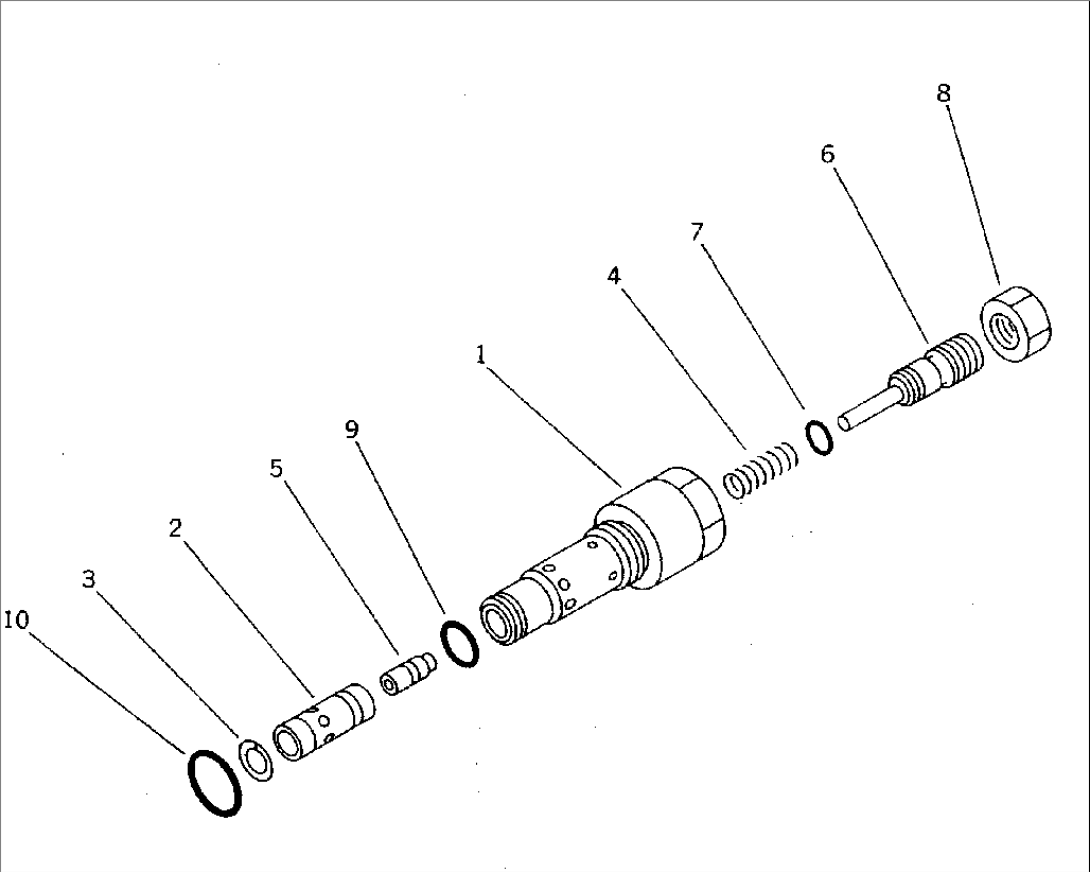

| 708-25-04311 | RELIEF VALVE ASS'Y | 1001-1100 | ||
| 1 | 708-23-14810 | SLEEVE | 1001-1100 | |
| 2 | 708-23-14930 | VALVE | 1001-1100 | |
| 3 | 708-23-14820 | RING,SNAP | 1001-1100 | |
| 4 | 708-23-14940 | SPRING | 1001-1100 | |
| 5 | 708-23-14950 | PISTON | 1001-1100 | |
| 6 | 708-23-14860 | SCREW | 1001-1100 | |
| 7 | 07000-02010 | O-RING | 1001-1100 | |
| 8 | 706-73-75350 | NUT | 1001-1100 | |
| 9 | 700-22-11410 | O-RING | 1001-1100 | |
| 10 | 07002-02434 | O-RING | 1001-1100 | |
| ==================== |
