| Item | Part No. | Part Name | Qty | Serial No. |
| (705-52-31010) | PUMP ASS'Y,(SAR 100+100) | 7001- | ||

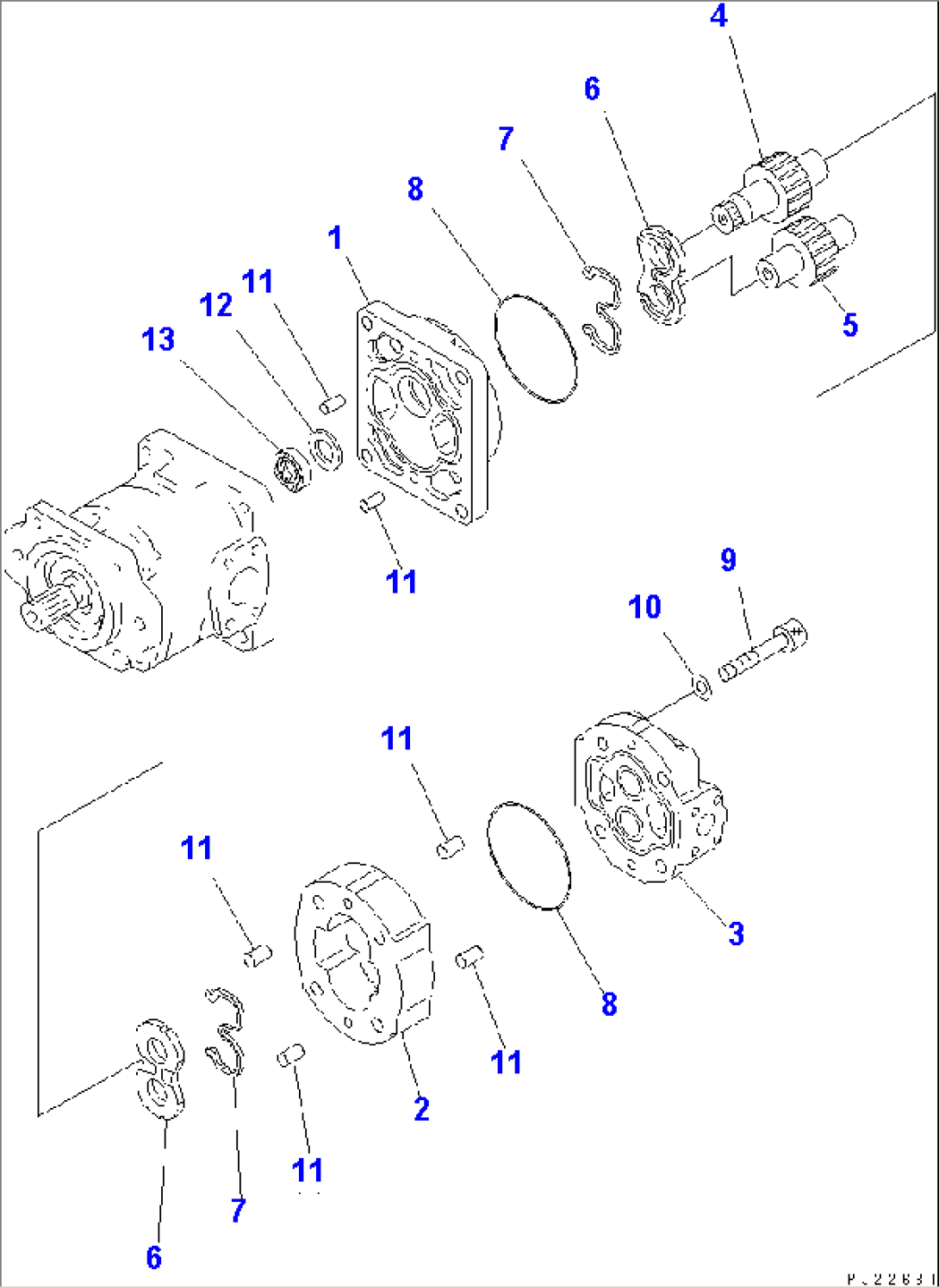

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.4511 AND 4512. | ||||
| 705-22-40040 | PUMP ASS'Y,(SAR 100) | 7001- | ||
| 1 | (\7\705-18-03071) | BRACKET | 7001- | |
| (\7\705-17-03352) | BUSHING | 7001- | ||
| 2 | (\7\705-17-40010) | CASE,GEAR | 7001- | |
| 3 | (\7\705-17-03120) | COVER ASS'Y | 7001- | |
| (\7\705-17-03352) | BUSHING | 7001- | ||
| 4 | (\7\705-17-40350) | GEAR,DRIVE | 7001- | |
| 5 | (\7\705-17-40511) | GEAR,DRIVEN | 7001- | |
| 6 | 705-17-03610 | PLATE,SIDE | 7001- | |
| 7 | 705-18-03470 | RING,SEAL | 7001- | |
| 8 | 705-17-03381 | O-RING | 7001- | |
| 9 | 705-17-03770 | BOLT | 7001- | |
| 10 | 01643-51645 | WASHER | 7001- | |
| 11 | 04020-01228 | PIN,DOWEL | 7001- | |
| 12 | 705-18-03870 | PLATE | 7001- | |
| 13 | 705-17-03890 | SEAL,OIL | 7001- |
