| Item | Part No. | Part Name | Qty | Serial No. |
| (705-52-31230) | PUMP ASS'Y,(SAR112+28) | 55001- | ||

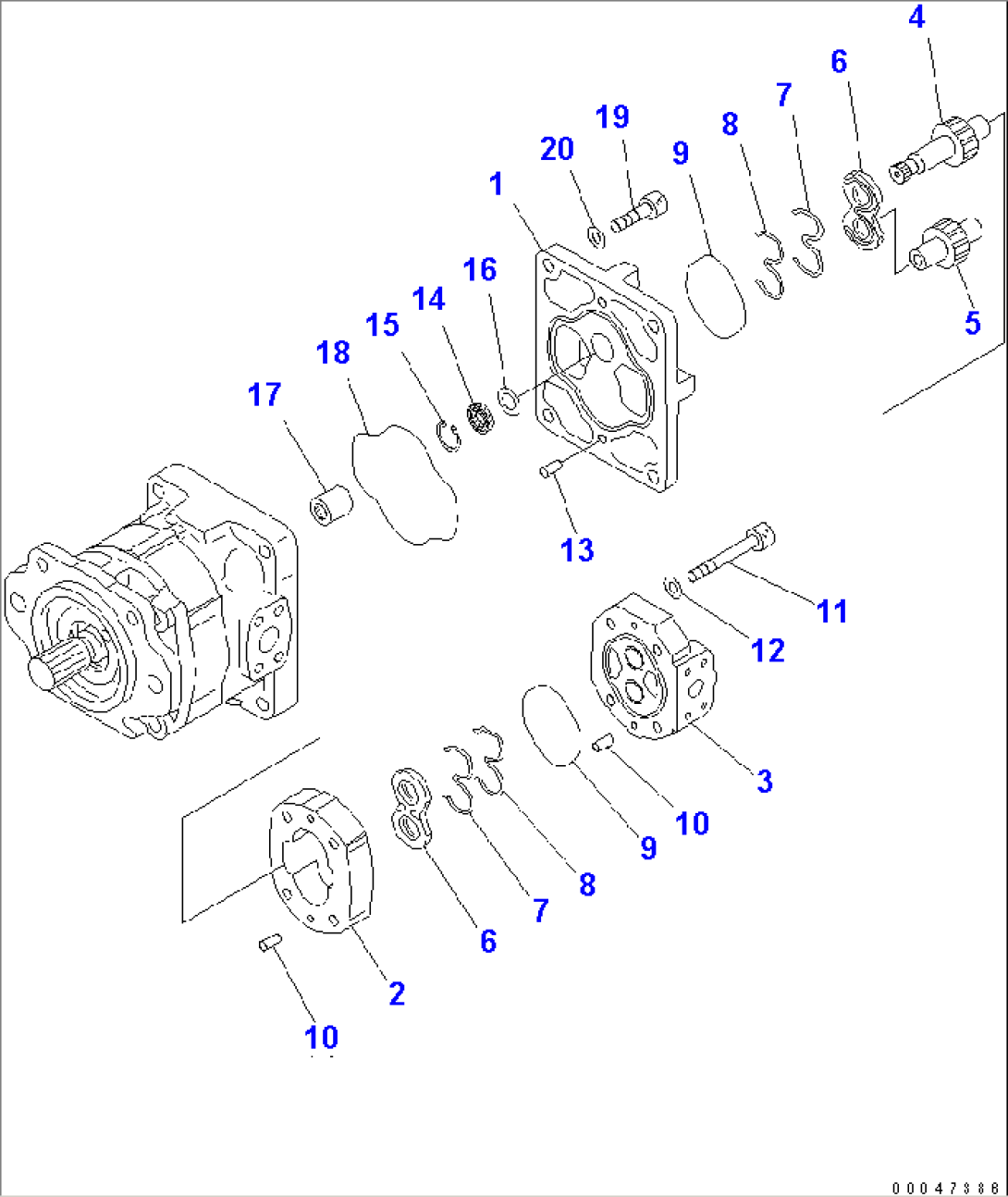

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-01B0 AND Y1610-02B0. | ||||
| 705-34-29640 | PUMP ASS'Y,(SAR28) | 55001- | ||
| 1 | (\7\705-19-01541) | BRACKET | 55001- | |
| 1 | (\7\705-17-01351) | BEARING,PLANE | 55001- | |
| 2 | (\7\705-18-29110) | CASE,GEAR | 55001- | |
| 3 | (\7\705-17-01121) | COVER | 55001- | |
| 3 | (\7\705-17-01351) | BEARING,PLANE | 55001- | |
| 4 | (\7\705-18-29750) | GEAR,DRIVE | 55001- | |
| 5 | (\7\705-18-29810) | GEAR,DRIVEN | 55001- | |
| 6 | 705-17-01610 | PLATE,SIDE | 55001- | |
| 7 | 705-67-01470 | SEAL,RING | 55001- | |
| 8 | 705-67-01440 | RING,BACK-UP | 55001- | |
| 9 | 705-67-01380 | O-RING | 55001- | |
| 10 | 04020-00820 | PIN,DOWEL | 55001- | |
| 11 | 705-17-02760 | BOLT | 55001- | |
| 12 | 01643-51232 | WASHER | 55001- | |
| 13 | 04020-01228 | PIN,DOWEL | 55001- | |
| 14 | 705-17-01950 | SEAL,OIL | 55001- | |
| 15 | 04065-03212 | RING,SNAP | 55001- | |
| 16 | 705-17-01860 | PLATE | 55001- | |
| 17 | 705-19-01330 | COUPLING | 55001- | |
| 18 | 705-17-03381 | O-RING | 55001- | |
| 19 | 01252-61445 | BOLT | 55001- | |
| 20 | 705-17-04980 | WASHER | 55001- |
