| Item | Part No. | Part Name | Qty | Serial No. |
| (705-56-34690) | PUMP ASS'Y,(SAR(3)63+SB(1)10+6) | 65061- | ||

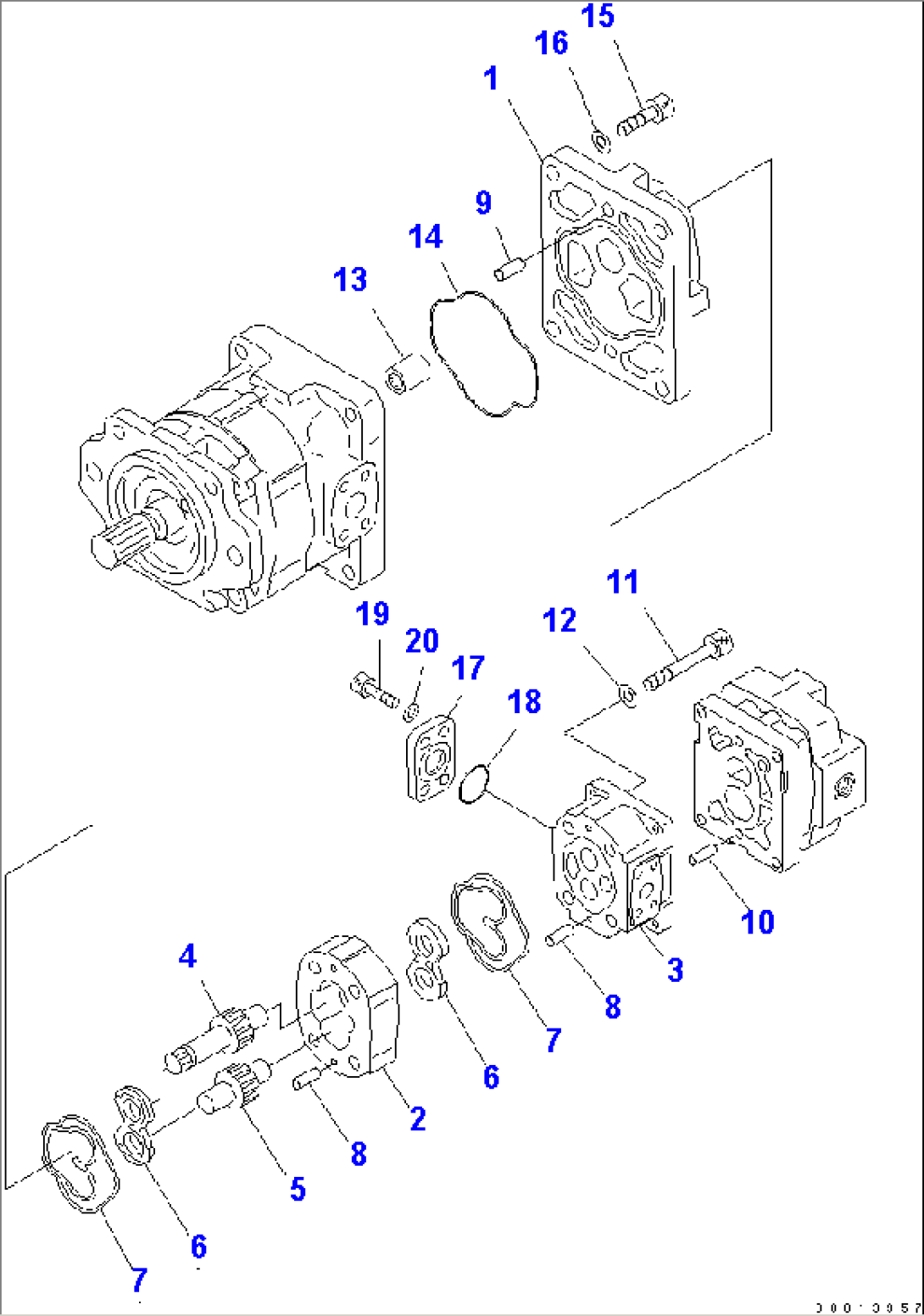

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-01A1 TO Y1610-03A1. | ||||
| 705-41-04480 | PUMP ASS'Y,(SBR(1)10) | 65061- | ||
| 1 | (\7\705-41-85010) | BRACKET | 65061- | |
| 1 | (\7\705-40-80610) | BUSHING,PLANE | 65061- | |
| 1 | (\7\705-40-80620) | BUSHING,PLANE | 65061- | |
| 2 | (\7\705-40-22011) | CASE,GEAR | 65061- | |
| 3 | (\7\705-40-80311) | CARRIER ASS'Y | 65061- | |
| 3 | (\7\705-40-80610) | BUSHING,PLANE | 65061- | |
| 3 | (\7\705-40-80620) | BUSHING,PLANE | 65061- | |
| 4 | (\7\705-40-22540) | GEAR,DRIVE | 65061- | |
| 5 | (\7\705-40-22511) | GEAR,DRIVEN | 65061- | |
| 6 | 705-40-83720 | PLATE,SIDE | 65061- | |
| 7 | 705-40-80770 | SEAL,OIL | 65061- | |
| 8 | 04020-00820 | PIN,DOWEL | 65061- | |
| 9 | 04020-01228 | PIN,DOWEL | 65061- | |
| 10 | 705-67-01230 | PIN,DOWEL | 65061- | |
| 11 | 01252-61270 | BOLT | 65061- | |
| 12 | 01643-51232 | WASHER | 65061- | |
| 13 | 705-67-01330 | COUPLING ASS'Y | 65061- | |
| 14 | 705-17-03381 | O-RING | 65061- | |
| 15 | 01252-61035 | BOLT | 65061- | |
| 16 | 705-17-04980 | WASHER | 65061- | |
| 17 | 705-40-80941 | PLATE | 65061- | |
| 18 | 07000-E2021 | O-RING | 65061- | |
| 19 | 01252-70825 | BOLT | 65061- | |
| 20 | 01643-50823 | WASHER | 65061- |
