| Item | Part No. | Part Name | Qty | Serial No. |
| (708-1L-00011) | PUMP ASS'Y | 60001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.H0210-5201 TO H0210-5501. | ||||
| (708-1L-01011) | PUMP SUB ASS'Y | 60001- | ||

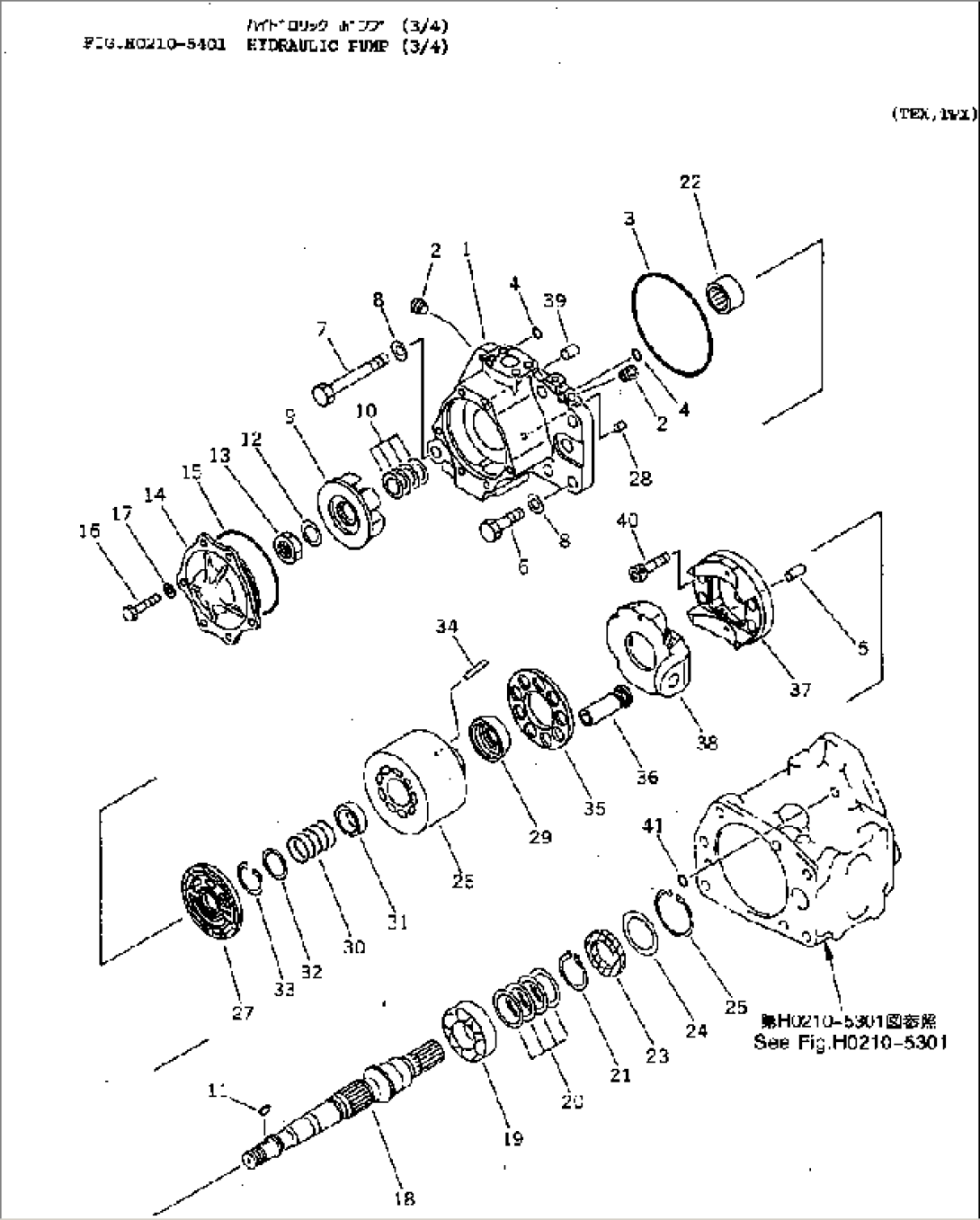

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.H0210-5301 AND H0210-5401. | ||||
| (\7\708-1L-04020) | END CAP ASS'Y | 60001- | ||
| 1 | \6\ | CAP,END | 60001- | |
| 2 | \6\ | PLUG | 60001- | |
| 3 | (\7\07000-05155) | O-RING | 60001- | |
| 4 | (\7\708-2L-21910) | O-RING | 60001- | |
| 5 | (\7\04020-01228) | PIN | 60001- | |
| 6 | (\7\01010-51450) | BOLT | 60001- | |
| 7 | (\7\01011-51425) | BOLT | 60001- | |
| 8 | (\7\01643-31445) | WASHER | 60001- | |
| 9 | (\7\708-1L-21630) | IMPELLER | 60001- | |
| 10 | (\7\708-1E-05010) | WASHER KIT | 60001- | |
| 10 | \6\ | WASHER, 2.7MM | 60001- | |
| 10 | \6\ | WASHER, 3.0MM | 60001- | |
| 10 | \6\ | WASHER, 3.3MM | 60001- | |
| 10 | \6\ | WASHER, 3.6MM | 60001- | |
| 11 | (\7\04010-00516) | KEY | 60001- | |
| 12 | (\7\708-1E-11640) | WASHER | 60001- | |
| 13 | (\7\01583-12414) | NUT | 60001- | |
| 14 | 708-1L-21621 | COVER | 60001- | |
| 15 | 07000-02130 | O-RING | 60001- | |
| 16 | 01010-51025 | BOLT | 60001- | |
| 17 | 01643-31032 | WASHER | 60001- | |
| 18 | (\7\708-1L-22111) | SHAFT | 60001- | |
| 19 | (\7\708-2E-12152) | BEARING | 60001- | |
| 20 | (\7\708-2E-05040) | WASHER KIT | 60001- | |
| 20 | \6\ | WASHER, 2.8MM | 60001- | |
| 20 | \6\ | WASHER, 2.9MM | 60001- | |
| 20 | \6\ | WASHER, 3.0MM | 60001- | |
| 20 | \6\ | WASHER, 3.1MM | 60001- | |
| 21 | (\7\708-25-12790) | RING,SNAP | 60001- | |
| 22 | (\7\708-2L-22260) | BEARING | 60001- | |
| 23 | 708-25-52860 | SEAL,OIL | 60001- | |
| 24 | 708-2L-22160 | SPACER | 60001- | |
| 25 | 04065-06825 | RING,SNAP | 60001- | |
| (\7\708-2L-04050) | BLOCK ASS'Y | 60001- | ||
| 26 | (\7\708-2L-23112) | BLOCK,CYLINDER | 60001- | |
| 27 | (\7\708-2L-23222) | PLATE | 60001- | |
| 28 | (\7\720-68-19610) | PIN | 60001- | |
| 29 | (\7\708-2L-23351) | GUIDE,RETAINER | 60001- | |
| 30 | (\7\708-2L-23151) | SPRING | 60001- | |
| 31 | (\7\708-2L-23131) | SEAT | 60001- | |
| 32 | (\7\708-7L-13140) | SEAT | 60001- | |
| 33 | (\7\04065-04818) | RING | 60001- | |
| 34 | (\7\708-2L-23360) | PIN | 60001- | |
| 35 | (\7\708-2L-23340) | RETAINER,SHOE | 60001- | |
| 36 | (\7\708-2L-23313) | PISTON SUB ASS'Y | 60001- | |
| (\7\708-2L-04060) | CRADLE ASS'Y | 60001- | ||
| 37 | (\7\708-2L-23853) | CRADLE | 60001- | |
| 38 | (\7\708-2L-23452) | CAM,ROCKER | 60001- | |
| 39 | (\7\04020-01228) | PIN | 60001- | |
| 40 | (\7\01252-61230) | BOLT | 60001- | |
| 41 | (\7\708-2L-23910) | O-RING | 60001- |
