| Item | Part No. | Part Name | Qty | Serial No. |
| (705-56-26090) | PUMP ASS'Y,(SAR(2)50+32+SB(1)12+12) | 70001-70826 | ||

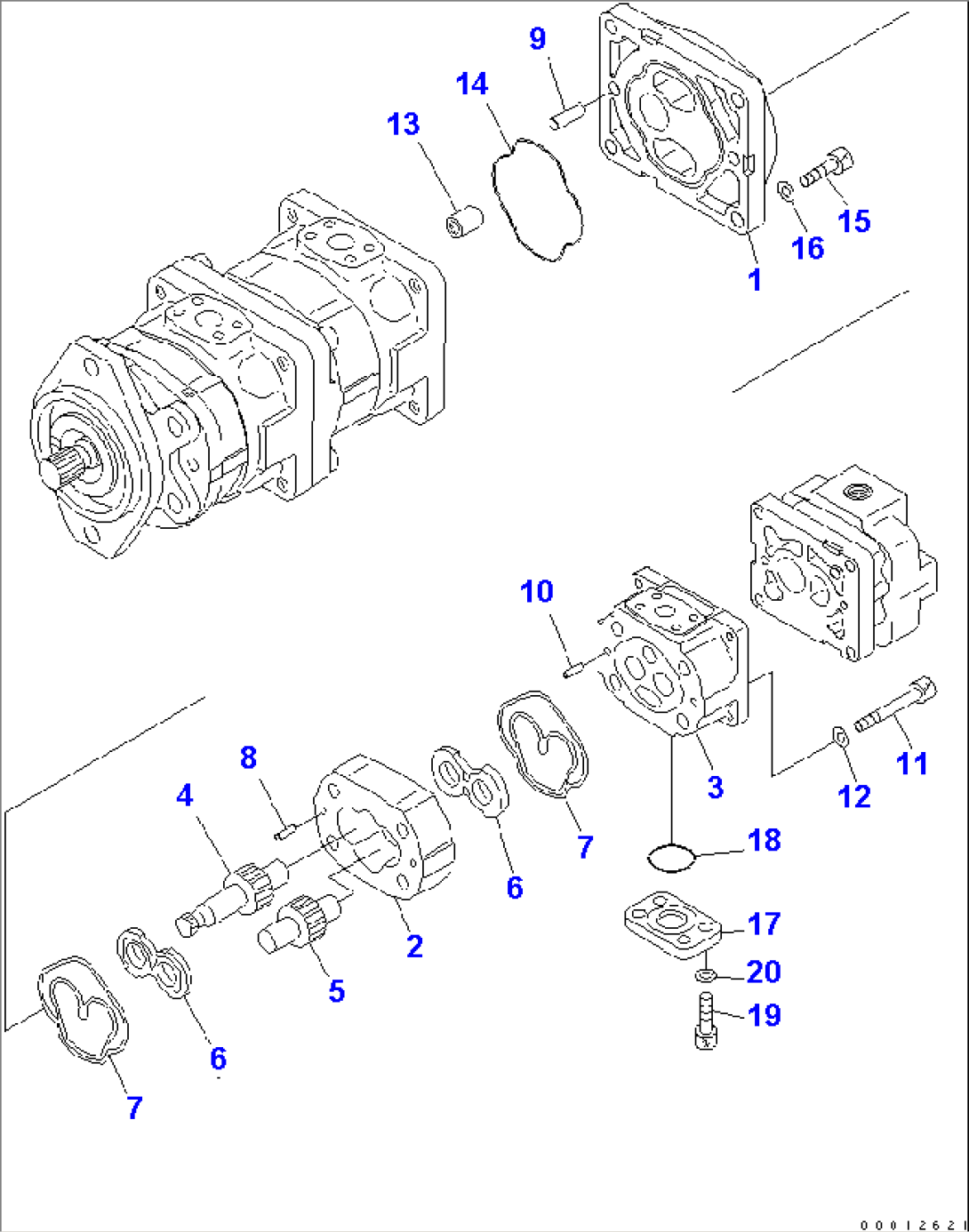

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-31A1 TO Y1610-34A1. | ||||
| 705-41-04510 | PUMP ASS'Y,(SB(1)12) | 70001-70826 | ||
| 1 | (\7\705-41-83010) | BRACKET | 70001-70826 | |
| 1 | (\7\705-40-80610) | BUSHING,PLANE | 70001-70826 | |
| 1 | (\7\705-40-80620) | BUSHING,PLANE | 70001-70826 | |
| 2 | (\7\705-40-24011) | CASE,GEAR | 70001-70826 | |
| 3 | (\7\705-40-80311) | CARRIER ASS'Y | 70001-70826 | |
| 3 | (\7\705-40-80610) | BUSHING,PLANE | 70001-70826 | |
| 3 | (\7\705-40-80620) | BUSHING,PLANE | 70001-70826 | |
| 4 | (\7\705-40-24540) | GEAR,DRIVE | 70001-70826 | |
| 5 | (\7\705-40-24511) | GEAR,DRIVEN | 70001-70826 | |
| 6 | 705-40-83720 | PLATE,SIDE | 70001-70826 | |
| 7 | 705-40-80770 | SEAL,OIL | 70001-70826 | |
| 8 | 04020-00820 | PIN,DOWEL | 70001-70826 | |
| 9 | 04020-01024 | PIN,DOWEL | 70001-70826 | |
| 10 | 705-67-01230 | PIN,DOWEL | 70001-70826 | |
| 11 | 01252-61275 | BOLT | 70001-70826 | |
| 12 | 01643-51232 | WASHER | 70001-70826 | |
| 13 | 705-67-01330 | COUPLING ASS'Y | 70001-70826 | |
| 14 | 705-17-02420 | O-RING | 70001-70826 | |
| 15 | 01252-61035 | BOLT | 70001-70826 | |
| 16 | 01643-51032 | WASHER | 70001-70826 | |
| 17 | 705-40-80941 | PLATE | 70001-70826 | |
| 18 | 07000-E2021 | O-RING | 70001-70826 | |
| 19 | 01252-70825 | BOLT | 70001-70826 | |
| 20 | 01643-50823 | WASHER | 70001-70826 |
