| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (705-58-44050) | PUMP ASS'Y | 17001- | |
| 2 | 07000-12130 | O-RING | 17001- | |
| 07000-52130 | O-RING,(B) | 17001- | ||
| 3 | 01010-81240 | BOLT | 17001- | |
| 4 | 01643-31232 | WASHER | 17001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D375a 3a 01 s/n 17001 up
- Hydraulic system
- Hydraulic pump
Поиск по каталогу

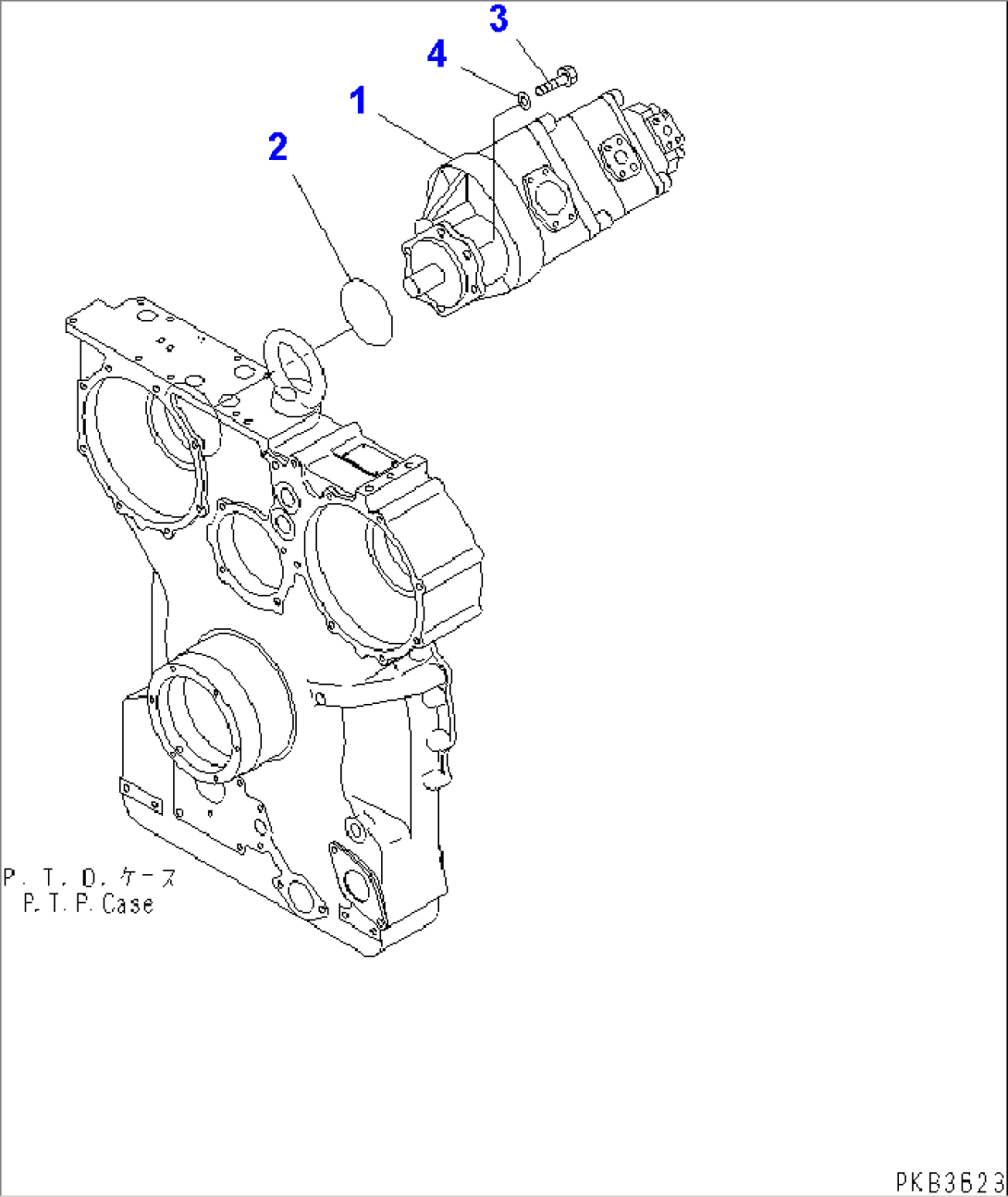

HYDRAULIC PUMP
