| Item | Part No. | Part Name | Qty | Serial No. |
| 705-52-30290 | PUMP ASS'Y | 1001- | ||

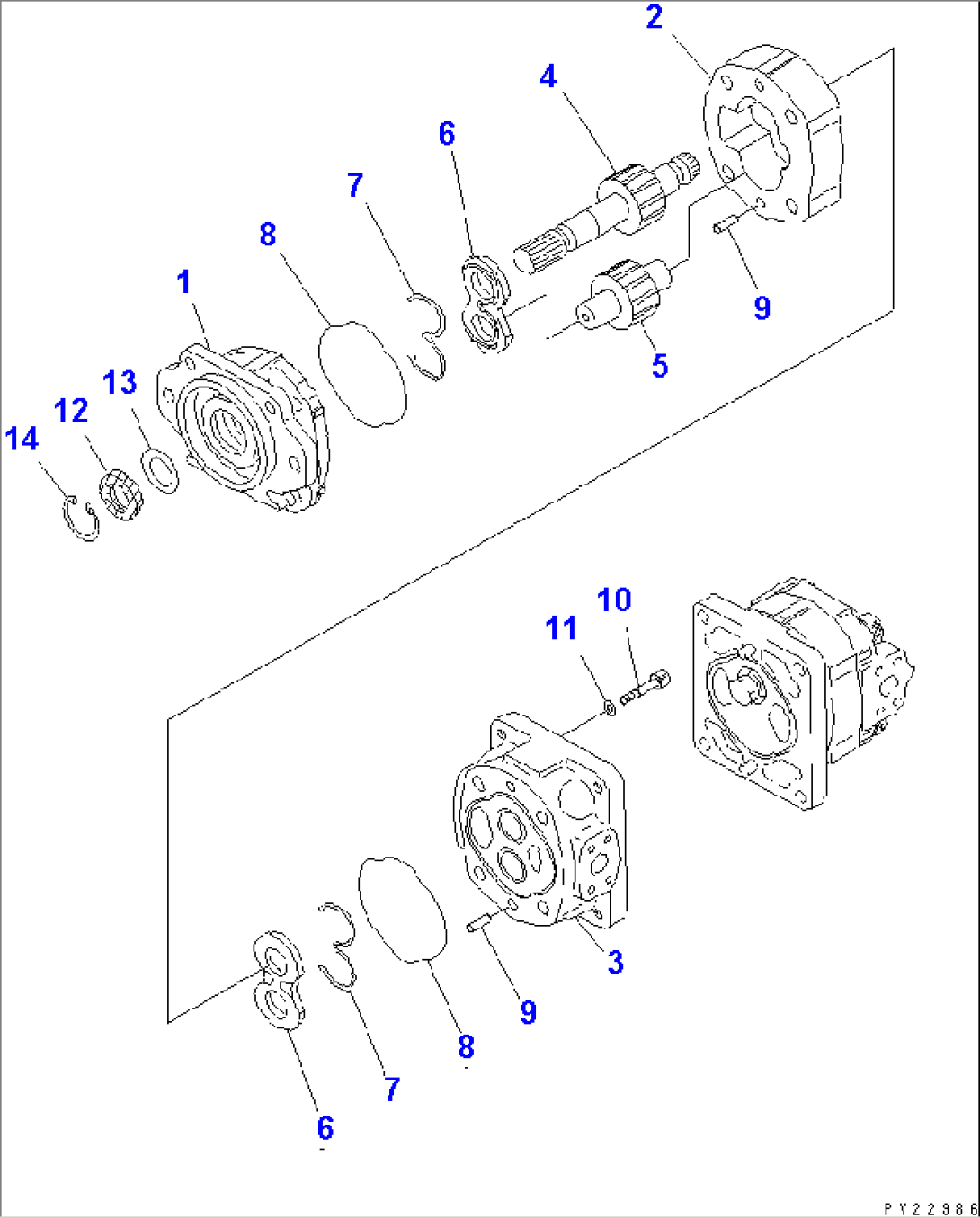

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.4507 AND 4508. | ||||
| 705-22-36080 | PUMP ASS'Y (SAR63) | 1001- | ||
| 1 | (\7\705-17-03021) | BRACKET ASS'Y | 1001- | |
| 1 | (\7\705-17-03352) | BEARING,PLANE | 1001- | |
| 2 | (\7\705-17-36010) | CASE,GEAR | 1001- | |
| 3 | (\7\705-17-03220) | CARRIER ASS'Y | 1001- | |
| 3 | (\7\705-17-03352) | BEARING,PLANE | 1001- | |
| 4 | (\7\705-17-36431) | GEAR,DRIVE | 1001- | |
| 5 | (\7\705-17-36511) | GEAR,DRIVEN | 1001- | |
| 6 | 705-17-03610 | PLATE,SIDE | 1001- | |
| 7 | 705-18-03470 | RING | 1001- | |
| 8 | 705-17-03381 | O-RING | 1001- | |
| 9 | 04020-01228 | PIN,DOWEL | 1001- | |
| 10 | 705-17-03750 | BOLT | 1001- | |
| 11 | 01643-51645 | WASHER | 1001- | |
| 12 | 705-17-03811 | SEAL,OIL | 1001- | |
| 13 | 705-17-03870 | PLATE | 1001- | |
| 14 | 04065-05220 | RING,SNAP | 1001- |
