| Item | Part No. | Part Name | Qty | Serial No. |

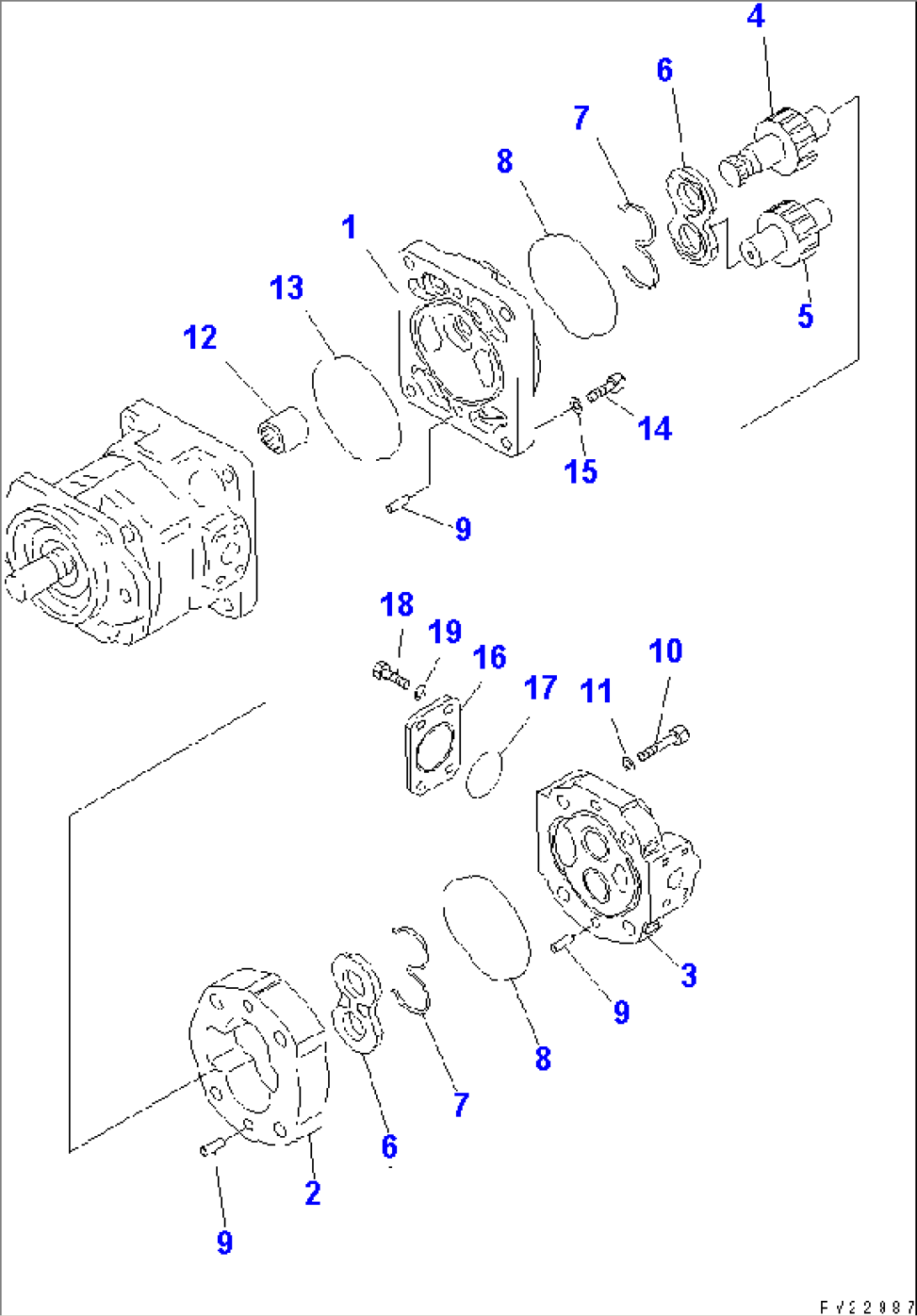

| (705-52-30290) | PUMP ASS'Y | 1001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.4505 AND 4506. | ||||
| 705-22-36090 | PUMP ASS'Y (SAR63) | 1001- | ||
| 1 | (\7\705-17-03520) | BRACKET | 1001- | |
| (\7\705-17-03352) | BUSHING,PLANE | 1001- | ||
| 2 | (\7\705-17-36010) | CASE,GEAR | 1001- | |
| 3 | (\7\705-17-03120) | COVER ASS'Y | 1001- | |
| (\7\705-17-03352) | BUSHING,PLANE | 1001- | ||
| 4 | (\7\705-17-36450) | GEAR,DRIVE | 1001- | |
| 5 | (\7\705-17-36511) | GEAR,DRIVEN | 1001- | |
| 6 | (\7\705-17-03610) | PLATE,SIDE | 1001- | |
| 7 | (\7\705-18-03470) | RING | 1001- | |
| 8 | (\7\705-17-03381) | O-RING | 1001- | |
| 9 | (\7\04020-01228) | PIN,DOWEL | 1001- | |
| 10 | (\7\705-17-03750) | BOLT | 1001- | |
| 11 | 01643-51645 | WASHER | 1001- | |
| 12 | 705-17-03330 | COUPLING | 1001- | |
| 13 | 705-17-03381 | O-RING | 1001- | |
| 14 | 705-17-03370 | BOLT | 1001- | |
| 15 | 705-17-04980 | WASHER | 1001- | |
| 16 | 705-17-03880 | PLATE | 1001- | |
| 17 | 07000-32055 | O-RING | 1001- | |
| 18 | 01010-51230 | BOLT | 1001- | |
| 19 | 01643-51232 | WASHER | 1001- |
