| Item | Part No. | Part Name | Qty | Serial No. |
| (705-52-42090) | PUMP ASS'Y,(SAR(4)285+285H) | 1021- | ||

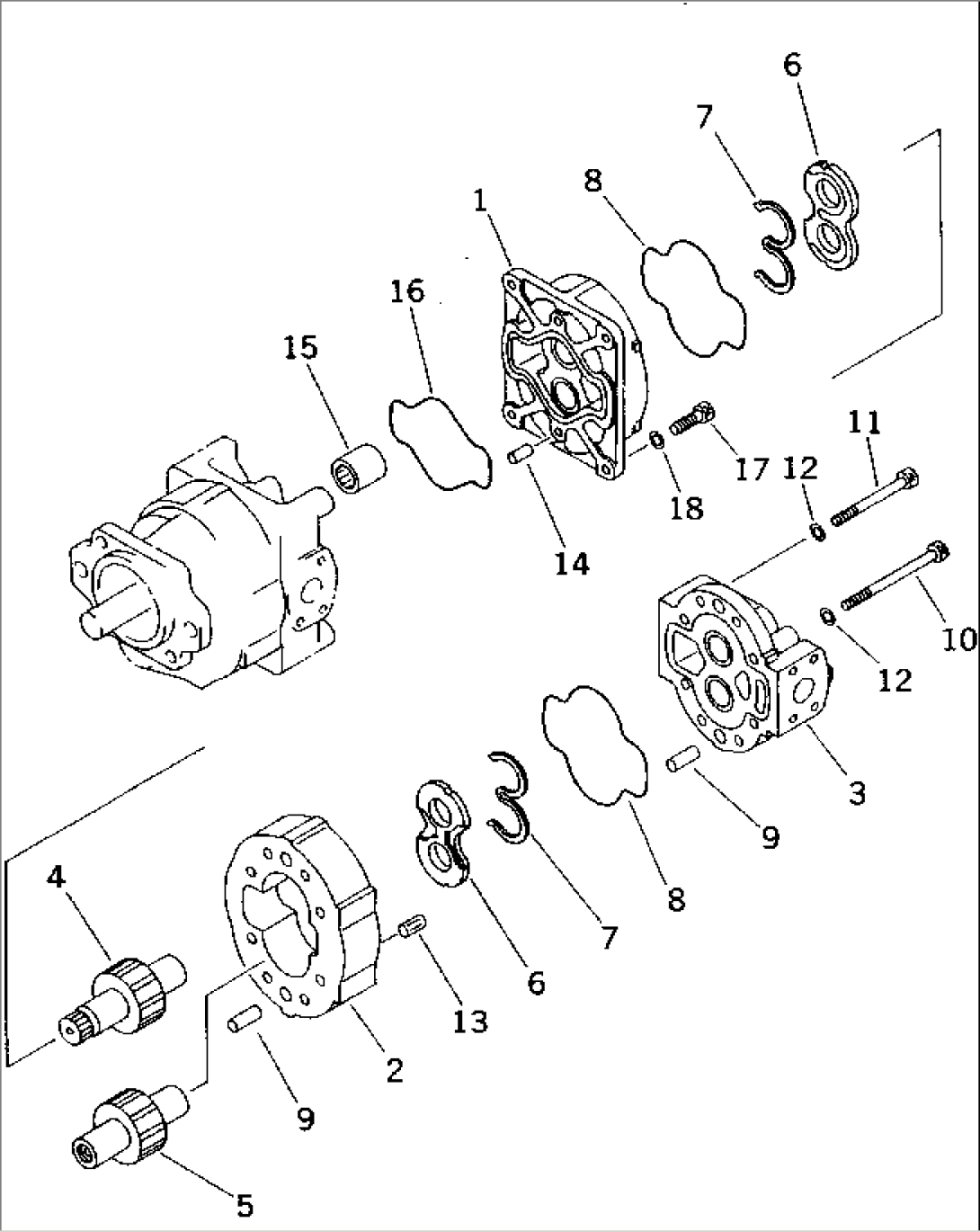

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-11A0 AND Y1600-12A0. | ||||
| 705-12-49540 | PUMP ASS'Y,(SAR(4)285H) | 1021- | ||
| 1 | (\7\705-17-04520) | BRACKET | 1021- | |
| (\7\705-17-04352) | BUSHING,PLANE | 1021- | ||
| 2 | (\7\705-17-49010) | CASE,GEAR | 1021- | |
| 3 | (\7\705-17-04120) | COVER | 1021- | |
| (\7\705-17-04352) | BUSHING,PLANE | 1021- | ||
| 4 | (\7\705-17-49450) | GEAR,DRIVE | 1021- | |
| 5 | (\7\705-17-49510) | GEAR,DRIVEN | 1021- | |
| 6 | (\7\705-17-04611) | PLATE,SIDE | 1021- | |
| 7 | (\7\705-18-04470) | SEAL | 1021- | |
| 8 | (\7\705-17-04382) | O-RING | 1021- | |
| 9 | (\7\04020-01842) | PIN,DOWEL | 1021- | |
| 10 | (\7\705-17-04790) | BOLT | 1021- | |
| 11 | (\7\705-17-04910) | BOLT | 1021- | |
| 12 | (\7\705-17-04980) | WASHER | 1021- | |
| 13 | (\7\569-15-41310) | SLEEVE | 1021- | |
| 14 | (\7\04020-01228) | PIN,DOWEL | 1021- | |
| 15 | 705-17-04330 | COUPLING | 1021- | |
| 16 | 705-17-04481 | O-RING | 1021- | |
| 17 | 705-19-03470 | BOLT | 1021- | |
| 18 | 705-17-04980 | WASHER | 1021- |
