| Item | Part No. | Part Name | Qty | Serial No. |
| (708-21-01040) | PUMP ASS'Y,(HPV35+35) | 2019- | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6201A TO 6231. | ||||
| \6\ | PUMP SUB ASS'Y | 2019- | ||

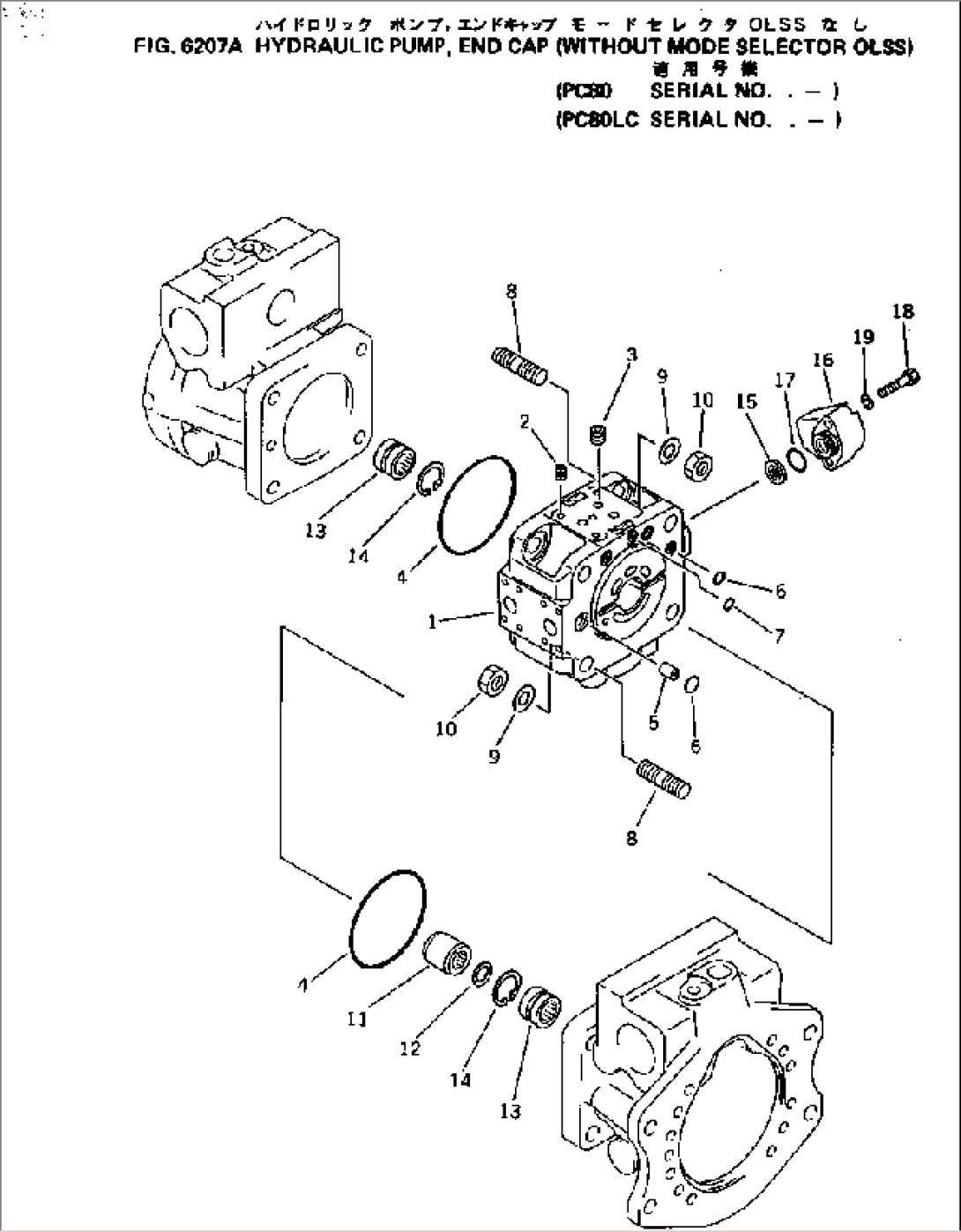

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6203A TO 6211A. | ||||
| (708-21-01220) | PUMP SUB ASS'Y | 2019- | ||
| (\7\708-21-00050) | END CAP ASS'Y | .- | ||
| 1 | \6\ | CAP,END | .- | |
| 2 | \6\ | PLUG | .- | |
| 3 | \6\ | PLUG | .- | |
| 4 | (\7\07000-02095) | O-RING | .- | |
| 5 | (\7\708-21-12330) | JOINT | .- | |
| 6 | (\7\07000-12012) | O-RING | .- | |
| 7 | (\7\07000-12010) | O-RING | .- | |
| 8 | (\7\01140-81440) | STUD | .- | |
| 9 | (\7\01643-31445) | WASHER | .- | |
| 10 | (\7\01582-01411) | NUT | .- | |
| 11 | (\7\708-21-12730) | COUPLING | .- | |
| 12 | (\7\708-21-12742) | RING | .- | |
| 13 | (\7\708-21-12760) | BEARING | .- | |
| 14 | (\7\04065-03212) | RING,SNAP | .- | |
| 15 | 720-68-15240 | FILTER | .- | |
| 16 | 708-23-12520 | FLANGE | .- | |
| 17 | 07000-02021 | O-RING | .- | |
| 18 | 01010-30840 | BOLT | .- | |
| 19 | 01602-20825 | WASHER,SPRING | .- |
