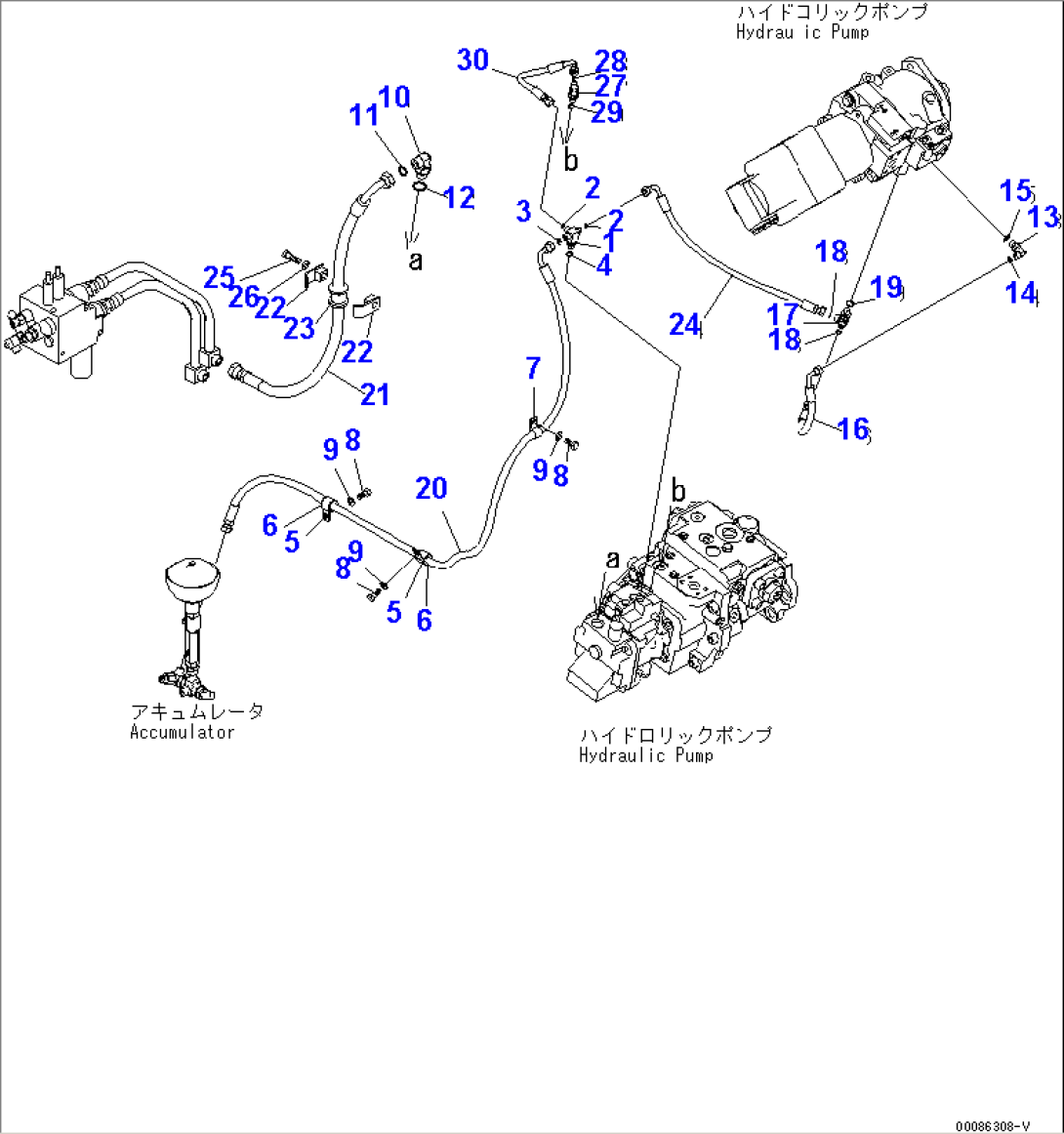

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-46720 | ELBOW | 90001- | |
| 2 | 02896-11008 | O-RING | 85001- | |
| 3 | 02896-11009 | O-RING | 85001- | |
| 4 | 07002-11423 | O-RING | 85001- | |
| 5 | 04434-52110 | CLIP | 90001- | |
| 6 | 07095-20314 | CUSHION | 90001- | |
| 7 | 04434-51510 | CLIP | 90001- | |
| 8 | 01010-81020 | BOLT | 90001- | |
| 9 | 01643-31032 | WASHER | 90001- | |
| 10 | 02782-10522 | ELBOW | 85001- | |
| 11 | 02896-11015 | O-RING | 85001- | |
| 12 | 07002-12434 | O-RING | 85001- | |
| 13 | 02782-10210 | ELBOW | 85001- | |
| 14 | 02896-11008 | O-RING | 85001- | |
| 15 | 07002-11423 | O-RING | 85001- | |
| 16 | 02754-00203 | HOSE | 90001- | |
| 17 | 421-62-46240 | TEE | 90028- | |
| 17 | 207-62-72141 | ELBOW | 90001-90027 | |
| 18 | 02896-11008 | O-RING | 90001- | |
| 19 | 07002-11423 | O-RING | 85001- | |
| 20 | 421-62-45640 | HOSE, 1920MM | 90001- | |
| 21 | 421-62-45620 | HOSE, 870MM | 90001- | |
| 22 | 22P-62-13520 | CLAMP | 90001- | |
| 23 | 07095-00524 | CUSHION | 85001- | |
| 24 | 421-62-46620 | HOSE, 530MM | 90001- | |
| 25 | 01010-81265 | BOLT | 90001- | |
| 26 | 01643-31232 | WASHER | 90001- | |
| 27 | 02782-10210 | ELBOW | 90001- | |
| 28 | 02896-11008 | O-RING | 90001- | |
| 29 | 07002-11423 | O-RING | 90001- | |
| 30 | 02754-00203 | HOSE | 90001- |
