| Item | Part No. | Part Name | Qty | Serial No. |
| 273-61-21200 | PUMP ASS'Y | 30003- | ||

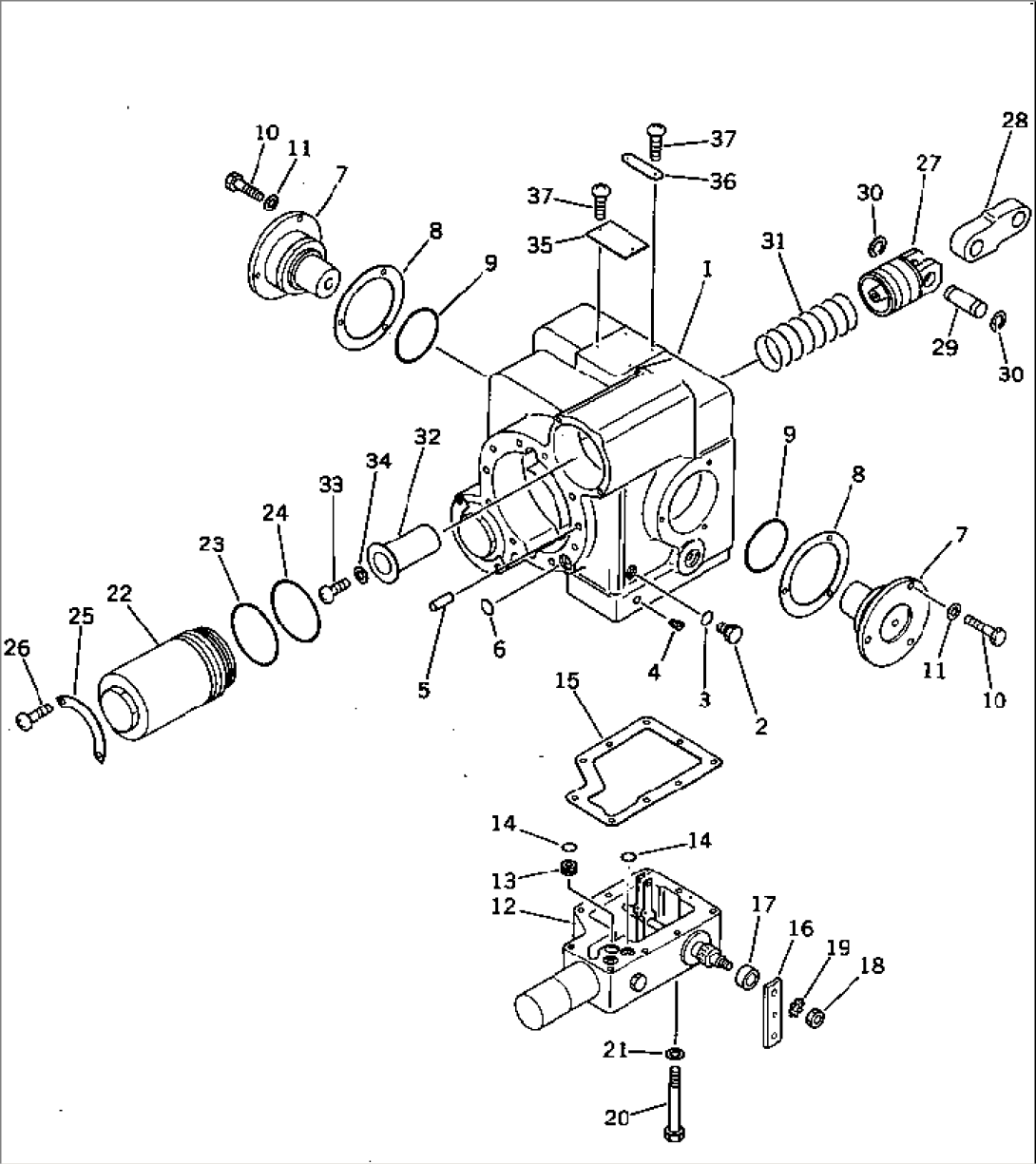

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6101 AND 6103. | ||||
| 1 | \6\ | HOUSING | 30003- | |
| 2 | 262-61-11910 | PLUG | 30003- | |
| 3 | 262-61-11890 | O-RING | 30003- | |
| 4 | \6\ | PLUG | 30003- | |
| 5 | \6\ | PIN | 30003- | |
| 6 | 262-61-11940 | O-RING | 30003- | |
| 7 | \6\ | TRUNNION | 30003- | |
| 8 | \6\ | SCREW | 30003- | |
| 9 | 273-61-11620 | O-RING | 30003- | |
| 10 | 273-61-11630 | SCREW | 30003- | |
| 11 | 01640-20816 | WASHER | 30003- | |
| 12 | 273-61-11681 | VALVE ASS'Y,CONTROL | 30003- | |
| 13 | \6\ | ORIFICE | 30003- | |
| 14 | 262-61-11940 | O-RING | 30003- | |
| 15 | 273-61-11720 | GASKET | 30003- | |
| 16 | 262-61-11950 | HANDLE,CONTROL | 30003- | |
| 17 | 262-61-11190 | SPACER | 30003- | |
| 18 | 262-61-15810 | NUT | 30003- | |
| 19 | 262-61-15790 | WASHER | 30003- | |
| 20 | 273-61-11730 | SCREW | 30003- | |
| 21 | 01640-20610 | WASHER | 30003- | |
| 22 | \6\ | SLEEVE | 30003- | |
| 23 | 262-61-11640 | O-RING | 30003- | |
| 24 | 262-61-11650 | O-RING | 30003- | |
| 25 | \6\ | RETAINER | 30003- | |
| 26 | \6\ | SCREW | 30003- | |
| 27 | \6\ | PISTON | 30003- | |
| 28 | \6\ | LINK | 30003- | |
| 29 | \6\ | PIN | 30003- | |
| 30 | \6\ | RING,RETAINER | 30003- | |
| 31 | \6\ | SPRING | 30003- | |
| 32 | \6\ | GUIDE | 30003- | |
| 33 | \6\ | SCREW | 30003- | |
| 34 | \6\ | WASHER | 30003- | |
| 35 | \6\ | PLATE¤ NAME | 30003- | |
| 36 | \6\ | PLATE,DIRECTIONAL ARROW | 30003- | |
| 37 | \6\ | SCREW | 30003- |
