| Item | Part No. | Part Name | Qty | Serial No. |
| (273-61-21200) | PUMP ASS'Y | 30003- | ||

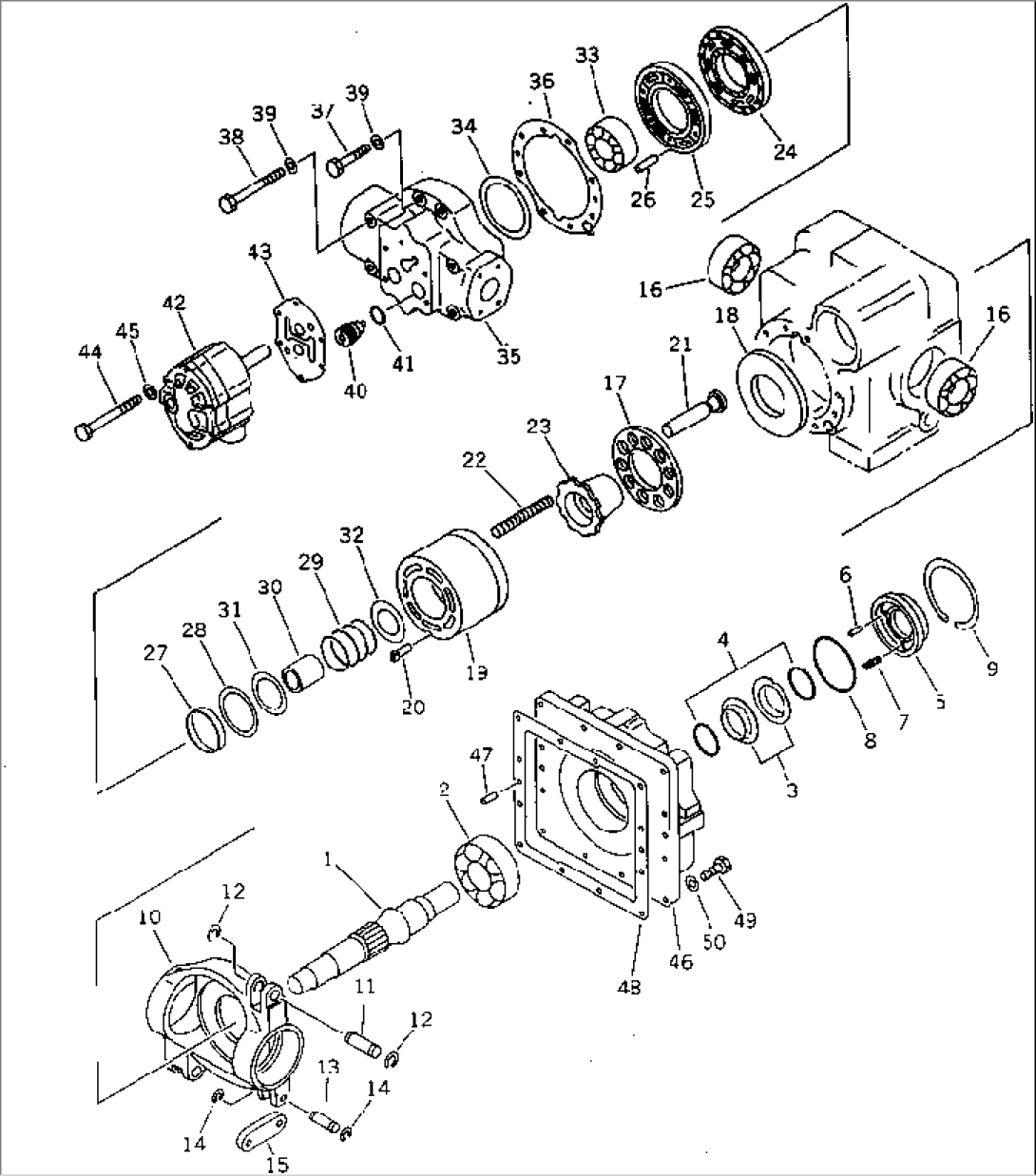

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6101 AND 6103. | ||||
| 1 | \6\ | SHAFT,DRIVE | 30003- | |
| 2 | \6\ | BEARING | 30003- | |
| 3 | 273-61-11230 | SEAL,OIL | 30003- | |
| 4 | 273-61-11240 | O-RING | 30003- | |
| 5 | 273-61-11250 | RETAINER | 30003- | |
| 6 | 262-61-11240 | PIN | 30003- | |
| 7 | 262-61-11250 | SPRING | 30003- | |
| 8 | 273-61-11260 | O-RING | 30003- | |
| 9 | 273-61-11270 | RING,RETAINER | 30003- | |
| 10 | \6\ | PLATE,SWASH | 30003- | |
| 11 | \6\ | PIN | 30003- | |
| 12 | \6\ | RING,RETAINER | 30003- | |
| 13 | \6\ | PIN | 30003- | |
| 14 | \6\ | RING,RETAINER | 30003- | |
| 15 | \6\ | LINK | 30003- | |
| 16 | \6\ | BEARING | 30003- | |
| 17 | \6\ | RETAINER | 30003- | |
| 18 | \6\ | PLATE,THRUST | 30003- | |
| 19 | \6\ | BLOCK ASS'Y | 30003- | |
| 20 | \6\ | PIN | 30003- | |
| 21 | \6\ | PISTON ASS'Y | 30003- | |
| 22 | \6\ | SPRING,RETAINER | 30003- | |
| 23 | \6\ | GUIDE | 30003- | |
| 24 | \6\ | PLATE,BEARING | 30003- | |
| 25 | \6\ | PLATE,VALVE | 30003- | |
| 26 | \6\ | PIN | 30003- | |
| 27 | \6\ | PILOT | 30003- | |
| 28 | \6\ | RING,RETAINING | 30003- | |
| 29 | \6\ | SPRING | 30003- | |
| 30 | \6\ | VALVE ASS'Y | 30003- | |
| 31 | \6\ | RETAINER | 30003- | |
| 32 | \6\ | SEAT | 30003- | |
| 33 | \6\ | BEARING | 30003- | |
| 34 | \6\ | SHIM | 30003- | |
| 35 | \6\ | CAP,END | 30003- | |
| 36 | \6\ | GASKET | 30003- | |
| 37 | \6\ | BOLT | 30003- | |
| 38 | \6\ | BOLT | 30003- | |
| 39 | 01640-21223 | WASHER | 30003- | |
| 40 | 262-61-11340 | VALVE,CHECK | 30003- | |
| 41 | 262-61-11350 | O-RING | 30003- | |
| 42 | 262-61-11320 | CHARGE PUMP ASS'Y | 30003- | |
| 43 | 262-61-11330 | GASKET | 30003- | |
| 44 | 273-61-21210 | SCREW | 30003- | |
| 45 | 01640-20610 | WASHER | 30003- | |
| 46 | \6\ | COVER,FRONT | 30003- | |
| 47 | \6\ | PIN | 30003- | |
| 48 | \6\ | GASKET | 30003- | |
| 49 | \6\ | SCREW | 30003- | |
| 50 | 01640-21016 | WASHER | 30003- |
