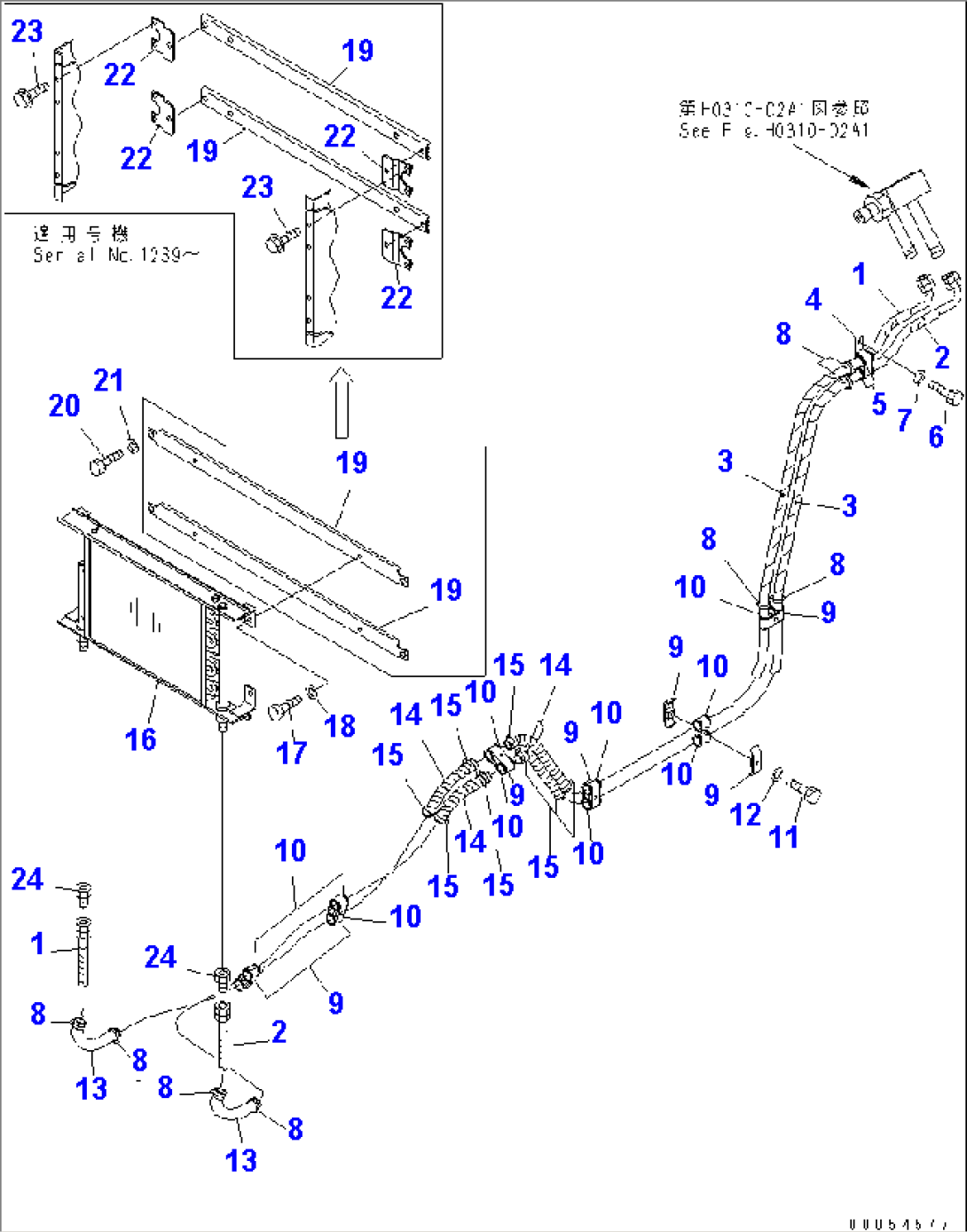

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07621-00537 | HOSE | 1088- | |
| 1 | 07623-00541 | HOSE | 1001-1087 | |
| 2 | 07621-00542 | HOSE | 1088- | |
| 2 | 07623-00544 | HOSE | 1001-1087 | |
| 3 | 08210-01806 | SPIRAL TUBE | 1001- | |
| 4 | 569-06-61980 | CLIP | 1001- | |
| 5 | 07095-20522 | CUSHION | 1001- | |
| 6 | 01010-81220 | BOLT | 1001- | |
| 7 | 01643-31232 | WASHER | 1001- | |
| 8 | 08034-00536 | BAND | 1001- | |
| 9 | 07094-30518 | CLAMP | 1001- | |
| 10 | 07095-00524 | CUSHION | 1001- | |
| 11 | 01010-81265 | BOLT | 1001- | |
| 12 | 01643-31232 | WASHER | 1001- | |
| 13 | 20U-62-11760 | VINYL | 1001- | |
| 14 | 08210-01802 | SPIRAL TUBE | 1239- | |
| 15 | 08034-20519 | BAND | 1239- | |
| 16 | 113-49-41111 | COOLER | 1163- | |
| 16 | 113-49-41110 | COOLER | 1001-1162 | |
| 17 | 01010-81020 | BOLT | 1001- | |
| 18 | 01643-31032 | WASHER | 1001- | |
| 19 | 134-54-61261 | PLATE | 1239- | |
| 19 | 134-54-61260 | PLATE | 1001-1238 | |
| 20 | 01010-81020 | BOLT | 1239- | |
| 20 | 01010-81016 | BOLT | 1001-1238 | |
| 21 | 01643-31032 | WASHER | 1001- | |
| 22 | 134-54-61480 | BRACKET | 1239- | |
| 23 | 01435-00812 | BOLT | 1239- | |
| 24 | 20T-62-51390 | NIPPLE | 1001- |
