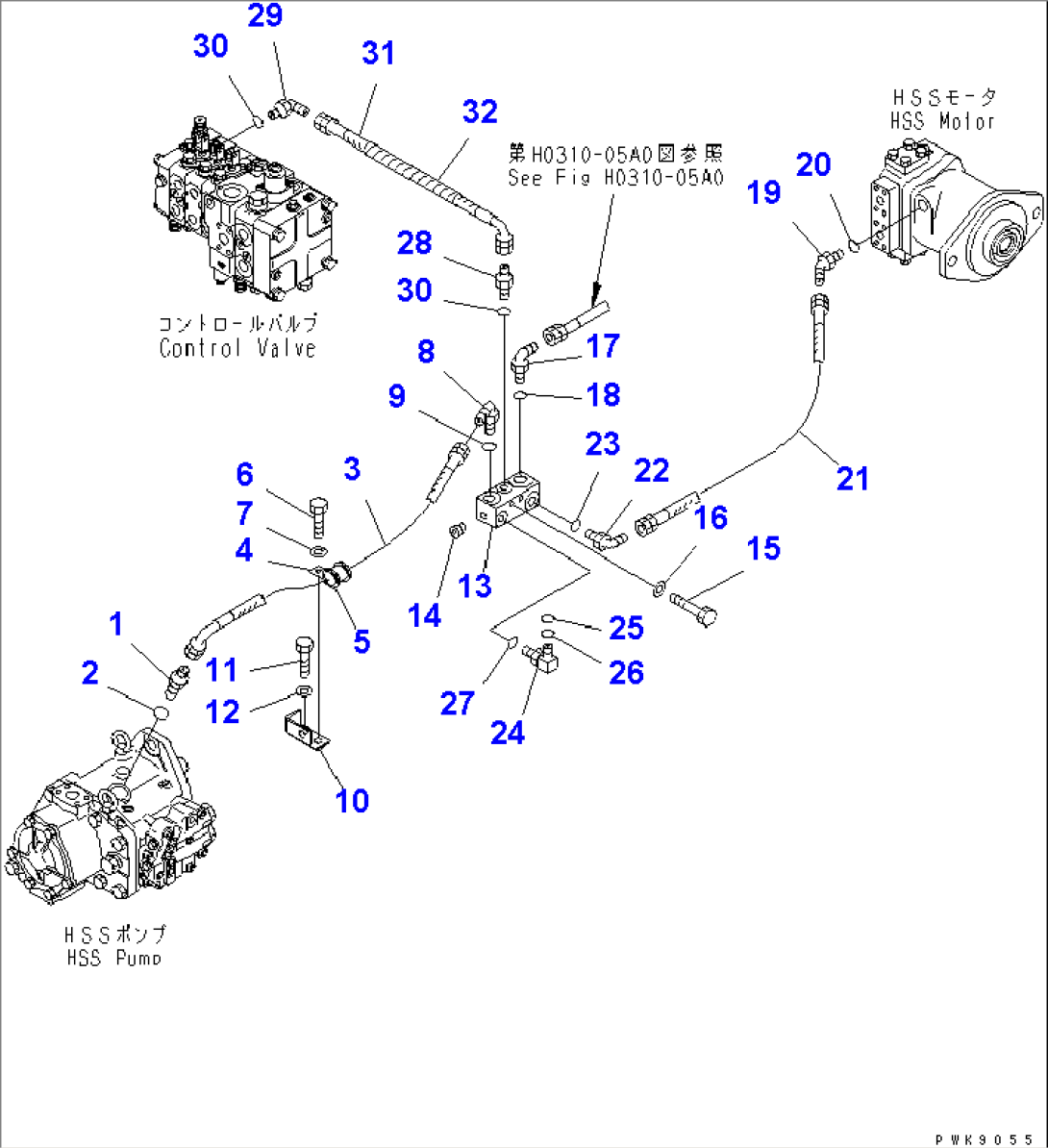

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07230-20522 | UNION | 1001- | |
| 2 | 07002-12434 | O-RING | 1001- | |
| 3 | 07623-40507 | HOSE | 1001- | |
| 4 | 04434-53412 | CLIP | 1001- | |
| 5 | 07095-20627 | CUSHION | 1001- | |
| 6 | 01010-81220 | BOLT | 1001- | |
| 7 | 01643-31232 | WASHER | 1001- | |
| 8 | 07235-10516 | ELBOW | 1001- | |
| 9 | 07002-12034 | O-RING | 1001- | |
| 10 | 134-62-61930 | BRACKET | 1001- | |
| 11 | 01010-81235 | BOLT | 1001- | |
| 12 | 01643-31232 | WASHER | 1001- | |
| 13 | 134-62-62221 | BLOCK | 1001- | |
| 14 | 07043-70312 | PLUG | 1001- | |
| 15 | 01010-81020 | BOLT | 1001- | |
| 16 | 01643-31032 | WASHER | - | |
| 17 | 07235-10628 | ELBOW | 1001- | |
| 18 | 07002-12434 | O-RING | 1001- | |
| 19 | 07236-10422 | ELBOW | 1001- | |
| 20 | 07002-12034 | O-RING | 1001- | |
| 21 | 417-62-13530 | HOSE | 1001- | |
| 22 | 07235-10420 | ELBOW | 1001- | |
| 23 | 07002-11823 | O-RING | 1001- | |
| 24 | 20Y-62-22271 | ELBOW | 1001- | |
| 25 | 201-60-11390 | O-RING | 1001- | |
| 26 | 20Y-62-19560 | O-RING | 1001- | |
| 27 | 07002-11423 | O-RING | 1001- | |
| 28 | 07230-20210 | UNION | 1001- | |
| 29 | 07235-10210 | ELBOW | 1001- | |
| 30 | 07002-11423 | O-RING | 1001- | |
| 31 | 07185-00204 | HOSE | 1001- | |
| 32 | 08210-01203 | SPIRAL TUBE | 1001- |
