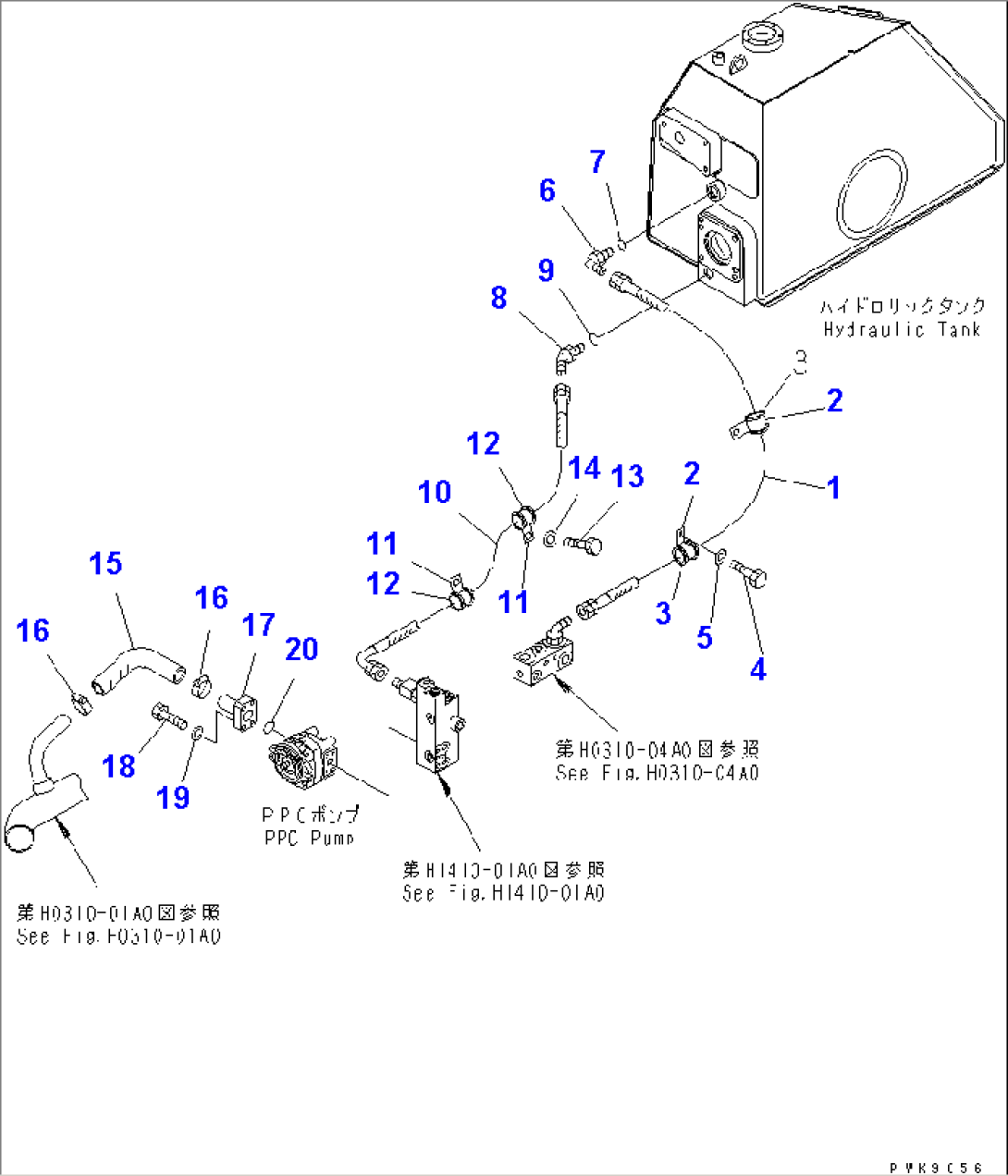

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07102-20607 | HOSE | 1001- | |
| 2 | 04434-53412 | CLIP | 1001- | |
| 2 | 04434-53412 | CLIP | 1001- | |
| 3 | 07095-20627 | CUSHION | 1001- | |
| 4 | 01010-81220 | BOLT | 1001- | |
| 5 | 01643-31232 | WASHER | 1001- | |
| 6 | 07235-10630 | ELBOW | 1001- | |
| 7 | 07002-12434 | O-RING | 1001- | |
| 8 | 07236-10422 | ELBOW | 1001- | |
| 9 | 07002-12034 | O-RING | 1001- | |
| 10 | 21J-62-13520 | HOSE | 1001- | |
| 11 | 198-03-12560 | CLIP | 1160- | |
| 11 | 198-03-12560 | CLIP | 1001-1159 | |
| 12 | 07095-20420 | CUSHION | 1001- | |
| 13 | 01010-81220 | BOLT | 1001- | |
| 14 | 01643-31232 | WASHER | 1001- | |
| 15 | 134-62-62290 | HOSE | 1001- | |
| 16 | 07289-00045 | CLAMP | 1001- | |
| 17 | 14Y-62-11721 | TUBE | 1001- | |
| 18 | 01010-80835 | BOLT | 1001- | |
| 19 | 01643-50823 | WASHER | 1001- | |
| 20 | 07000-13025 | O-RING | 1001- |
