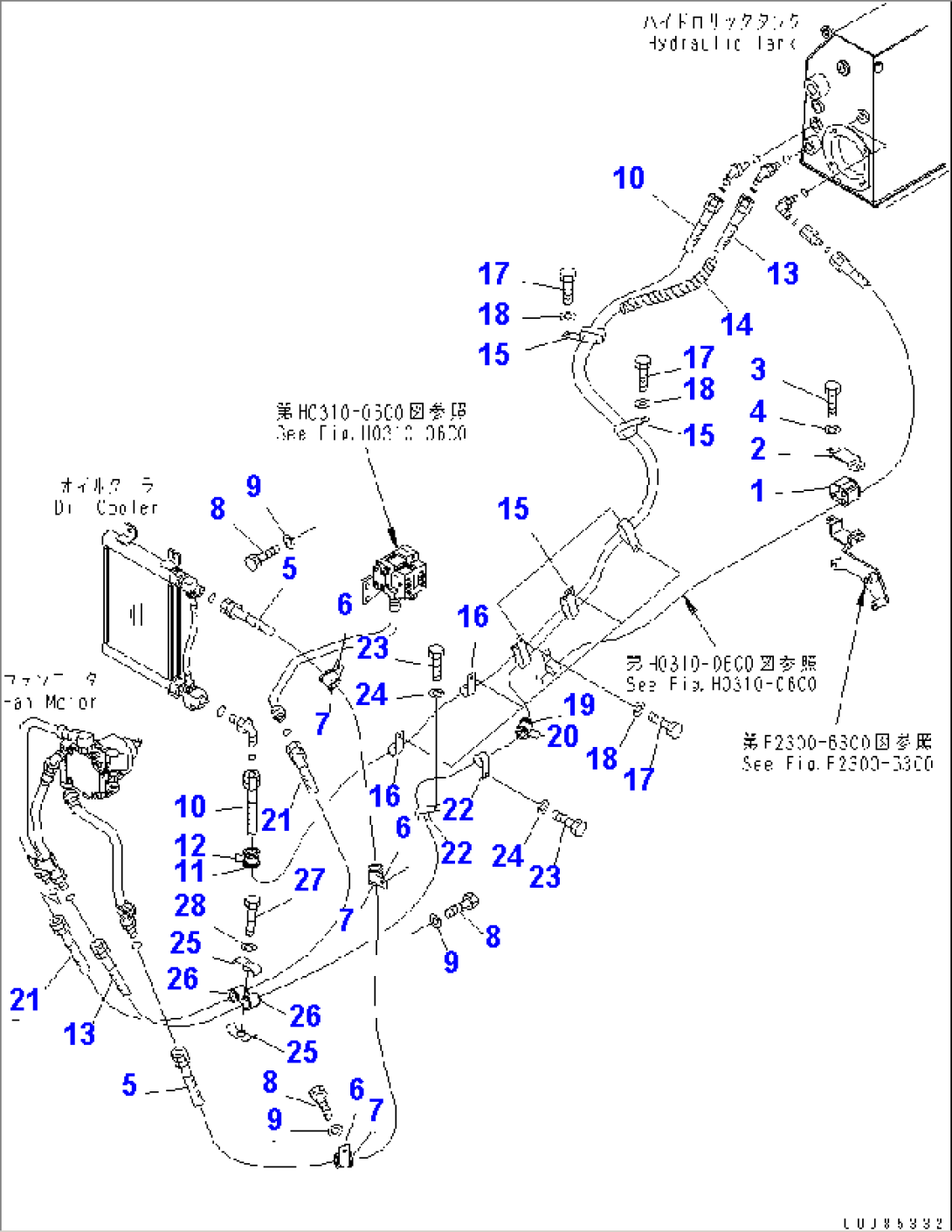

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-62-32131 | CUSHION | 69001- | |
| 2 | 14X-62-32121 | BRACKET | 69001- | |
| 3 | 01010-81025 | BOLT | 69001- | |
| 4 | 01643-31032 | WASHER | 69001- | |
| 5 | 14X-62-35331 | HOSE ASS'Y | 69001- | |
| 6 | 04434-53212 | CLIP | 69001- | |
| 7 | 07095-20522 | CUSHION | 69001- | |
| 8 | 01010-81220 | BOLT | 69001- | |
| 9 | 01643-31232 | WASHER | 69001- | |
| 10 | 14X-62-35341 | HOSE ASS'Y | 69001- | |
| 11 | 07095-00421 | CUSHION | 69001- | |
| 12 | 08034-20519 | BAND | 69001- | |
| 13 | 14X-62-35610 | HOSE ASS'Y | 69001- | |
| 14 | 08210-01804 | SPIRAL TUBE | 69001- | |
| 15 | 421-07-11550 | CLIP | 69001- | |
| 16 | 04434-52212 | CLIP | 69001- | |
| 17 | 01010-81220 | BOLT | 69001- | |
| 18 | 01643-31232 | WASHER | 69001- | |
| 19 | 07095-00423 | CUSHION | 69001- | |
| 20 | 134-03-61410 | BAND | 69001- | |
| 21 | 14X-62-35411 | HOSE ASS'Y | 69001- | |
| 22 | 04434-52312 | CLIP | 69001- | |
| 23 | 01010-81220 | BOLT | 69001- | |
| 24 | 01643-31232 | WASHER | 69001- | |
| 25 | 07094-30417 | CLAMP | 69001- | |
| 26 | 07095-00423 | CUSHION | 69001- | |
| 27 | 01010-81265 | BOLT | 69001- | |
| 28 | 01643-31232 | WASHER | 69001- |
