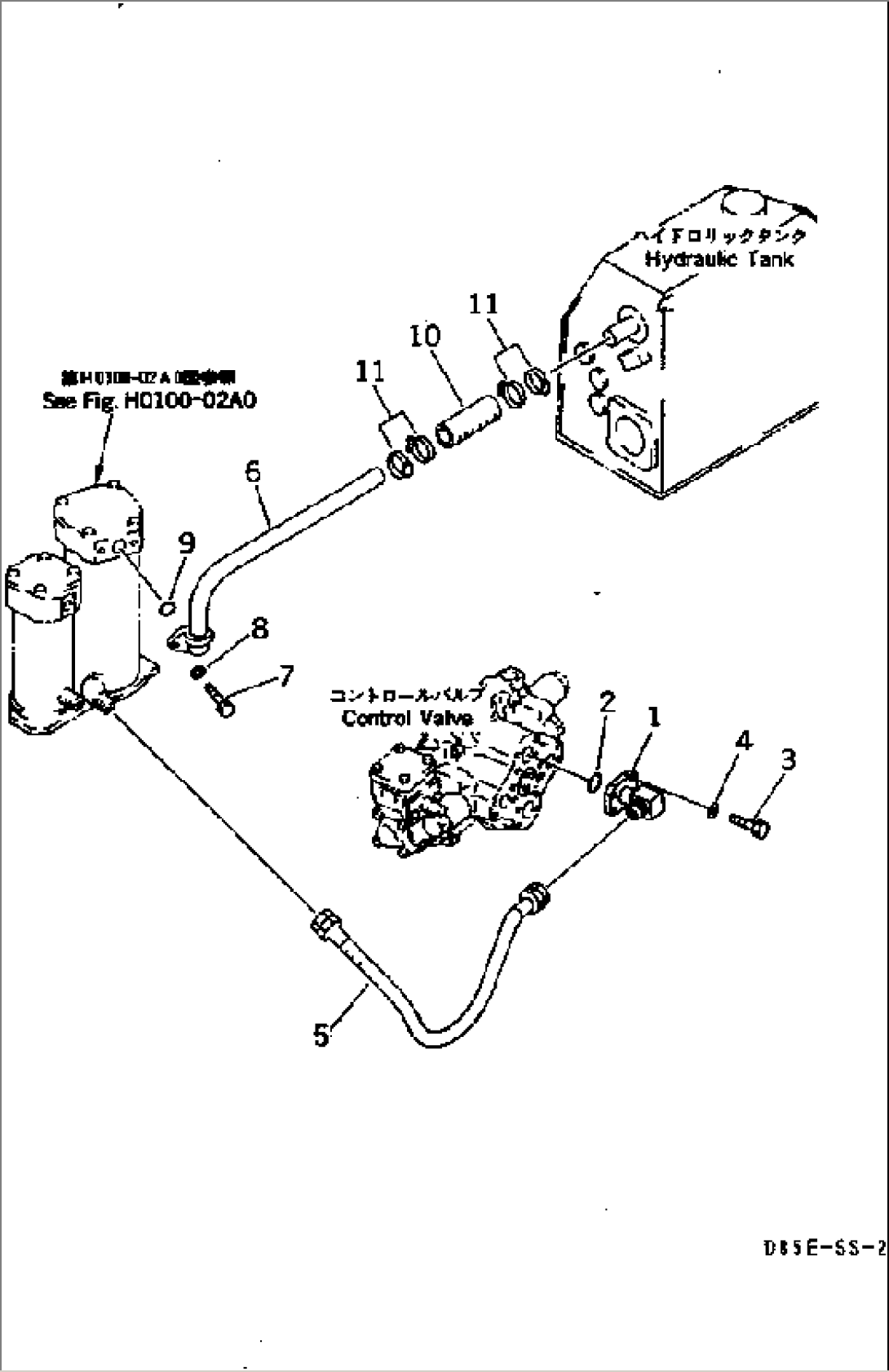

| Item | Part No. | Part Name | Qty | Serial No. |
| 2 | 07000-13038 | O-RING | 3034- | |
| 3 | 01010-81035 | BOLT | 3034- | |
| 4 | 01643-51032 | WASHER | 3034- | |
| 5 | 07102-21006 | HOSE | 3034- | |
| 6 | 14Y-62-11164 | TUBE | 3382- | |
| 6 | 14Y-62-11163 | TUBE | 3034-3381 | |
| 7 | 01010-81030 | BOLT | 3034- | |
| 8 | 01643-31032 | WASHER | 3034- | |
| 9 | 07000-03035 | O-RING | 3034- | |
| 10 | 203-62-22221 | HOSE | 3034- | |
| 11 | 07289-00045 | CLAMP | 3382- | |
| 11 | 07281-00549 | CLAMP | 3034-3381 |
