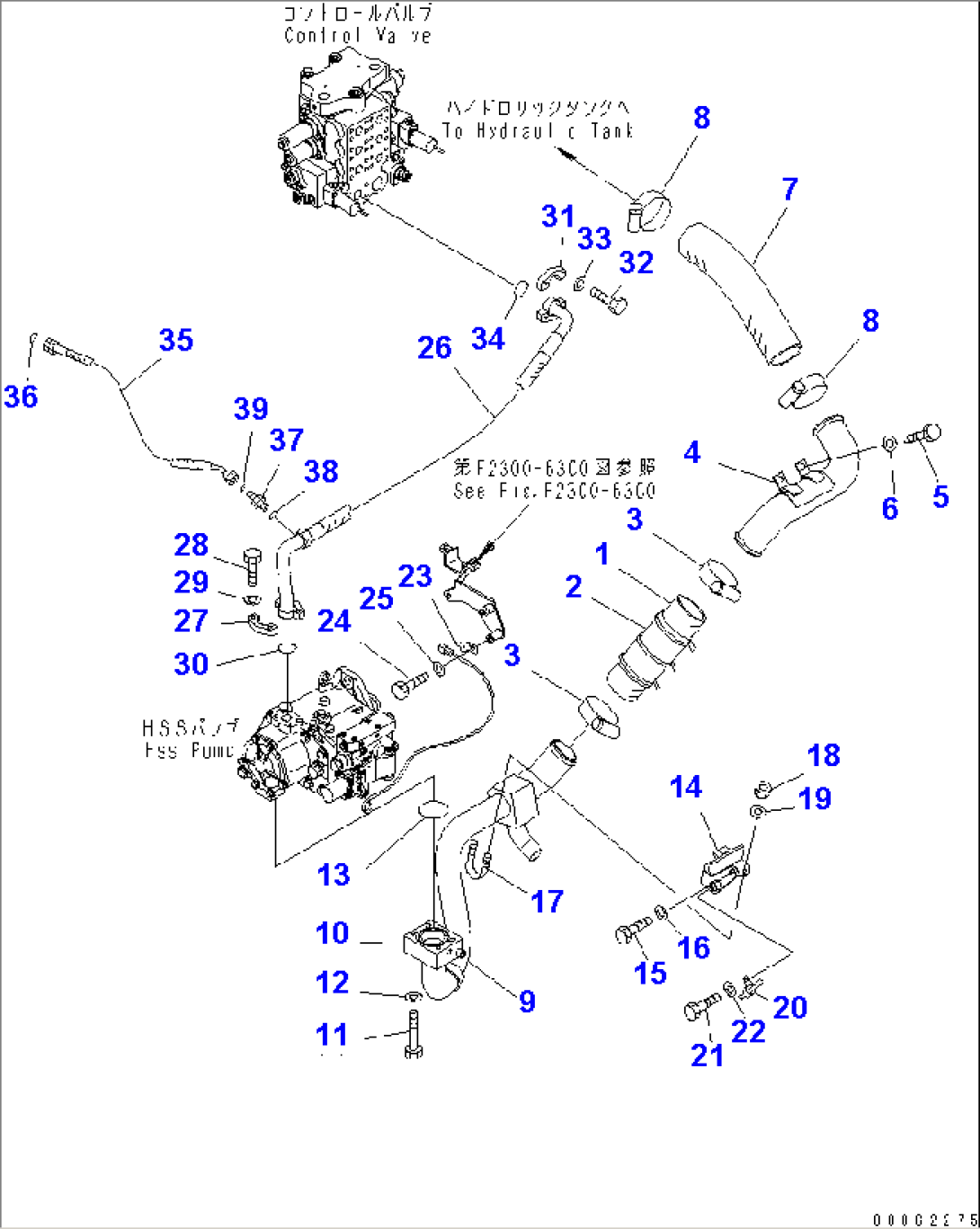

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-62-34170 | HOSE ASS'Y | 69001- | |
| 2 | 14X-62-34130 | SHEET | 69001- | |
| 3 | 07289-00095 | CLAMP | 69001- | |
| 4 | 14Y-62-31181 | TUBE | 69001- | |
| 5 | 01010-81225 | BOLT | 69001- | |
| 6 | 01643-31232 | WASHER | 69001- | |
| 7 | 14Y-62-31131 | HOSE | 69001- | |
| 8 | 07289-00095 | CLAMP | 69001- | |
| 9 | 14Z-62-31111 | TUBE | 69001- | |
| 10 | 14Z-62-31131 | FRANGE | 69001- | |
| 11 | 01010-81270 | BOLT | 69001- | |
| 12 | 01643-31232 | WASHER | 69001- | |
| 13 | 07000-12075 | O-RING | 69001- | |
| 14 | 14X-62-35520 | BRACKET | 69001- | |
| 15 | 01010-81245 | BOLT | 69001- | |
| 16 | 01643-31232 | WASHER | 69001- | |
| 17 | 07283-37060 | CLIP | 69001- | |
| 18 | 01597-01009 | NUT | 69001- | |
| 19 | 01643-31032 | WASHER | 69001- | |
| 20 | 04434-51010 | CLIP | 69001- | |
| 21 | 01010-81016 | BOLT | 69001- | |
| 22 | 01643-31032 | WASHER | 69001- | |
| 23 | 08193-20010 | CLIP | 69001- | |
| 24 | 01010-81016 | BOLT | 69001- | |
| 25 | 01643-31032 | WASHER | 69001- | |
| 26 | 14Z-62-31152 | HOSE | 69001- | |
| 27 | 07371-31049 | FLANGE | 69001- | |
| 28 | 07372-21035 | BOLT | 69001- | |
| 29 | 01643-51032 | WASHER | 69001- | |
| 30 | 07000-13032 | O-RING | 69001- | |
| 31 | 07371-51260 | FLANGE | 69001- | |
| 32 | 01010-81245 | BOLT | 69001- | |
| 33 | 01643-31232 | WASHER | 69001- | |
| 34 | 07000-13038 | O-RING | 69001- | |
| 35 | 14X-62-33560 | HOSE | 69001- | |
| 36 | 02896-11008 | O-RING | 69001- | |
| 37 | 14X-62-33330 | NIPPLE | 69001- | |
| 38 | 07002-11023 | O-RING | 69001- | |
| 39 | 02896-11008 | O-RING | 69001- |
