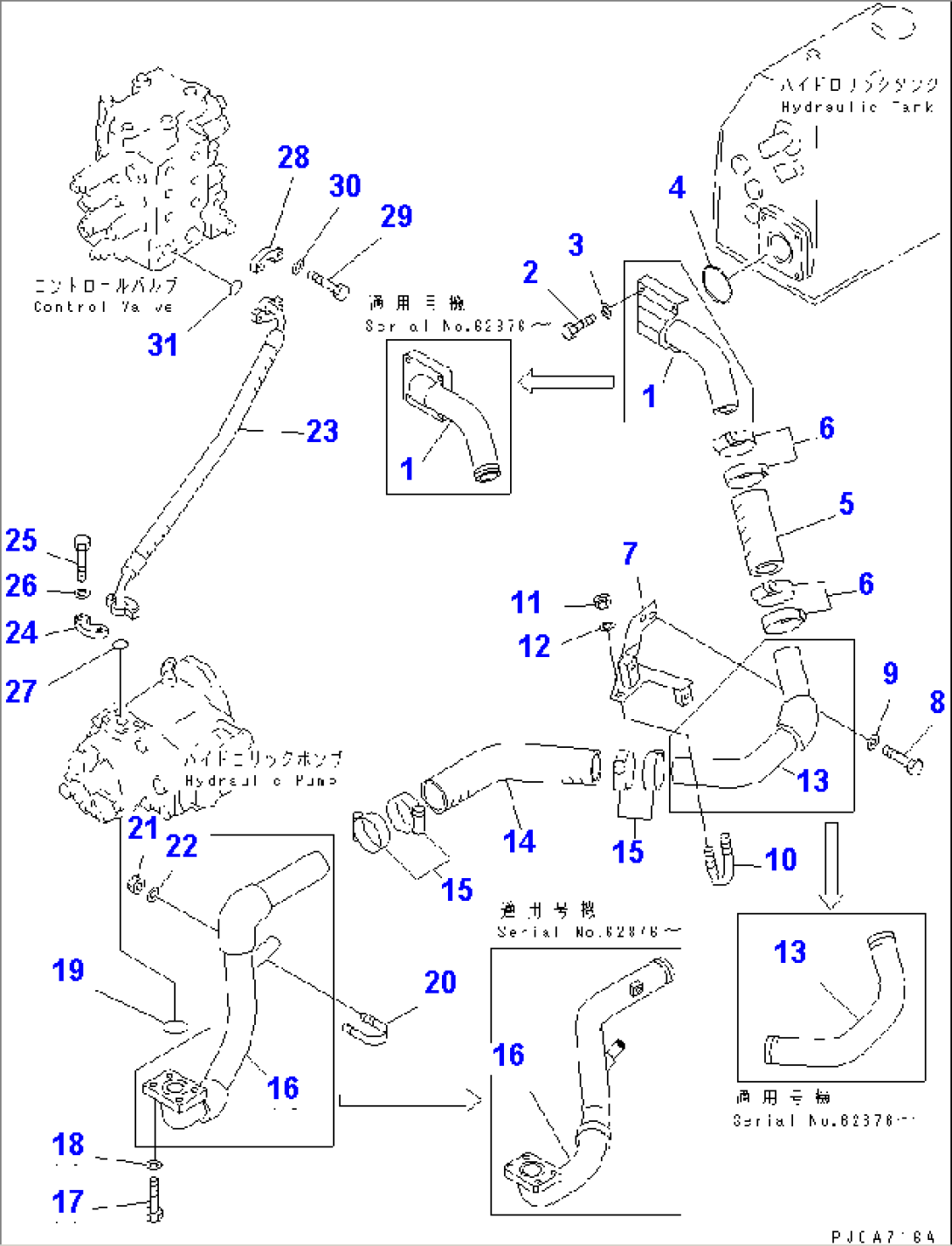

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14Y-62-21110 | PIPE | 65001- | |
| 14Y-62-11113 | PIPE | 62876-65000 | ||
| 14Y-62-11112 | PIPE | 60884-62875 | ||
| 2 | 01010-81050 | BOLT | 60884- | |
| 3 | 01643-31032 | WASHER | 60884- | |
| 4 | 07000-02090 | O-RING | 60884- | |
| 5 | 07260-25818 | HOSE | 60884- | |
| 6 | 07289-00070 | CLAMP | 65001- | |
| 07281-00809 | CLAMP | 60884-65000 | ||
| 7 | 14Y-62-21120 | BRACKET | 65001- | |
| 14Y-62-11122 | BRACKET | 60884-65000 | ||
| 8 | 01010-81225 | BOLT | 60884- | |
| 9 | 01643-31232 | WASHER | 60884- | |
| 10 | 07283-26155 | CLIP | 60884- | |
| 11 | 01599-01011 | NUT | 60884- | |
| 12 | 01643-31032 | WASHER | 60884- | |
| 13 | 14Y-62-21180 | PIPE | 65001- | |
| 14Y-62-11183 | PIPE | 62876-65000 | ||
| 14Y-62-11182 | PIPE | 60884-62875 | ||
| 14 | 14Y-62-11131 | HOSE | 60884- | |
| 15 | 07289-00070 | CLAMP | 65001- | |
| 07281-00809 | CLAMP | 60884-65000 | ||
| 16 | 14Z-62-11113 | PIPE | 62876- | |
| 14Z-62-11112 | PIPE | 60884-62875 | ||
| 17 | 01010-81240 | BOLT | 62876- | |
| 01010-81235 | BOLT | 60884-62875 | ||
| 18 | 01643-51232 | WASHER | 60884- | |
| 19 | 07000-02075 | O-RING | 60884- | |
| 20 | 07283-26155 | CLIP | 60884- | |
| 21 | 01599-01011 | NUT | 60884- | |
| 22 | 01643-31032 | WASHER | 60884- | |
| 23 | 14Z-62-11151 | HOSE | 60884- | |
| 24 | 07371-31049 | FLANGE | 60884- | |
| 25 | 07372-21035 | BOLT | 60884- | |
| 26 | 01643-51032 | WASHER | 60884- | |
| 27 | 07000-13032 | O-RING | 60884- | |
| 28 | 07371-51260 | FLANGE | 60884- | |
| 29 | 01010-81245 | BOLT | 60884- | |
| 30 | 01643-31232 | WASHER | 60884- | |
| 31 | 07000-13038 | O-RING | 60884- |
