| Item | Part No. | Part Name | Qty | Serial No. |
| (708-1H-00030) | PUMP ASS'Y | 55001- | ||

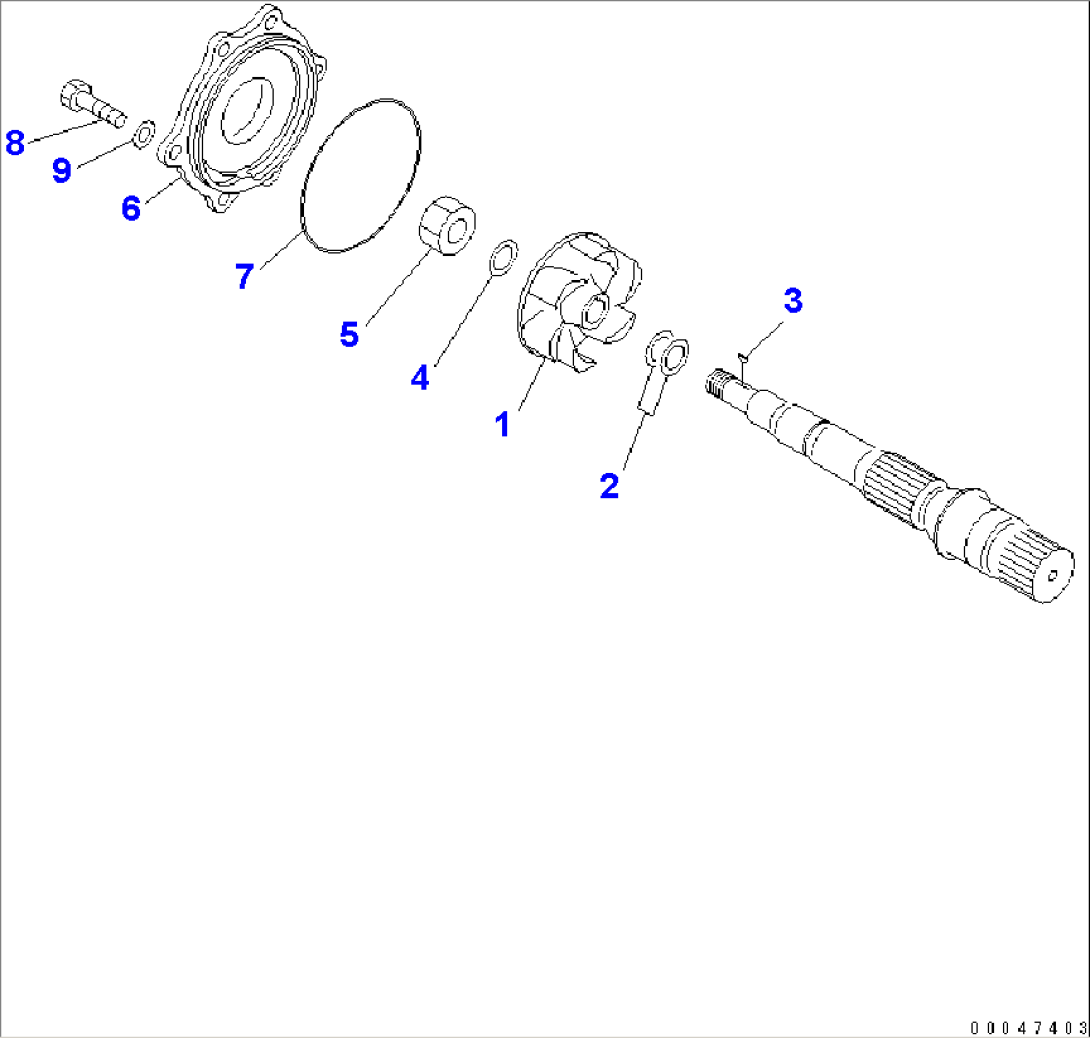

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-08A0. | ||||
| (708-1H-01031) | PUMP SUB ASS'Y | 55001- | ||
| 1 | (\7\708-1H-21630) | IMPELLER | 55001- | |
| 2 | (\7\708-1E-05010) | WASHER KIT | 55001- | |
| 2 | \6\ | WASHER, 2.7MM | 55001- | |
| 2 | \6\ | WASHER, 3.0MM | 55001- | |
| 2 | \6\ | WASHER, 3.3MM | 55001- | |
| 2 | \6\ | WASHER, 3.6MM | 55001- | |
| 3 | (\7\04010-00522) | KEY | 55001- | |
| 4 | (\7\708-1E-11640) | WASHER | 55001- | |
| 5 | (\7\01583-12414) | NUT | 55001- | |
| 6 | (\7\708-1H-21622) | COVER | 55001- | |
| 7 | (\7\708-1H-32530) | O-RING | 55001- | |
| 8 | (\7\01010-81230) | BOLT | 55001- | |
| 9 | (\7\01643-31232) | WASHER | 55001- |
