| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07000-02130 | O-RING | 60001- | |
| 2 | 01010-51645 | BOLT | 60001- | |
| 3 | 01643-31645 | WASHER | 60001- | |
| 4 | 07000-02085 | O-RING | 60001- | |
| 5 | 01010-51030 | BOLT | 60001- | |
| 6 | 01643-31032 | WASHER | 60001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D65p 12 s/n 60001 60883
- Hydraulic system
- Hydraulic pump (mount)
Поиск по каталогу

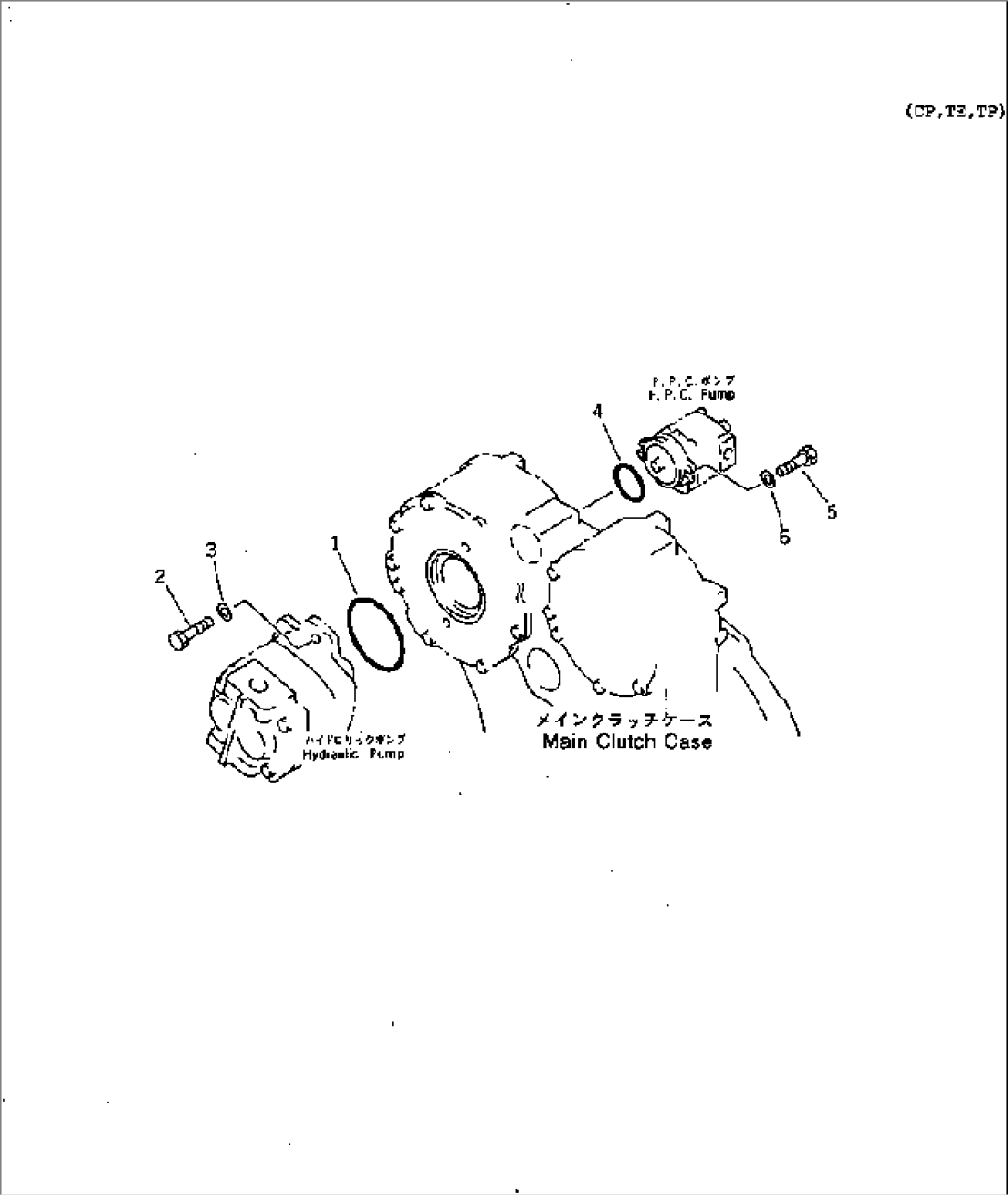

HYDRAULIC PUMP (MOUNT)
