| Item | Part No. | Part Name | Qty | Serial No. |

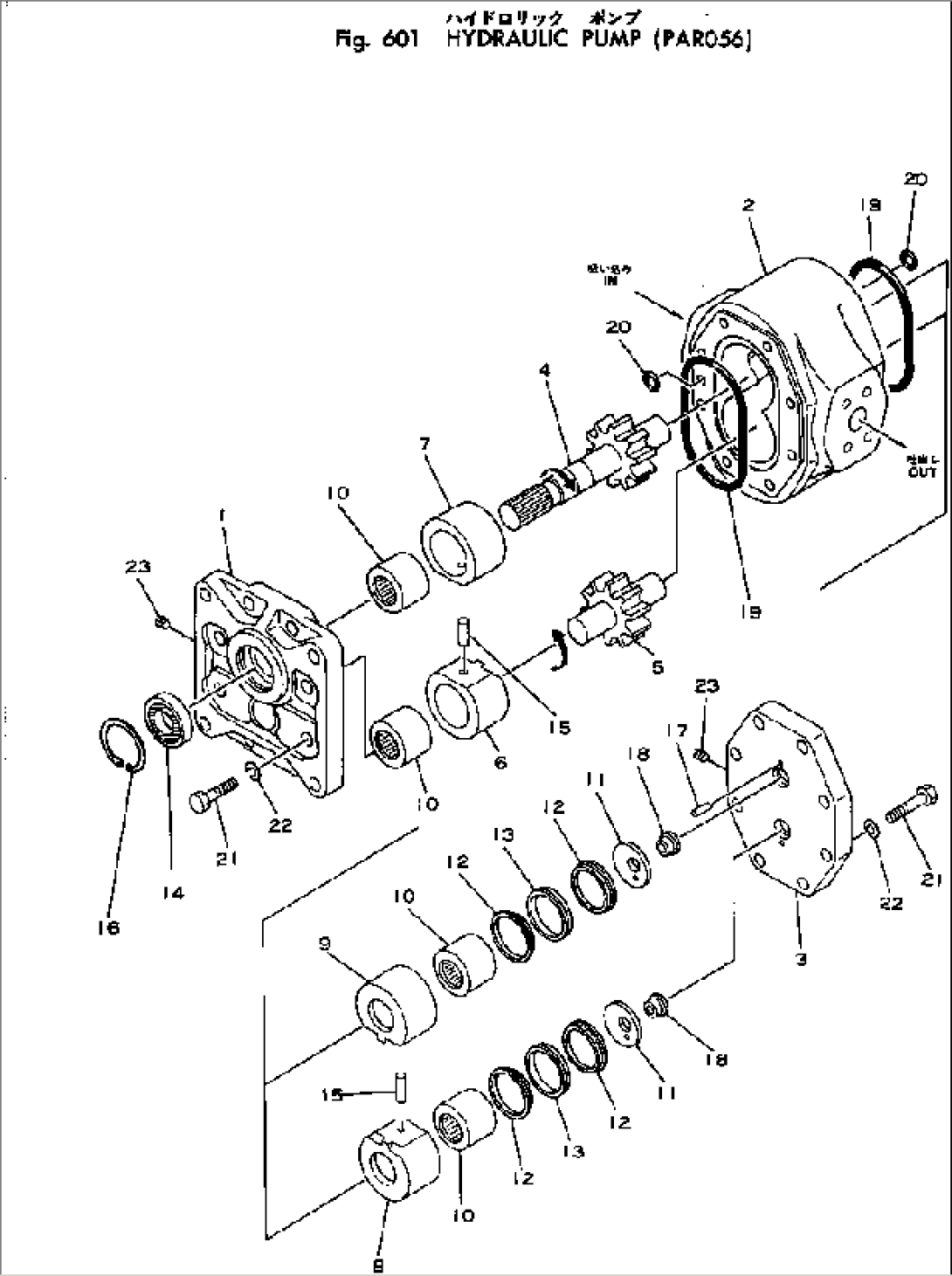

| 07435-67101 | PUMP ASS'Y,(PAR056-101) | 1002- | ||
| 1 | (\7\07435-67011) | BRACKET | 1002- | |
| 2 | (\7\07435-66021) | HOUSING,PUMP | 1002- | |
| 3 | (\7\07435-66030) | COVER,HOUSING | 1002- | |
| 4 | (\7\07435-66040) | GEAR,DRIVE | 1002- | |
| 5 | (\7\07435-66050) | GEAR,DRIVEN | 1002- | |
| 6 | (\7\07435-66063) | BUSHING | 1002- | |
| 7 | (\7\07435-66160) | BUSHING | 1002- | |
| 8 | (\7\07435-66072) | BUSHING | 1002- | |
| 9 | (\7\07435-66272) | BUSHING | 1002- | |
| 10 | (\7\07435-66181) | BEARING,NEEDLE | 1002- | |
| 11 | (\7\07435-66122) | PLATE,SEAL | 1002- | |
| 12 | (\7\07435-66091) | RING,BACK-UP | 1002- | |
| 13 | (\7\07433-66731) | U-RING | 1002- | |
| 14 | 07434-11162 | SEAL,OIL | 1002- | |
| 15 | (\7\07429-66190) | PIN | 1002- | |
| 16 | 04065-05020 | RING,SNAP | 1002- | |
| 17 | (\7\04025-00412) | PIN,ROLL | 1002- | |
| 18 | (\7\07433-66090) | COLLAR | 1002- | |
| 19 | (\7\07000-13120) | O-RING | 1002- | |
| 20 | (\7\07000-12015) | O-RING | 1002- | |
| 21 | (\7\07433-66080) | BOLT | 1002- | |
| 22 | (\7\01602-21236) | WASHER | 1002- | |
| 23 | (\7\07042-00108) | PLUG | 1002- |
