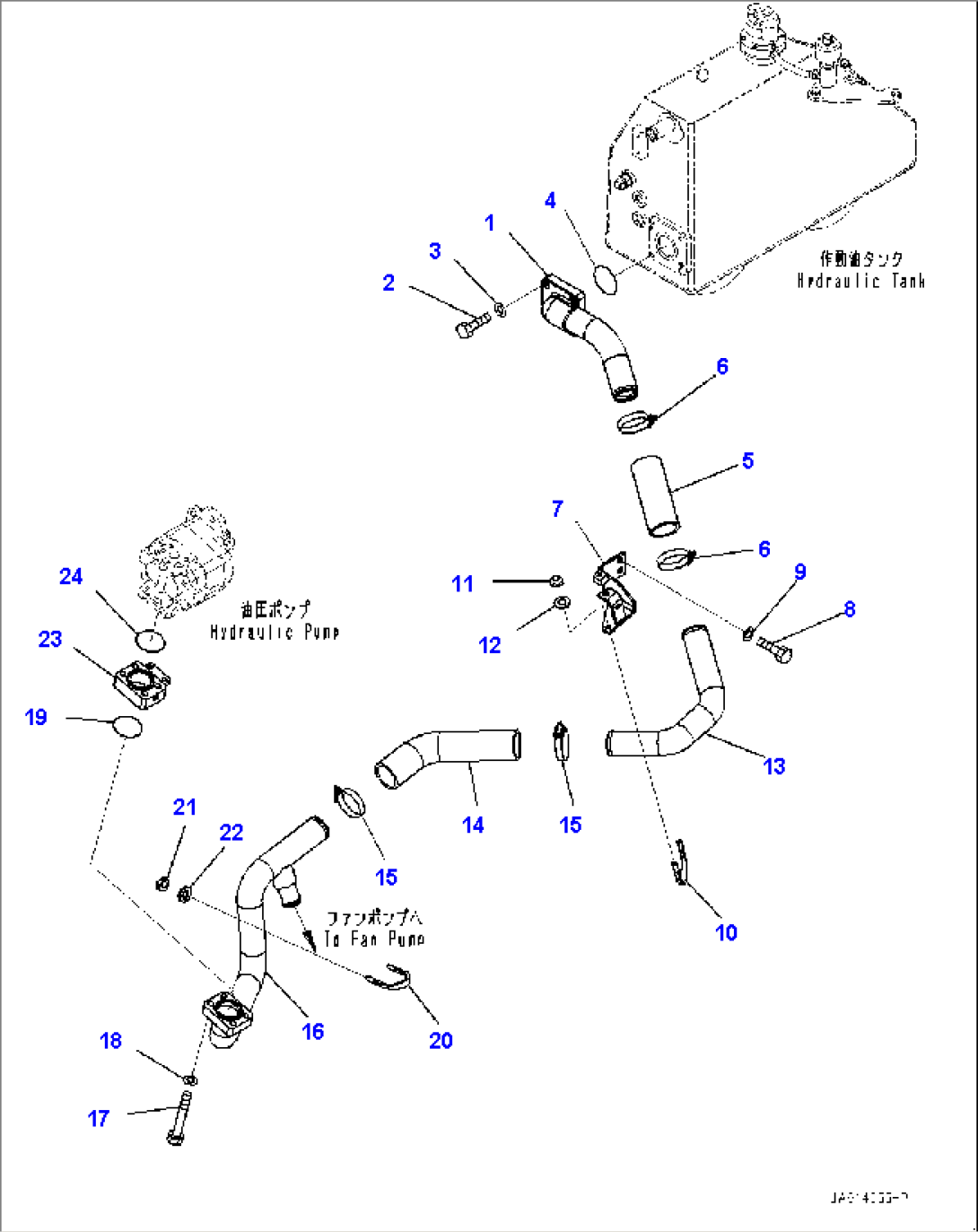

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14Y-62-21110 | Pipe | 10001- | |
| 2 | 01010-81050 | Bolt | 10001- | |
| 3 | 01643-31032 | Washer | 10001- | |
| 4 | 07000-12090 | O-ring | 10001- | |
| 5 | 07260-25818 | Hose | 10001- | |
| 6 | 07289-00070 | Clamp | 10001- | |
| 7 | 14U-62-22631 | Bracket | 10001- | |
| 8 | 01010-81225 | Bolt | 10001- | |
| 9 | 01643-31232 | Washer | 10001- | |
| 10 | 07283-36155 | Clip | 10001- | |
| 11 | 01597-01009 | Nut | 10001- | |
| 12 | 01643-31032 | Washer | 10001- | |
| 13 | 14Y-62-21180 | Pipe | 10001- | |
| 14 | 14Y-62-11131 | Hose | 10001- | |
| 15 | 07289-00070 | Clamp | 10001- | |
| 16 | 14U-62-22422 | Pipe | 10001- | |
| 17 | 01010-81280 | Bolt | 10001- | |
| 18 | 01643-51232 | Washer | 10001- | |
| 19 | 07000-12060 | O-ring | 10001- | |
| 20 | 07283-36155 | Clip | 10001- | |
| 21 | 01597-01009 | Nut | 10001- | |
| 22 | 01643-31032 | Washer | 10001- | |
| 23 | 14U-62-22731 | Flange | 10001- | |
| 24 | 07000-12060 | O-ring | 10001- |
