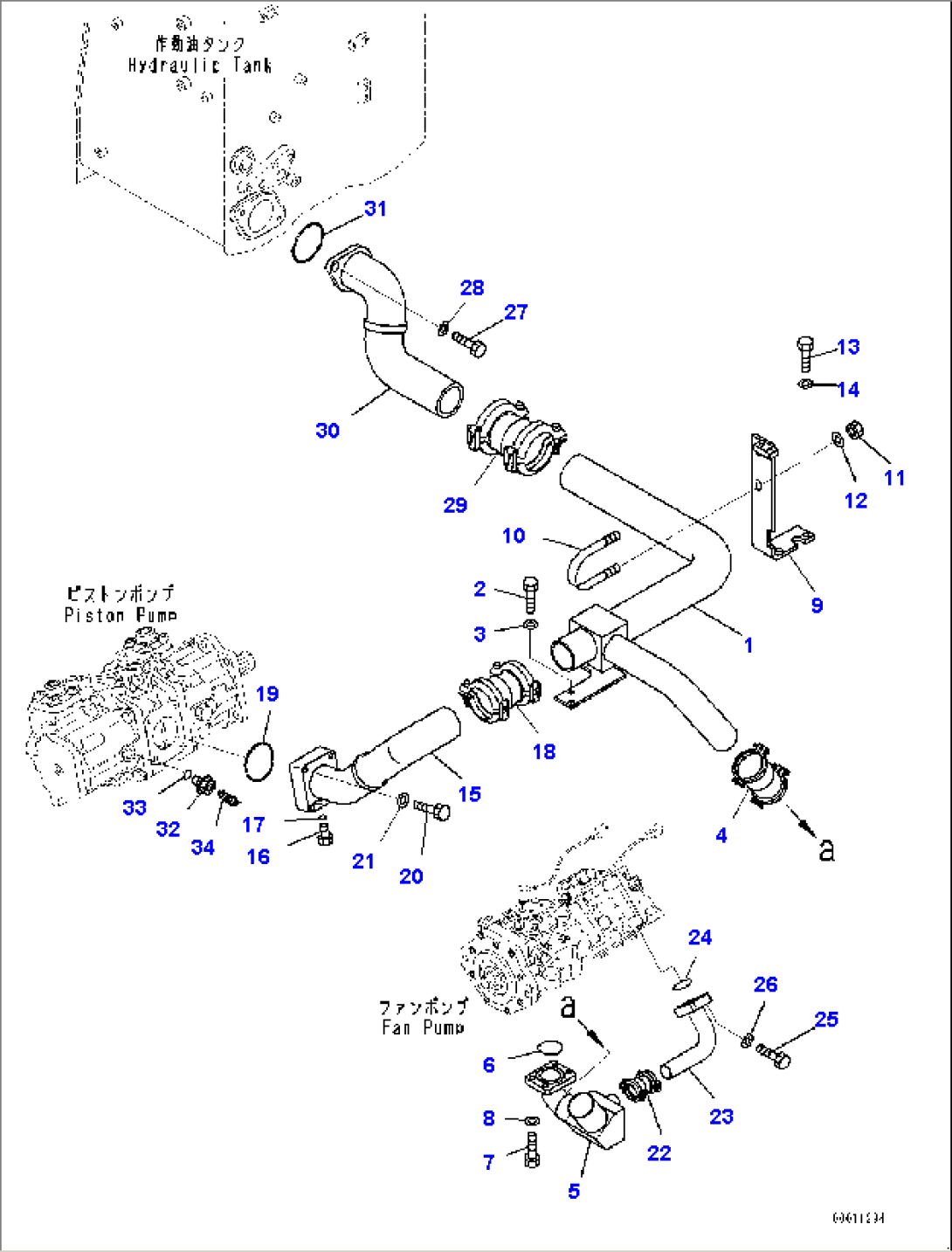

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 198-60-61121 | Tube | 30147- | |
| 2 | 01010-81240 | Bolt | 30147- | |
| 3 | 01643-31232 | Washer | 30147- | |
| 4 | 07332-02400 | Coupling | 30147- | |
| 4 | 07332-52400 | Gasket | 30147- | |
| 4 | 07332-62400 | Clamp | 30147- | |
| 5 | 198-60-61141 | Tube | 30147- | |
| 6 | 07000-E2075 | O-ring | 30147- | |
| 7 | 01010-81240 | Bolt | 30147- | |
| 8 | 01643-31232 | Washer | 30147- | |
| 9 | 198-60-61171 | Bracket | 30147- | |
| 10 | 07283-31087 | Clip, Pipe | 30147- | |
| 11 | 01597-01211 | Nut | 30147- | |
| 12 | 01643-31232 | Washer | 30147- | |
| 13 | 01010-81235 | Bolt | 30147- | |
| 14 | 01643-31232 | Washer | 30147- | |
| 15 | 198-60-61132 | Tube | 30147- | |
| 16 | 07040-12412 | Plug | 30147- | |
| 17 | 07002-22434 | O-ring | 30147- | |
| 18 | 07332-03000 | Coupling | 30147- | |
| 19 | 07000-E2100 | O-ring | 30147- | |
| 20 | 01010-81270 | Bolt | 30147- | |
| 21 | 01643-31232 | Washer | 30147- | |
| 22 | 07332-01200 | Coupling | 30147- | |
| 23 | 198-60-61151 | Tube | 30147- | |
| 24 | 07000-E3048 | O-ring | 30147- | |
| 25 | 01010-81245 | Bolt | 30147- | |
| 26 | 01643-31232 | Washer | 30147- | |
| 27 | 01010-81645 | Bolt | 30147- | |
| 28 | 21T-54-16150 | Washer | 30147- | |
| 29 | 07332-03400 | Coupling | 30147- | |
| 30 | 198-60-61111 | Tube | 30147- | |
| 31 | 07000-E2110 | O-ring | 30147- | |
| 32 | 706-87-40150 | Plug | 30147- | |
| 33 | 07002-62434 | O-ring | 30147- | |
| 34 | 20B-27-11210 | Bleeder | 30147- |
