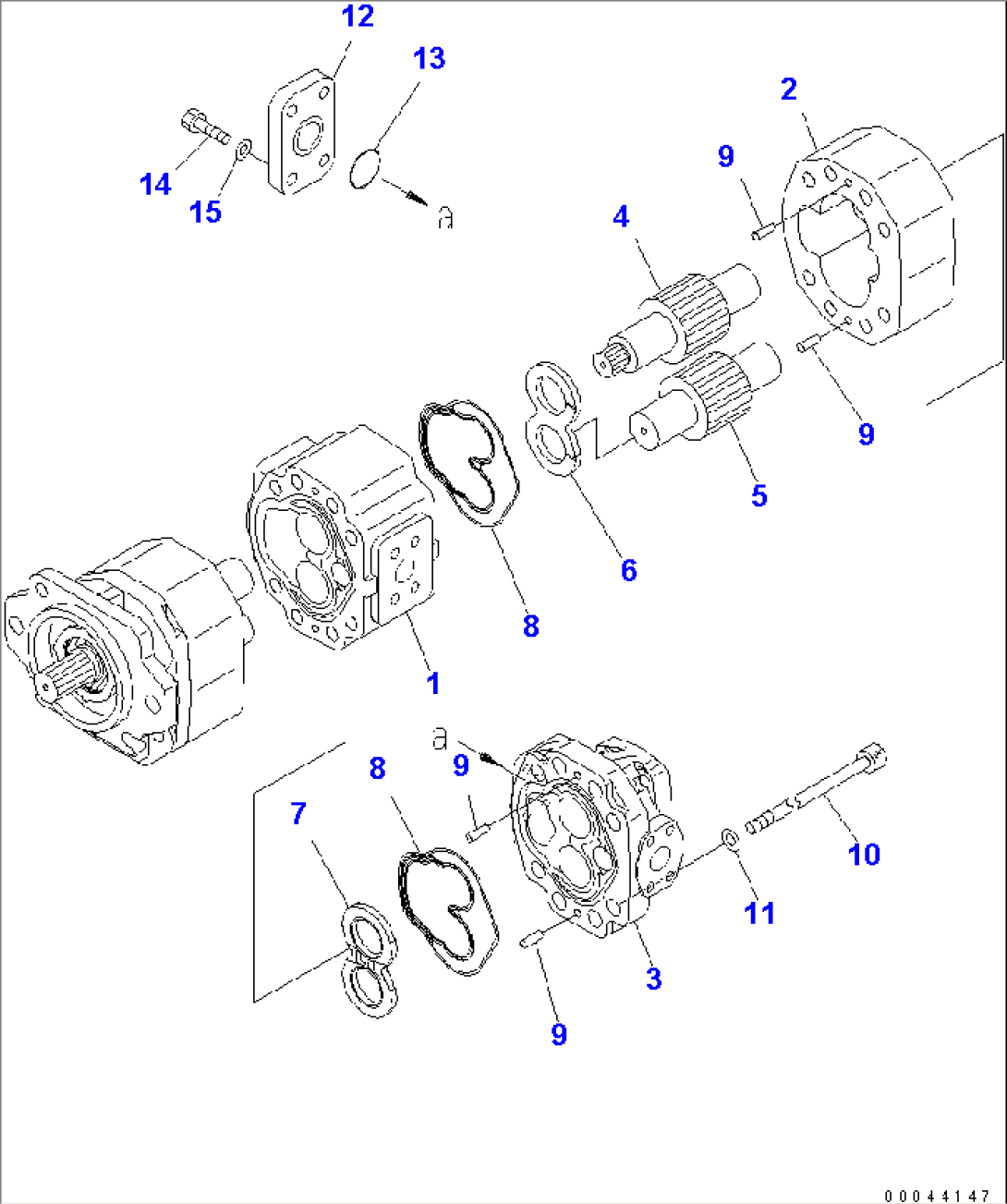

| Item | Part No. | Part Name | Qty | Serial No. |
| (705-95-03010) | PUMP ASS'Y,SDR(30)63+63 | 11001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-41A1 AND Y1610-42A1. | ||||
| (\7\705-94-80211) | CARRIER ASS'Y | 11001- | ||
| 1 | (\7\705-94-80221) | CARRIER | 11001- | |
| 1 | (\7\705-94-80610) | BUSHING | 11001- | |
| 1 | (\7\705-94-80620) | BUSHING | 11001- | |
| 2 | (\7\705-94-36021) | CASE | 11001- | |
| 3 | (\7\705-94-80111) | HOUSING ASS'Y | 11001- | |
| 3 | (\7\705-94-80610) | BUSHING | 11001- | |
| 3 | (\7\705-94-80620) | BUSHING | 11001- | |
| 4 | (\7\705-94-36820) | GEAR,DRIVE | 11001- | |
| 5 | (\7\705-94-36510) | GEAR,DRIVEN | 11001- | |
| 6 | 705-94-80711 | PLATE | 11001- | |
| 7 | 705-94-80721 | PLATE | 11001- | |
| 8 | 705-94-80770 | SEAL,RING | 11001- | |
| 9 | 04020-00820 | PIN,DOWEL | 11001- | |
| 10 | 705-94-84140 | BOLT | 11001- | |
| 11 | 01643-31445 | WASHER | 11001- | |
| 12 | 705-17-03880 | PLATE | 11001- | |
| 13 | 07000-E2055 | O-RING | 11001- | |
| 14 | 01010-81230 | BOLT | 11001- | |
| 15 | 01643-51232 | WASHER | 11001- |
