| Item | Part No. | Part Name | Qty | Serial No. |
| (705-52-31130) | PUMP ASS'Y,(SAR80+14) | 50001- | ||

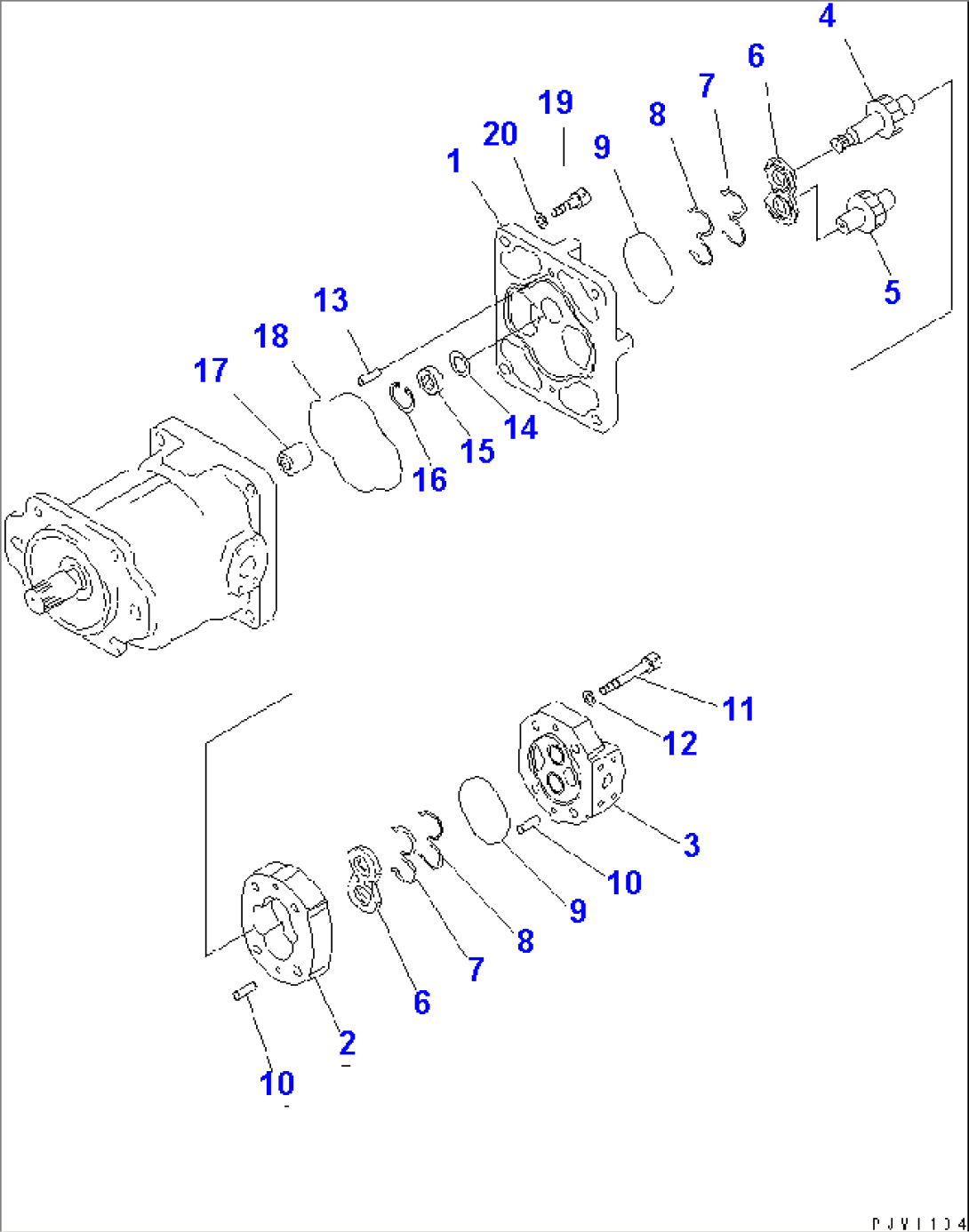

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-11A1 AND Y1610-12A1. | ||||
| 705-34-23640 | PUMP ASS'Y,(SAR14) | 50001- | ||
| 1 | (\7\705-19-01540) | BRACKET | 50001- | |
| (\7\705-17-01350) | BUSHING,PLANE | 50001- | ||
| 2 | (\7\705-17-23010) | CASE,GEAR | 50001- | |
| 3 | (\7\705-17-01120) | COVER ASS'Y | 50001- | |
| (\7\705-17-01350) | BUSHING,PLANE | 50001- | ||
| 4 | (\7\705-17-23450) | GEAR,DRIVE | 50001- | |
| 5 | (\7\705-17-23510) | GEAR,DRIVEN | 50001- | |
| 6 | 705-17-01610 | PLATE,SIDE | 50001- | |
| 7 | 705-67-01470 | SEAL,SEAL | 50001- | |
| 8 | 705-67-01440 | RING,BACK-UP | 50001- | |
| 9 | 705-67-01381 | O-RING | 50001- | |
| 10 | 04020-00820 | PIN,DOWEL | 50001- | |
| 11 | 01252-61275 | BOLT | 50001- | |
| 12 | 01643-51232 | WASHER | 50001- | |
| 13 | 04020-01228 | PIN,DOWEL | 50001- | |
| 14 | 705-17-01860 | PLATE | 50001- | |
| 15 | 705-17-01950 | SEAL,OIL | 50001- | |
| 16 | 04065-03212 | RING,SNAP | 50001- | |
| 17 | 705-19-01330 | COUPLING | 50001- | |
| 18 | 705-17-03381 | O-RING | 50001- | |
| 19 | 01252-61445 | BOLT | 50001- | |
| 20 | 705-17-04980 | WASHER | 50001- |
