| Item | Part No. | Part Name | Qty | Serial No. |
| 705-52-31250 | PUMP ASS'Y,(SAR80+18) | 11001- | ||

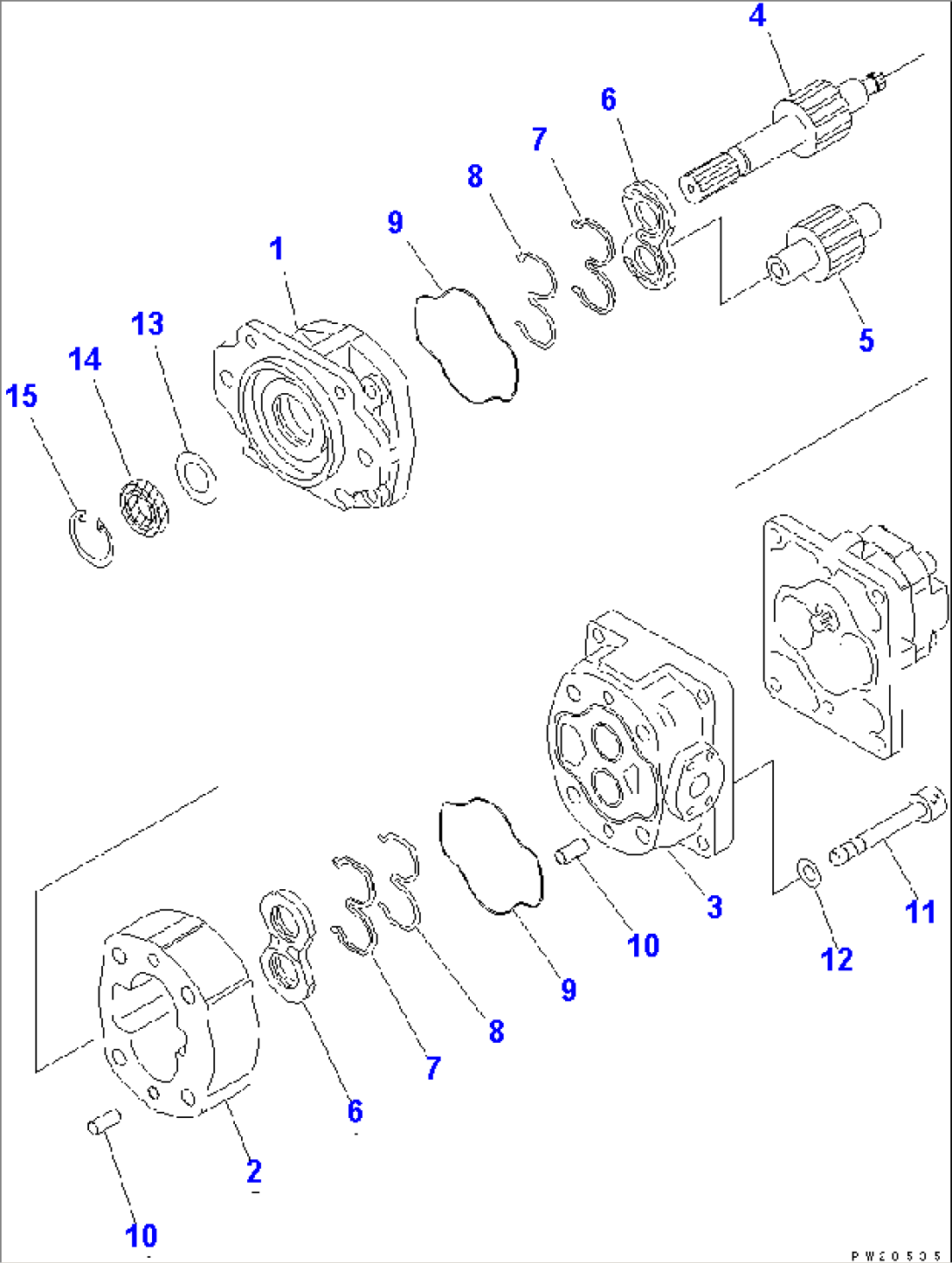

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-11A1 AND Y1610-12A1. | ||||
| 705-22-38150 | PUMP ASS'Y,(SAR80) | 11001- | ||
| 1 | (\7\705-17-03021) | BRACKET ASS'Y | 11001- | |
| 1 | (\7\705-17-03352) | BEARING,PLANE | 11001- | |
| 2 | (\7\705-17-38050) | CASE,GEAR | 11001- | |
| 3 | (\7\705-17-03220) | CARRIER ASS'Y | 11001- | |
| 3 | (\7\705-17-03352) | BEARING,PLANE | 11001- | |
| 4 | (\7\705-19-38430) | GEAR,DRIVE | 11001- | |
| 5 | (\7\705-17-38511) | GEAR,DRIVEN | 11001- | |
| 6 | 705-17-03610 | PLATE,SIDE | 11001- | |
| 7 | 705-17-03473 | SEAL | 11001- | |
| 8 | 705-17-03443 | RING,BACK-UP | 11001- | |
| 9 | 705-17-03381 | O-RING | 11001- | |
| 10 | 04020-01228 | PIN,DOWEL | 11001- | |
| 11 | 01253-61625 | BOLT | 11001- | |
| 12 | 01643-51645 | WASHER | 11001- | |
| 13 | 705-17-03870 | PLATE | 11001- | |
| 14 | 705-17-03811 | SEAL,OIL | 11001- | |
| 15 | 04065-05220 | RING,SNAP | 11001- |
