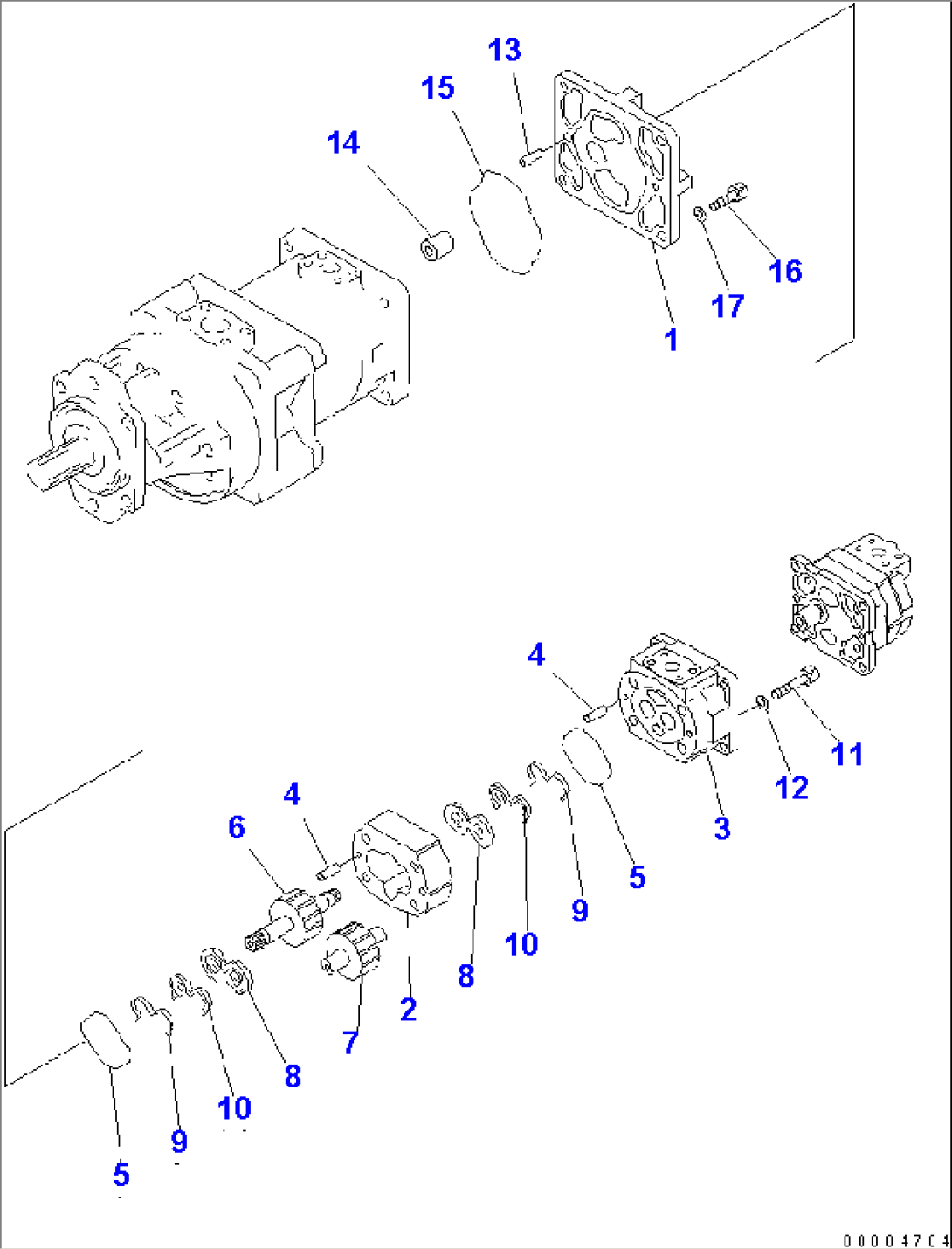

| Item | Part No. | Part Name | Qty | Serial No. |
| (705-58-45040) | PUMP ASS'Y,(SAR4-112+3-112+1-100+1-14) | 52001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-31A3 TO Y1610-34A3. | ||||
| 705-34-40340 | PUMP ASS'Y,(SAR100) | 52001- | ||
| 1 | (\7\705-18-03520) | BRACKET | 52001- | |
| 1 | (\7\705-18-03350) | BUSHING | 52001- | |
| 2 | (\7\705-17-40010) | CASE,GEAR | 52001- | |
| 3 | (\7\705-18-03240) | CARRIER | 52001- | |
| 3 | (\7\705-18-03350) | BUSHING | 52001- | |
| 4 | (\7\04020-01228) | PIN,DOWEL | 52001- | |
| 5 | (\7\705-17-03381) | O-RING | 52001- | |
| 6 | (\7\705-19-40660) | GEAR,DRIVE | 52001- | |
| 7 | (\7\705-17-40810) | GEAR,DRIVEN | 52001- | |
| 8 | (\7\705-17-03610) | PLATE,SIDE | 52001- | |
| 9 | (\7\705-17-03443) | RING,BACK-UP | 52001- | |
| 10 | (\7\705-17-03473) | SEAL,RING | 52001- | |
| 11 | (\7\01253-61635) | BOLT | 52001- | |
| 12 | (\7\01643-51645) | WASHER | 52001- | |
| 13 | (\7\04020-01228) | PIN,DOWEL | 52001- | |
| 14 | 705-17-03330 | COUPLING | 52001- | |
| 15 | 705-17-03381 | O-RING | 52001- | |
| 16 | 01252-61450 | BOLT | 52001- | |
| 17 | 705-17-04980 | WASHER | 52001- |
