| Item | Part No. | Part Name | Qty | Serial No. |
| (705-51-20390) | PUMP ASS'Y (SAL32+25) | 63001- | ||

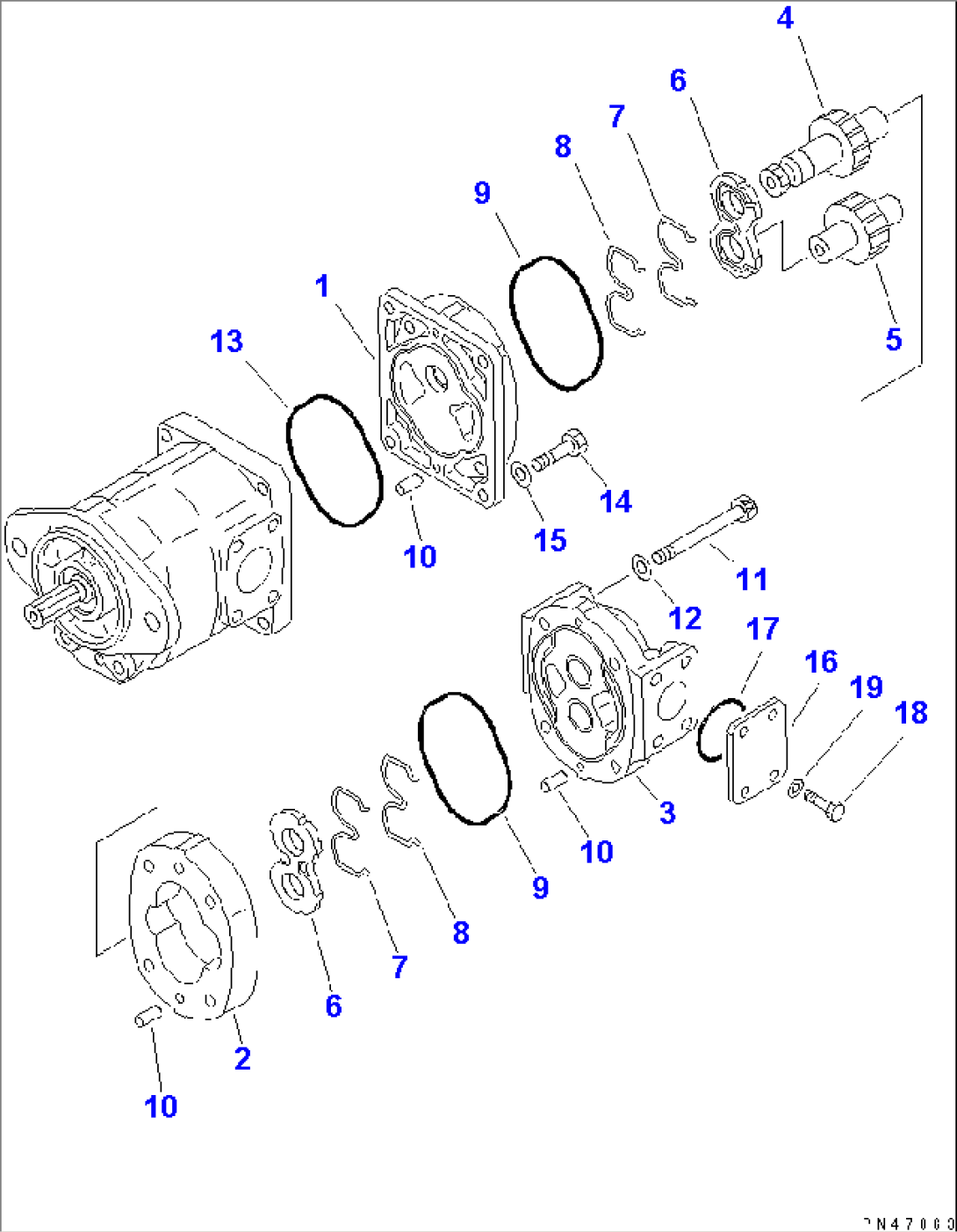

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 AND Y1600-02A0. | ||||
| 705-21-28050 | PUMP ASS'Y (SAL25) | 63001- | ||
| 1 | (\7\705-17-02510) | BRACKET | 63001- | |
| (\7\705-17-02353) | BUSHING | 63001- | ||
| 2 | (\7\705-18-28010) | CASE,GEAR | 63001- | |
| 3 | (\7\705-17-02122) | COVER ASS'Y | 63001- | |
| (\7\705-17-02353) | BUSHING | 63001- | ||
| 4 | (\7\705-18-28450) | GEAR,DRIVE | 63001- | |
| 5 | (\7\705-18-28511) | GEAR,DRIVEN | 63001- | |
| 6 | (\7\705-17-02631) | PLATE,SIDE | 63001- | |
| 7 | (\7\705-17-02440) | RING,BACK-UP | 63001- | |
| 8 | (\7\705-17-02472) | RING,SEAL | 63001- | |
| 9 | (\7\705-17-02381) | O-RING | 63001- | |
| 10 | (\7\04020-01024) | PIN,DOWEL | 63001- | |
| 11 | (\7\705-17-02730) | BOLT | 63001- | |
| 12 | (\7\01643-51232) | WASHER | 63001- | |
| 13 | 705-17-02480 | O-RING | 63001- | |
| 14 | 705-17-02374 | BOLT | 63001- | |
| 15 | 01643-51032 | WASHER | 63001- | |
| 16 | 705-17-02881 | PLATE | 63001- | |
| 17 | 07000-03038 | O-RING | 63001- | |
| 18 | 01010-51025 | BOLT | 63001- | |
| 19 | 01643-51032 | WASHER | 63001- |
