| Item | Part No. | Part Name | Qty | Serial No. |

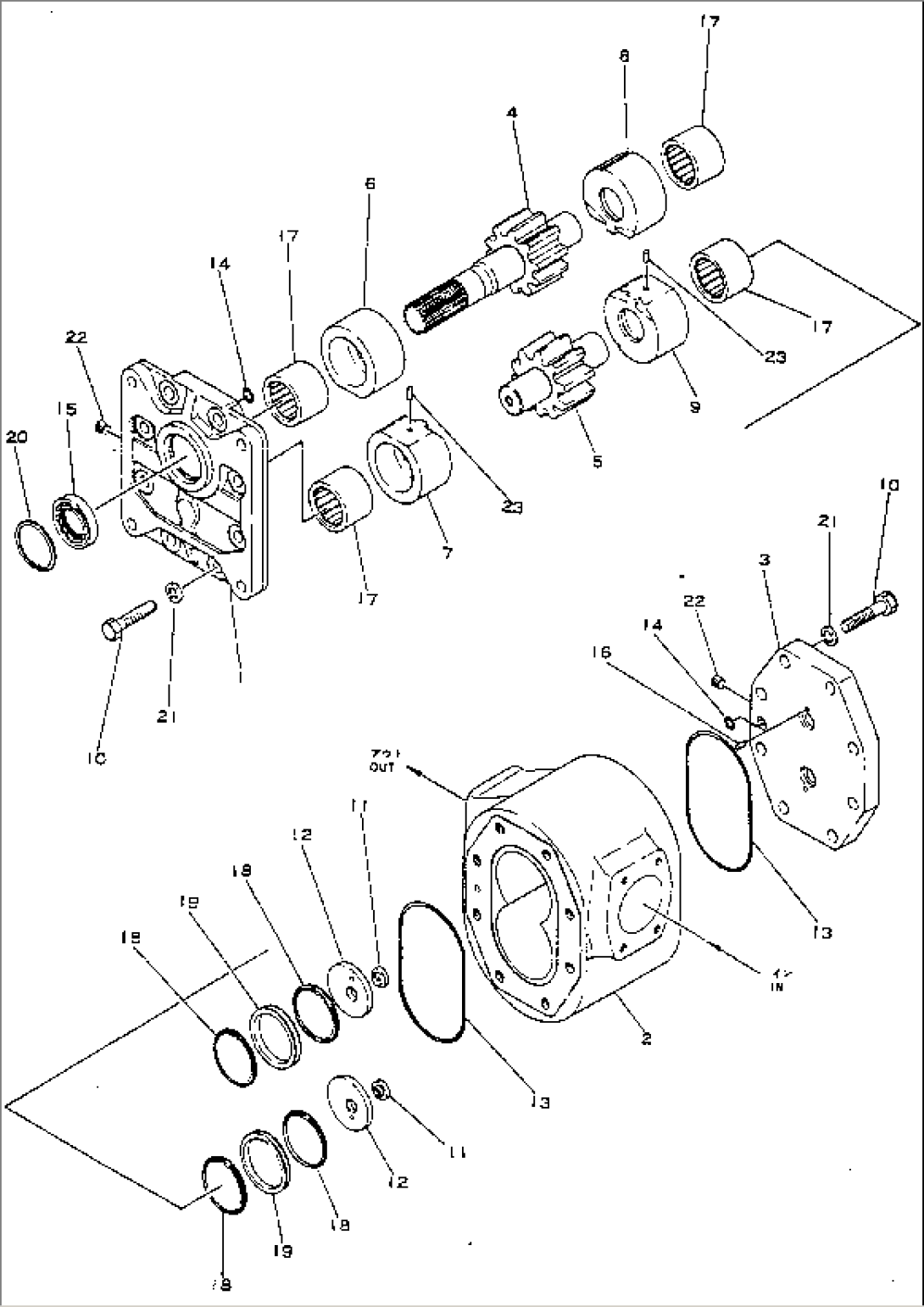

| 07439-66103 | PUMP ASS'Y,(PAL090-103) | 2001- | ||
| 1 | \6\ | BRACKET | 2001- | |
| 2 | \6\ | CASE | 2001- | |
| 3 | \6\ | COVER | 2001- | |
| 4 | \6\ | GEAR | 2001- | |
| 5 | \6\ | GEAR | 2001- | |
| 6 | \6\ | BUSHING | 2001- | |
| 7 | \6\ | BUSHING | 2001- | |
| 8 | \6\ | BUSHING | 2001- | |
| 9 | \6\ | BUSHING | 2001- | |
| 10 | \6\ | BOLT | 2001- | |
| 11 | \6\ | COLLAR | 2001- | |
| 12 | \6\ | PLATE | 2001- | |
| 13 | \6\ | O-RING | 2001- | |
| 14 | \6\ | O-RING | 2001- | |
| 15 | 07434-11162 | SEAL | 2001- | |
| 16 | \6\ | PIN | 2001- | |
| 17 | \6\ | BEARING | 2001- | |
| 18 | \6\ | RING | 2001- | |
| 19 | \6\ | U-RING | 2001- | |
| 20 | 04065-05020 | RING | 2001- | |
| 21 | \6\ | WASHER | 2001- | |
| 22 | \6\ | PLUG | 2001- | |
| 23 | \6\ | PIN | 2001- |
