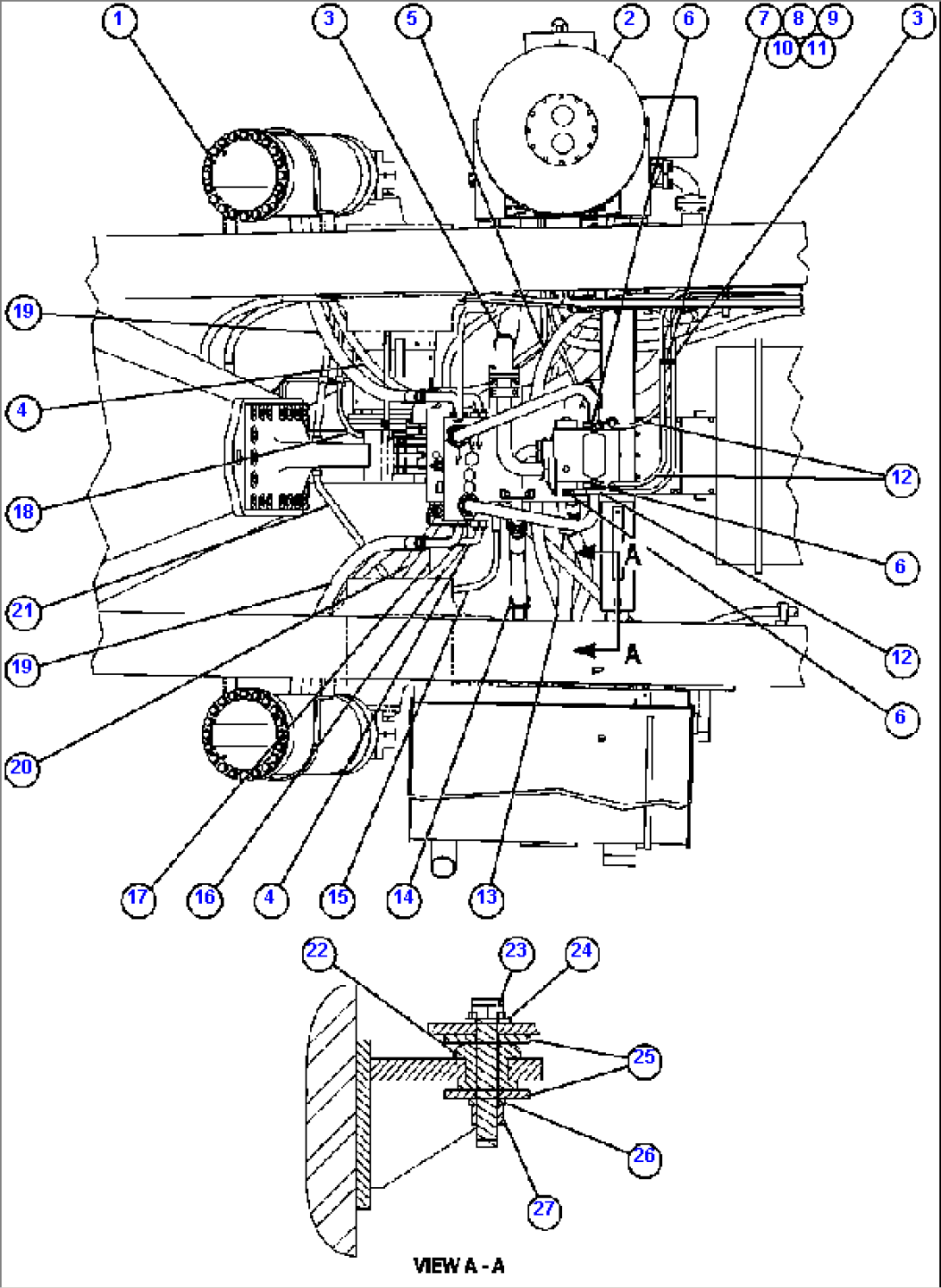

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EL4833 | HOIST CYLINDER ASSEMBLY (SEE INDEX) | ||
| 2 | EK4067 | TANK HYDRAULIC (SEE FIG 55621) | ||
| 3 | HA7340 | HOSE | ||
| 4 | HA2463 | HOSE | ||
| 5 | HA7508 | HOSE | ||
| 6 | WB0508 | FITTING, 37 DEG FLARE, 90 DEG ELBOW | ||
| 7 | TG2568 | CLAMP, VINYL - 7/8" | ||
| 8 | WA0720 | FLAT WASHER - 3/8" | ||
| 9 | C1521 | NUT - 3/8" - 16NC | ||
| 10 | C0312 | LOCKWASHER - 3/8" | ||
| 11 | C1602 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 12 | HA6502 | HOSE | ||
| 13 | HA7454 | HOSE | ||
| 14 | HA7339 | HOSE | ||
| 15 | HA1920 | HOSE | ||
| 16 | HA4755 | HOSE | ||
| 17 | HA7469 | HOSE | ||
| 18 | HA7514 | HOSE | ||
| 19 | HA7431 | HOSE | ||
| 20 | HA2137 | HOSE | ||
| 21 | HA2802 | HOSE | ||
| 22 | VG7000 | MOUNT, CENTER BONDED | ||
| 23 | C1637 | CAPSCREW - 5/8"- 11NC X 3 3/4" | ||
| 24 | WA0361 | FLAT WASHER - 5/8" | ||
| 25 | TD5915 | WASHER | ||
| 26 | C1541 | LOCKWASHER - 5/8" | ||
| 27 | C1525 | NUT - 5/8" - 11NC |
