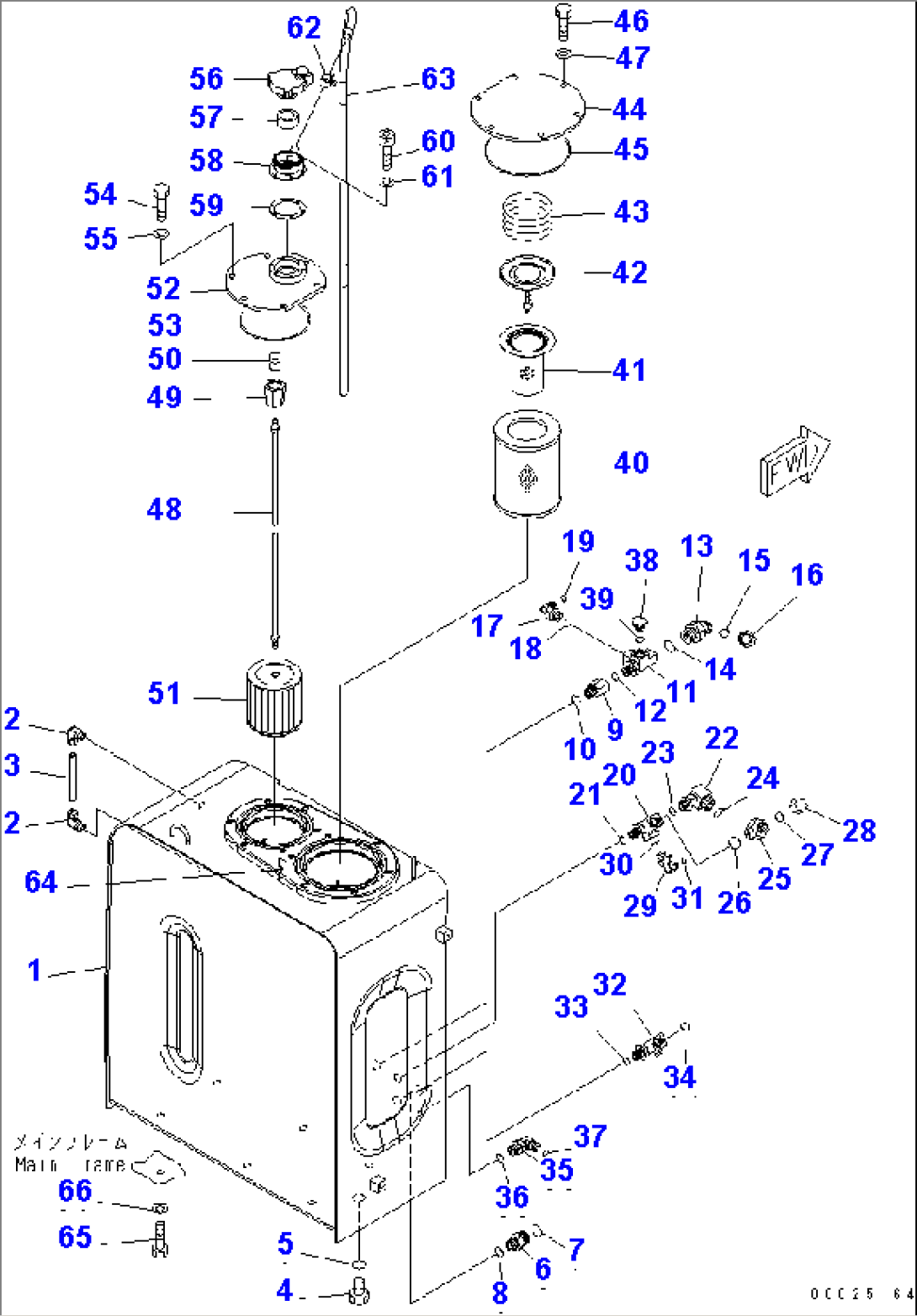

Item | Part No. | Part Name | Qty | Serial No. |
1 | 8240-60-1122 | TANK | 2001- | |
2 | 203-60-31100 | ELBOW ASS'Y | 2001- | |
3 | 203-60-31160 | TUBE | 2001- | |
4 | 07044-12412 | PLUG | 2001- | |
5 | 07002-02434 | O-RING | 2001- | |
6 | 02781-00628 | UNION | 2001- | |
7 | 02896-11018 | O-RING | 2001- | |
8 | 07002-12434 | O-RING | 2001- | |
9 | 8288-62-1170 | JOINT | 2001- | |
10 | 07002-12434 | O-RING | 2001- | |
11 | 20Y-62-15660 | ADAPTER | 2001- | |
12 | 07002-12034 | O-RING | 2001- | |
13 | 02783-10315 | ELBOW | 2001- | |
14 | 07002-12034 | O-RING | 2001- | |
15 | 02896-11009 | O-RING | 2001- | |
16 | 02789-10315 | PLUG | 2001- | |
17 | 02782-10315 | ELBOW | 2001- | |
18 | 07002-12034 | O-RING | 2001- | |
19 | 02896-11009 | O-RING | 2001- | |
20 | 20Y-62-15660 | ADAPTER | 2001- | |
21 | 07002-12034 | O-RING | 2001- | |
22 | 206-62-73440 | ELBOW | 2001- | |
23 | 07002-12034 | O-RING | 2001- | |
24 | 02896-11018 | O-RING | 2001- | |
25 | 20Y-62-43460 | NIPPLE | 2001- | |
26 | 07002-12034 | O-RING | 2001- | |
27 | 02896-11008 | O-RING | 2001- | |
28 | 02789-10210 | PLUG | 2001- | |
29 | 02782-10214 | ELBOW | 2001- | |
30 | 07002-12034 | O-RING | 2001- | |
31 | 02896-11008 | O-RING | 2001- | |
32 | 421-09-31770 | TEE | 2001- | |
33 | 07002-12034 | O-RING | 2001- | |
34 | 02896-11008 | O-RING | 2001- | |
35 | 02782-10210 | ELBOW | 2001- | |
36 | 07002-11423 | O-RING | 2001- | |
37 | 02896-11008 | O-RING | 2001- | |
38 | 07040-12012 | PLUG | 2001- | |
39 | 07002-12034 | O-RING | 2001- | |
40 | 20Y-60-31121 | ELEMENT | 2001- | |
41 | 20Y-60-31140 | STRAINER | 2001- | |
42 | 20Y-60-31131 | VALVE ASS'Y | 2001- | |
43 | 20Y-60-21240 | SPRING | 2001- | |
44 | 22U-60-21231 | COVER | 2001- | |
45 | 07000-15195 | O-RING | 2001- | |
46 | 01010-81230 | BOLT | 2001- | |
47 | 01643-31232 | WASHER | 2001- | |
20Y-60-31171 | STRAINER ASS'Y | 2001- | ||
48 | 207-60-61150 | ROD ASS'Y | 2001- | |
49 | 20Y-60-21320 | HOLDER | 2001- | |
50 | 12R-60-11230 | SPRING | 2001- | |
51 | 22B-60-11160 | STRAINER | 2001- | |
52 | 20Y-60-31161 | COVER | 2001- | |
53 | 07000-15160 | O-RING | 2001- | |
54 | 01010-81230 | BOLT | 2001- | |
55 | 01643-31232 | WASHER | 2001- | |
56 | 17A-60-11310 | CAP ASS'Y | 2001- | |
57 | 20Y-60-21470 | ELEMENT | 2001- | |
58 | 20Y-60-21460 | NECK | 2001- | |
59 | 20Y-60-21340 | GASKET | 2001- | |
60 | 01252-70516 | BOLT | 2001- | |
61 | 01601-20513 | WASHER | 2001- | |
62 | 07285-00155 | CLIP | 2001- | |
63 | 07270-61412 | TUBE | 2001- | |
64 | 205-00-73360 | PLATE¤ OPERATING | 2001- | |
65 | 01010-81630 | BOLT | 2001- | |
66 | 01643-31645 | WASHER | 2001- |
