| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 560-46-10721 | PIN | 1001- | |
| 2 | 565-46-12190 | LOCK | 1001- | |
| 3 | 04205-10830 | PIN | 1001- | |
| 4 | 01640-20816 | WASHER | .- | |
| 4 | \0\01641-20812 | WASHER | 1001-. | |
| 5 | 04050-12015 | PIN | 1001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd255 5 s/n 1001 up (applies to s/n 1601 up (saa6d125e 3))
- Hydraulic system
- Hydraulic tank and valve (body safty pin)
Поиск по каталогу

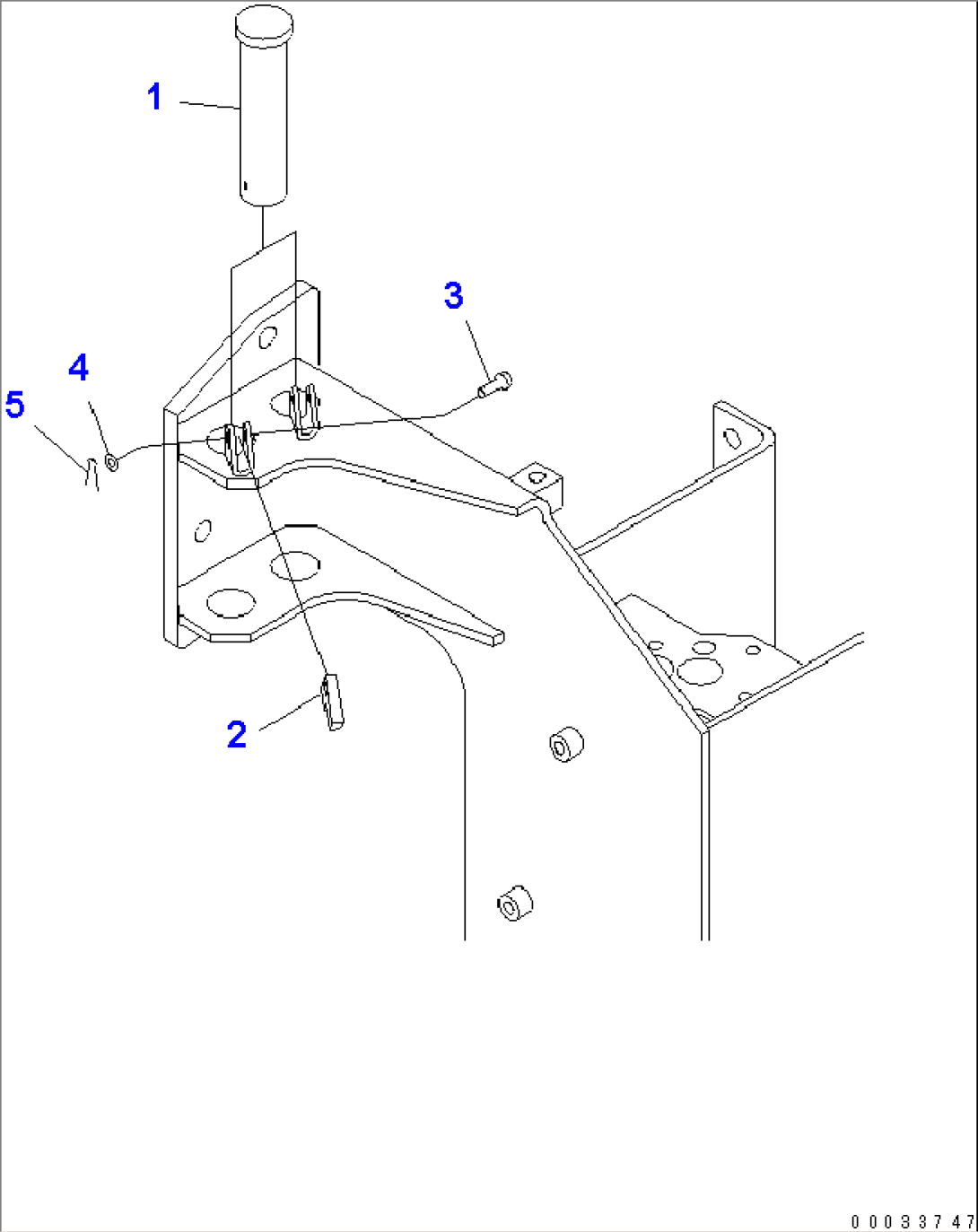

HYDRAULIC TANK AND VALVE (BODY SAFTY PIN)
