| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07260-24113 | HOSE | 1122- | |
| 2 | 07281-00549 | CLAMP | 1122- | |
| 3 | 6040-81-9210 | AIR CLEANER ASS'Y | 1122- | |
| 3 | 6003002-1-20 | ELEMENT | 1122- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm350 1 s/n 1001 up
- Hydraulic system
- Hydraulic tank ass'y (air cleaner) (for sand protection)(#1122 )
Поиск по каталогу

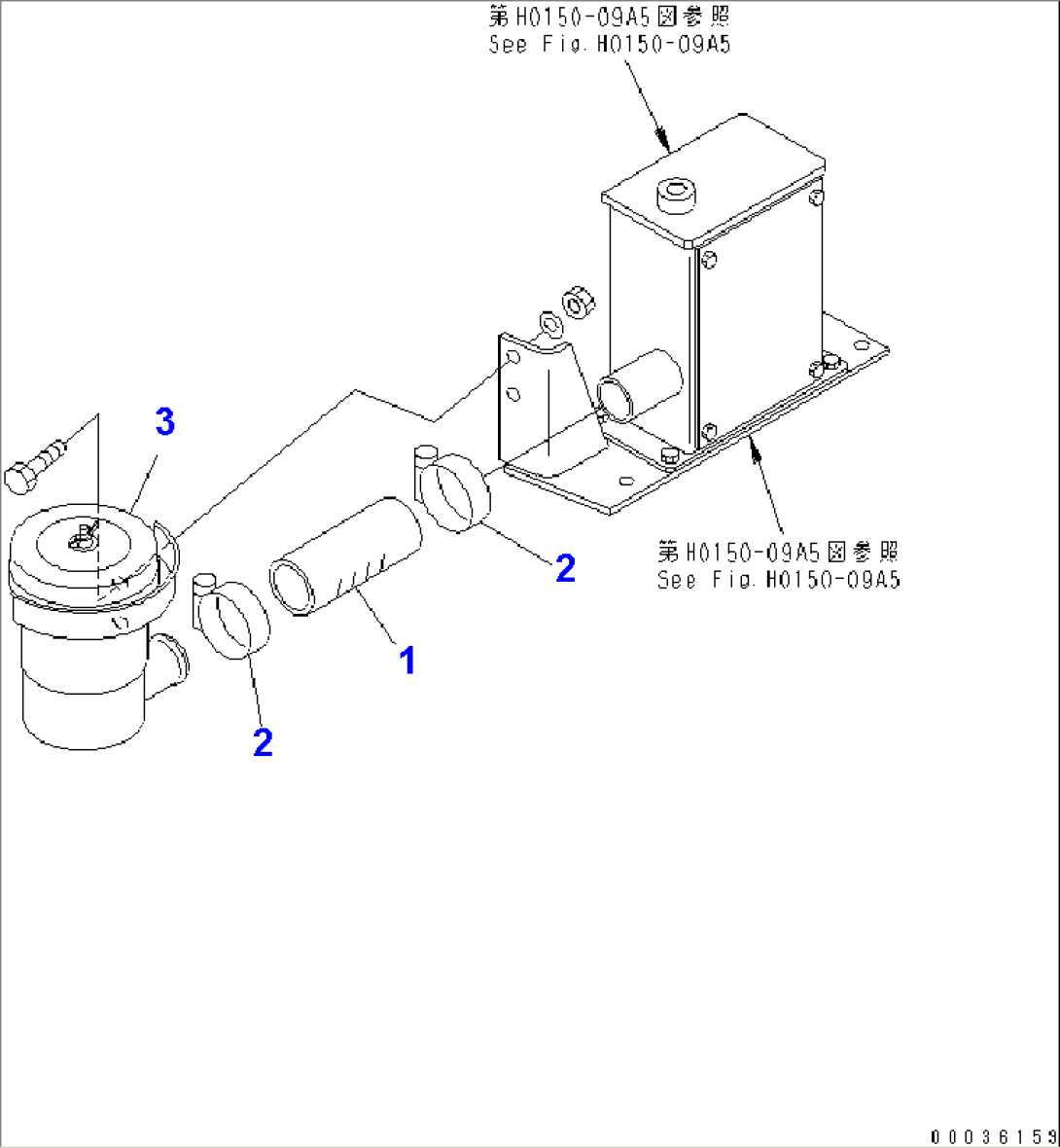

HYDRAULIC TANK ASS'Y (AIR CLEANER) (FOR SAND PROTECTION)(#1122-)
