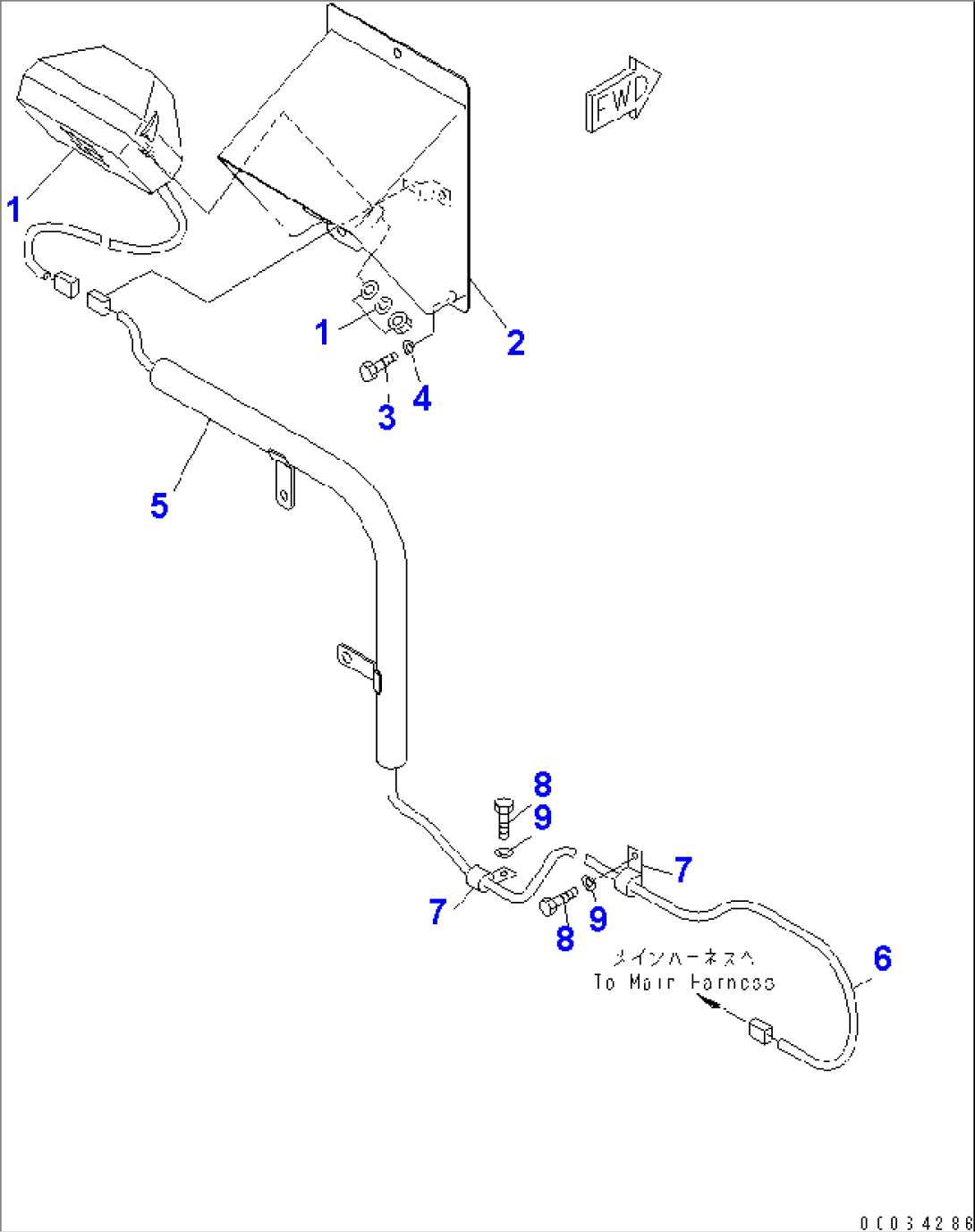

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-23310 | LAMP ASS'Y | 7001-7011 | |
| 1 | 421-06-23340 | LENS | 7001-7011 | |
| 1 | 421-06-23330 | BULB, 70W,24V | 7001-7011 | |
| 1 | 01582-11411 | NUT | 7001-7011 | |
| 1 | 01602-21442 | WASHER,SPRING | 7001-7011 | |
| 1 | 01643-31445 | WASHER | 7001-7011 | |
| 1 | 08056-00271 | CONNECTOR | 7001-7011 | |
| 2 | 56D-85-21120 | COVER | 7001-7011 | |
| 3 | 01010-81016 | BOLT | 7001-7011 | |
| 4 | 01643-31032 | WASHER | 7001-7011 | |
| 5 | 56B-85-21131 | BRACKET | 7001-7011 | |
| 6 | 56B-85-21421 | WIRING HARNESS | 7001-7011 | |
| 7 | 08036-01014 | CLIP | 7001-7011 | |
| 8 | 01010-81016 | BOLT | 7001-7011 | |
| 9 | 01643-31032 | WASHER | 7001-7011 |
