| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-A2201 | GUARD | A37001- | |
| 2 | 01010-81230 | BOLT | A37001- | |
| 3 | 01643-31232 | WASHER | A37001- | |
| 4 | 421-60-A2210 | GUARD | A37001- | |
| 5 | 01010-81030 | BOLT | A37001- | |
| 6 | 01643-31032 | WASHER | A37001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa480 5l s/n a37001 up
- Hydraulic system
- Hydraulic tank (for waste handler)
Поиск по каталогу

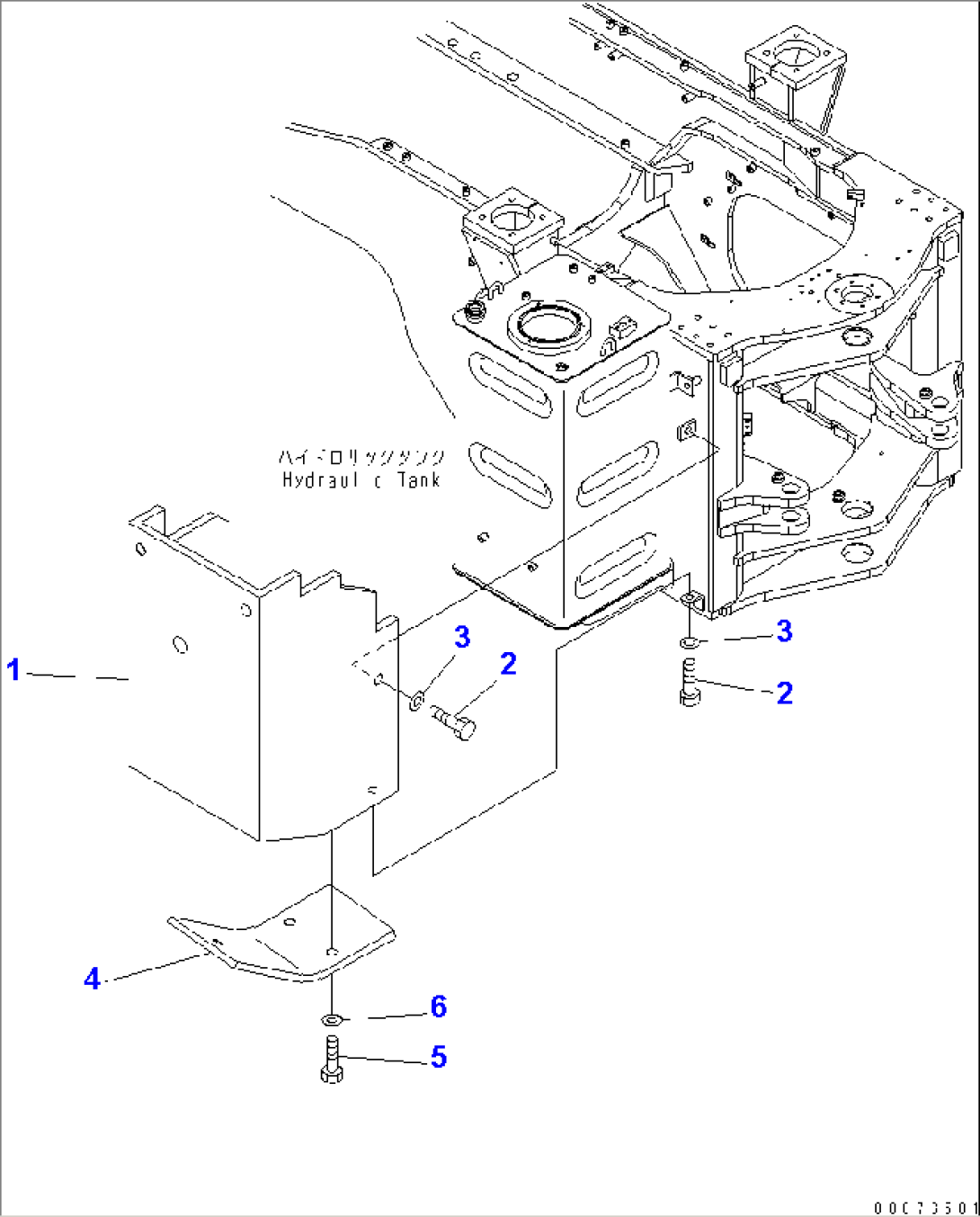

HYDRAULIC TANK (FOR WASTE HANDLER)
