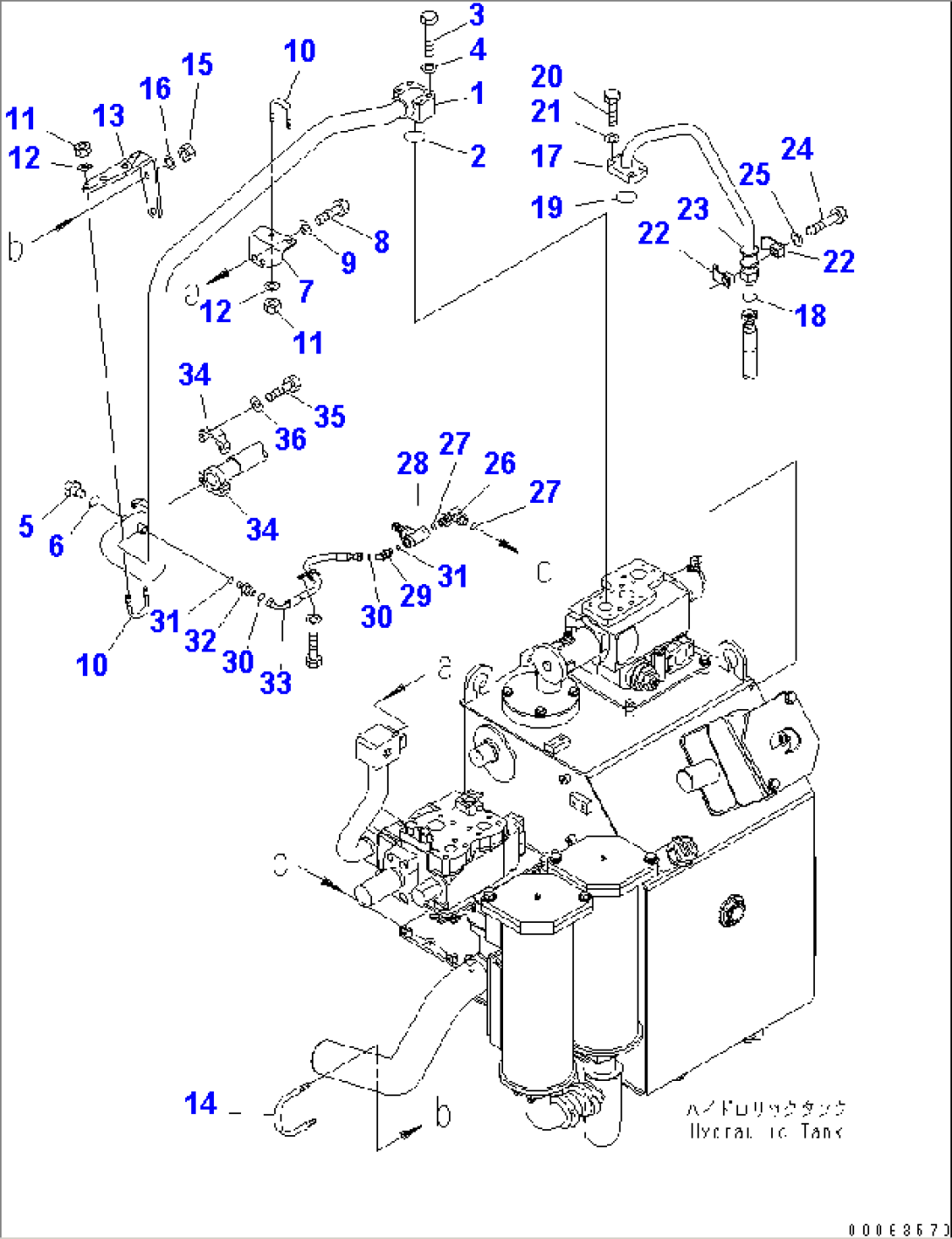

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-61-83241 | TUBE | 7169- | |
| 2 | 07000-F3045 | O-RING | 7169- | |
| 3 | 01010-81275 | BOLT | 7169- | |
| 4 | 01643-31232 | WASHER | 7169- | |
| 5 | 07040-11007 | PLUG | 7169- | |
| 6 | 07002-21023 | O-RING | 7169- | |
| 7 | 561-61-83370 | BRACKET | 7169- | |
| 8 | 01010-81225 | BOLT | 7169- | |
| 9 | 01643-31232 | WASHER | 7169- | |
| 10 | 07283-34346 | CLIP | 7169- | |
| 11 | 01597-01009 | NUT | 7169- | |
| 12 | 01643-31032 | WASHER | 7169- | |
| 13 | 561-61-83382 | BRACKET | 7169- | |
| 14 | 07283-38973 | CLIP | 7169- | |
| 15 | 01597-01211 | NUT | 7169- | |
| 16 | 01643-31232 | WASHER | 7169- | |
| 17 | 561-61-83341 | TUBE | 7169- | |
| 18 | 02896-21018 | O-RING | 7169- | |
| 19 | 07000-F3048 | O-RING | 7169- | |
| 20 | 01010-81240 | BOLT | 7169- | |
| 21 | 01643-31232 | WASHER | 7169- | |
| 22 | 07094-10518 | CLAMP | 7169- | |
| 23 | 07095-00526 | CUSHION | 7169- | |
| 24 | 01010-81270 | BOLT | 7169- | |
| 25 | 01643-31232 | WASHER | 7169- | |
| 26 | 14X-04-21630 | ELBOW | 7169- | |
| 27 | 07002-22034 | O-RING | 7169- | |
| 28 | 421-43-37362 | VALVE | 7169- | |
| 29 | 02783-10210 | ELBOW | 7169- | |
| 30 | 07002-21423 | O-RING | 7169- | |
| 31 | 02896-21008 | O-RING | 7169- | |
| 32 | 02781-0021D | UNION | 7169- | |
| 33 | 02766-002A5 | HOSE | 7169- | |
| 34 | 07371-31465 | FLANGE | 7169- | |
| 35 | 07372-21240 | BOLT | 7169- | |
| 36 | 01643-51232 | WASHER | 7169- |
