| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-61-81461 | BRACKET | 15025- | |
| 2 | 01010-81225 | BOLT | 15025- | |
| 3 | 01643-31232 | WASHER | 15025- | |
| 4 | 07283-33442 | CLIP | 15025- | |
| 5 | 01597-01009 | NUT | 15025- | |
| 6 | 01643-31032 | WASHER | 15025- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd605 7r s/n 15001 15351 (w/o egr)
- Hydraulic system
- Hydraulic tank line (transmission piping related parts)(#15025 )
Поиск по каталогу

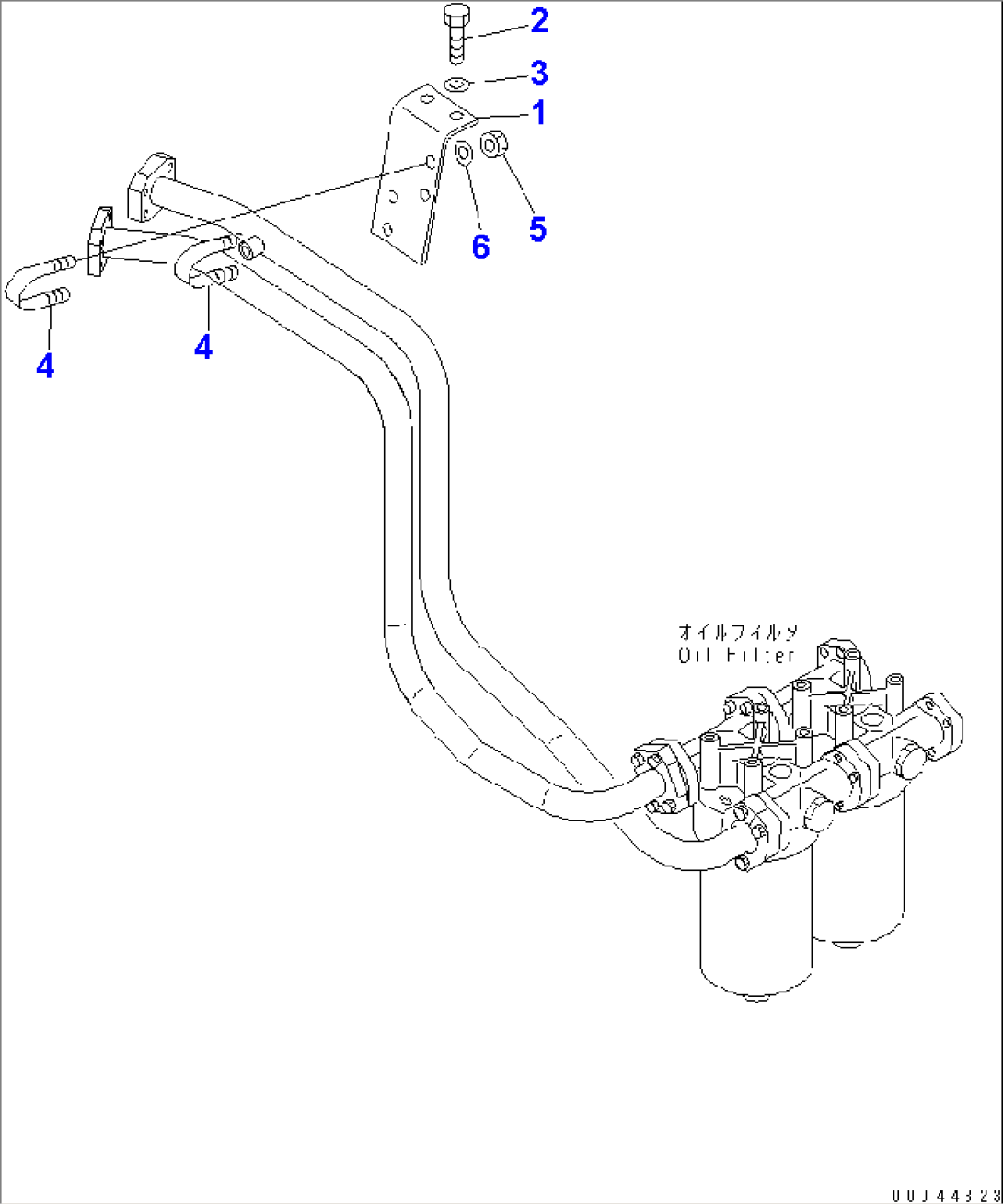

HYDRAULIC TANK LINE (TRANSMISSION PIPING RELATED PARTS)(#15025-)
