| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | C1603 | CAPSCREW - 3/8" - 16NC X 1 1/4" | ||
| 2 | C0312 | LOCKWASHER - 3/8" | ||
| 3 | C1547 | FLAT WASHER - 3/8" | ||
| 4 | EL0588 | BAR | ||
| 5 | TZ3104 | MUD FLAP | ||
| 6 | EL0247 | BRACKET |
- Главная
- Каталог запчастей
- Самосвалы
- Afe63 a 960e 1k s/n a50003 a50008
- Hydraulic system
- Hydraulic tank mud flap
Поиск по каталогу

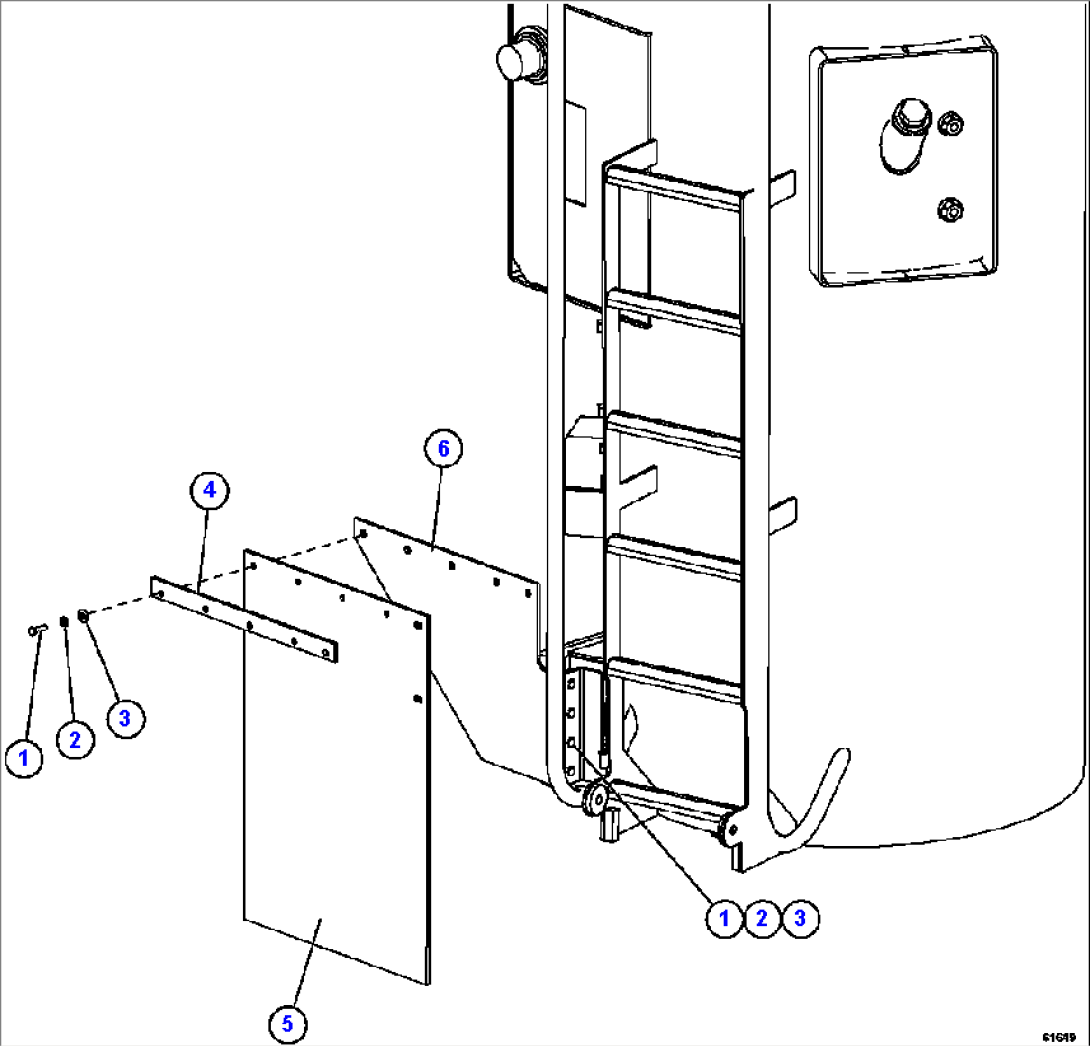

HYDRAULIC TANK MUD FLAP
